Extraflame DIVINA Use And Maintenance Manual

16

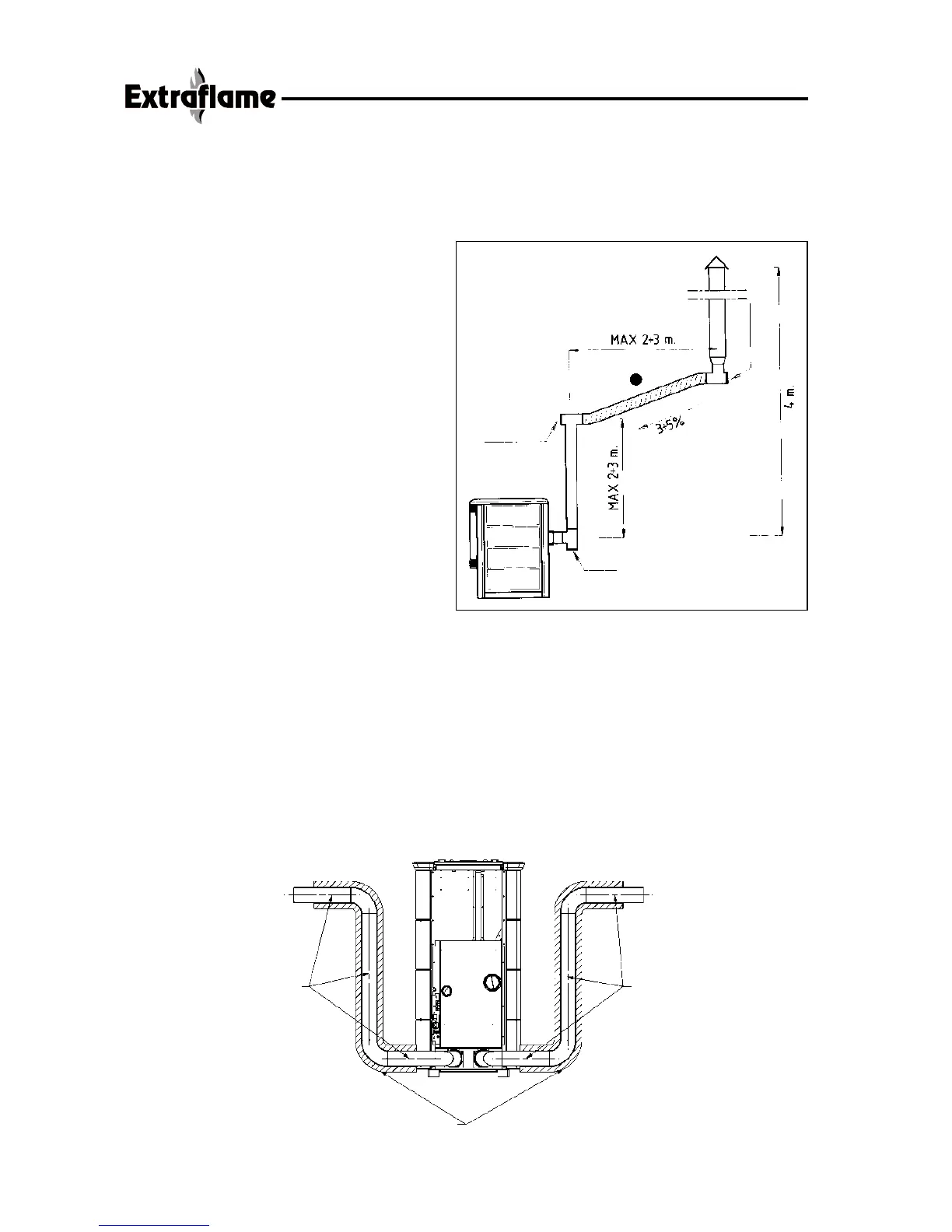

If the fume flue is installed in a fixed way , inspections should be provided for internal
cleaning purposes (ashes), especially in the horizontal sections.
NOTE:
ALL SECTIONS OF THE FUME FLUE MUST
BE EASY TO INSPECT AND TO REMOVE
TO ALLOW THE INTERNAL CLEANING.
( SEE
•)
(SEE FIG. 4 AND 5)
6.4 Electrical connections
The stove is supplied with a power cable
which must be connected to a 230 V /50
Hz socket.
The power absorption is indicated in
chapter 2 (technical specifications).
Make sure that the cable does not come
into contact with the hot surfaces of the
stove.
6.5 CANALISATION DIVINA PLUS
The model DIVINA PLUS is equipped with 2 pipes situated on the back of the stove which
allow the canalisation of the heat issued by the stove. As you can see in the photo here below,
we suggest to make the canalisation by using pipes with the following characteristics:
• Internal diameter 80 mm
• Insulated pipes, that is thermal insulation
• The pipe connection to each nozzle , must not be longer than 2 mt.
fig. 5
Inspection
Inspection
Slope
Height over
Inspection
MAX PIPE LENGTH
2 MT
MAX PIPE LENGTH
2 MT
INSULATING
MATERIAL
