8 Access Point Installation Procedures
Access Point Installation Procedures
Theseproceduresdescribehowtoattachthe AP3935toadropceiling(flatorprotruded),andhow
tomounttheAPtoawall.
Mounting the AP3935 to a Drop Ceiling
TomounttheAPtoadropceiling,usethemountingbracketthatisprovidedwiththeAP.
1. Slidetheceilingmountbracketbaseintothe metalbase.Thelockingtabfitsintothegroovein
thefins.SeeFigure 2‐1.

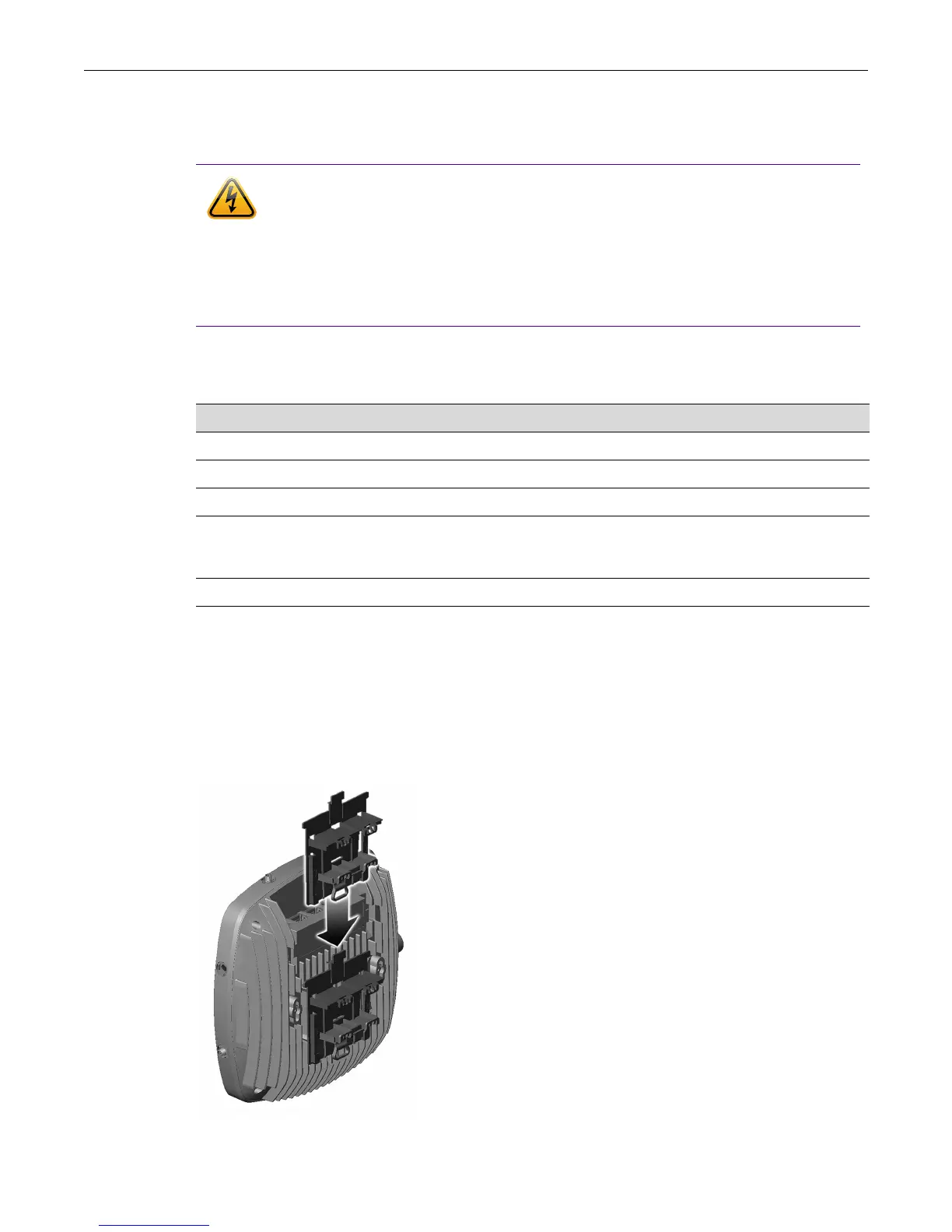

Figure 2-1 Attaching Mount Bracket to the Access Point
WARNING
Electrical Hazard: Only qualified personnel should install or service this unit.
Riesgo Electrico: Nada mas personal capacitado debe de instalar o darle servicio a esta
unida.
Elektrischer Gefahrenhinweis: Installationen oder Servicearbeiten sollten nur durch
ausgebildetes und qualifiziertes Personal vorgenommen werden
.
For information about... Refer to page...
Mounting the AP3935 to a Drop Ceiling 8
Mounting the AP3935 to a Wall 9
LAN/Console Connections 11
The AP3935 has 2 LAN ports and a Console port. Power is provided
through two Ethernet ports (LAN ports). This is the preferred method of
powering the AP on ceiling and wall installations.
11
Connecting an External DC Power Supply to the AP3935 11
