Extron electronics MediaLink MLC Plus 50 User Manual

MLC Plus 50/100/200 Series • Introduction 7
L R
POWER
12V
0.7A MAX
AUDIO
SIG LINK
DTP IN
OUTPUTS
XTP
PWR
XTP PWR
100-240V
50/60 Hz
---A MAX
100-240V ~ -- A MAX
1
2
CONFIGURABLE
HDMI
HDMI
5
6
7
8
C
RS-232 IR
RS-232 IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
A
B
3
4
INPUTS
OUTPUTS
Tx Rx
RS-232
G
LAN
70V - 100W
RESET
AUDIO INPUTS OUTPUTS
REMOTE
L L1 R R
L 2
R
3
CLASS 2 WIRING
L 4
R
L 5 R
+48V
+48V
1 2
L R
VARIABLE
IN1608 MA
2
MIC/LINE
L 6
R
SIG LINK
DTP IN
SIG LINK
DTP IN
SIG LINK
DTP OUT
50/60 Hz
RS-232 IR
OVER DTP
OVER DTP
OVER DTP
AMPLIFIED OUTPUT
DTP HDMI 330 Rx
OVER DTP
RS-232
IR
Tx Rx Tx RxG
WiFi
1 2 3 4
STANDBY/ON
PQLS HDMI OPEN/CLOSE FL OFF
USB
DISPLAY
VOLUME
Extron
ON OFF
PC
VGA
DOC
CAM
LAPTOP
HDMI
SCREEN
UP
MUTE
SCREEN
DOWN
Ethernet
IR to Blu-ray
RS-232 over DTP
Relay to Screen Control
Ethernet/PoE
Ethernet
Ethernet
Audio
RS-232
Screen Control
Projector
PC
Laptop
Blu-ray Player
Extron
XTP PI 100
XTP Power
Injector
Extron
MLC Plus 200
MediaLink Plus
Controller
TCP/IP
Network
Document
Camera
Extron
FF 220T
Ceiling Speakers
Extron
DTP HDMI 330 Rx
Receiver
CATx Cable
up to 330' (100 m)
VGA
HDMI HDMI
HDMI
Extron
IN1608 MA
Switcher
with DTP
Extension

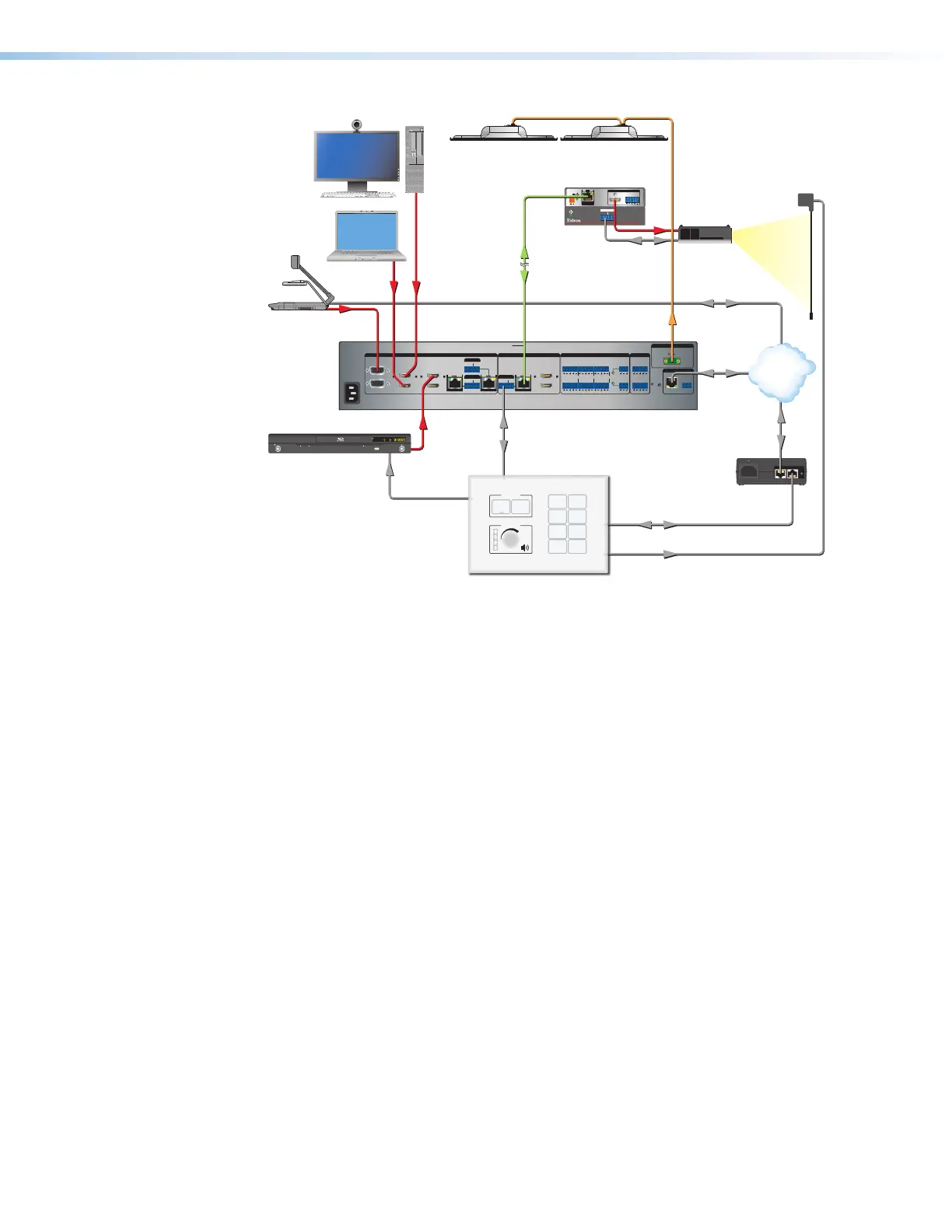

Figure 8. An MLCPlus200 Application
Device Control
The MLCPlus must be configured in one of the following ways before it can send
commands to a projector, display, or other device:
• An IR, RS-232, or Ethernet driver file can be downloaded from the extensive Extron
driver selection from the Extron website (www.extron.com/download/index.aspx).
The driver is saved to a folder and commands from the driver are incorporated into the
GC configuration file for the controller. The configuration file is built and uploaded to the
MLCPlus via GC.
• If a driver is not already available, RS-232 or Ethernet command strings can be
entered directly from a host computer using GlobalConfigurator. These can then be
incorporated into controls within the GC project.
See the Global Configurator Help file (which comes with the software) for details on setting
up the MLCPlus and for downloading device control commands.
About Global Configurator (with GCProfessional and GCPlus Modes)
Global Configurator is the software tool for network setup and configuration of an
MLCPlus50/100/200 Series controller. Global Configurator:
• Loads device drivers for monitoring the status of and controlling devices within the AV
system.
• Creates the configuration containing all the settings for the controller and the products
with which it interacts in the AV system.
• IR commands can be entered directly from an IR remote
control through IR learning via GC to create a driver that
the controller can use. IR learning is seldom needed, but
it is convenient for installing new or updated commands
into the MLCPlus50/100/200Series in the field in the rare
cases when a driver is not already available from Extron.
