Page 29 of 77

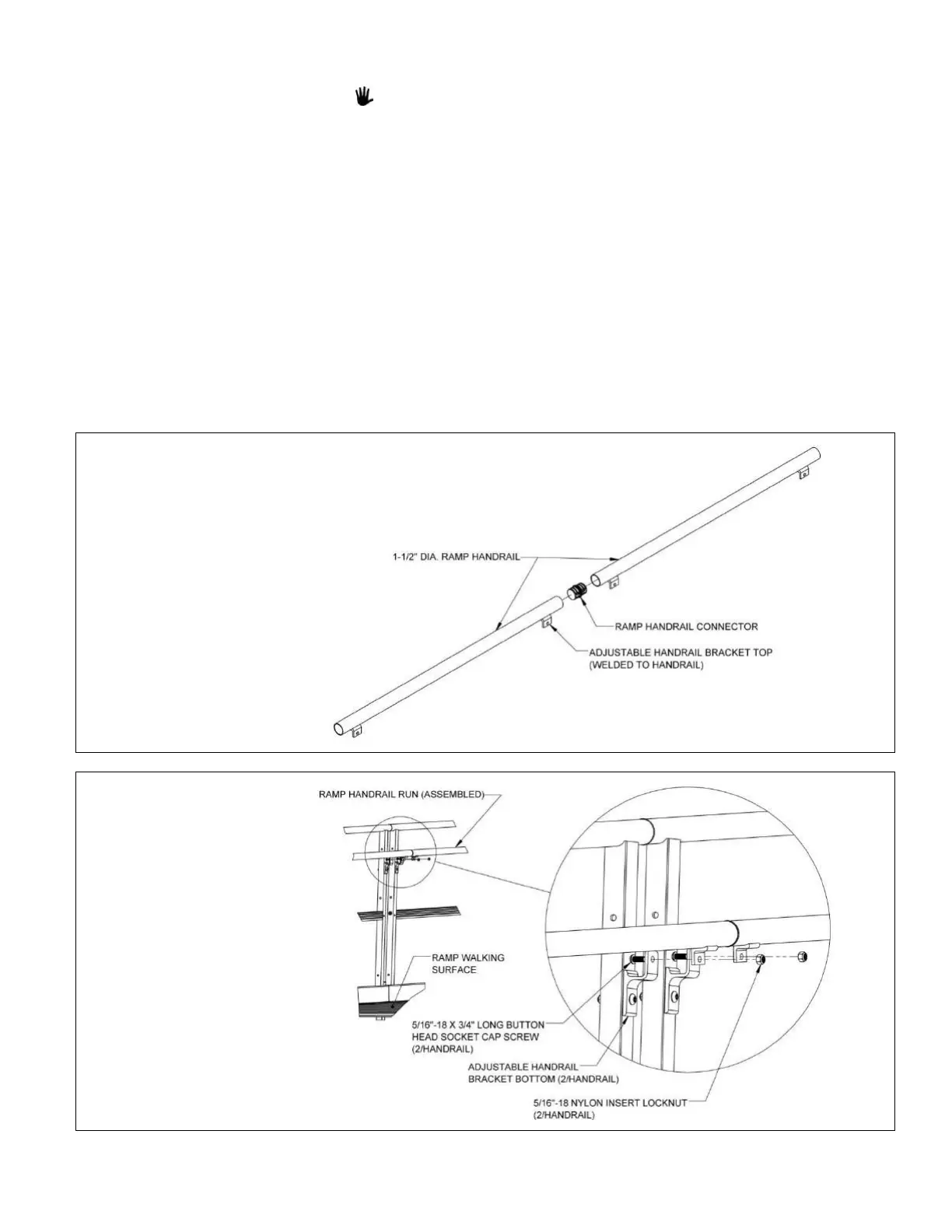

4.4.4.4. Slide the handrail connector into one end of the 1-1/2” diameter ramp
handrail (FIG. 4.6).
If handrail connector does not fit in the tube, use pliers to lightly
compress handrail connector while sliding into 1-1/2” diameter top rail.
4.4.4.5. Slide the next ramp handrail over the handrail connector until fully engaged
and align the adjustable handrail bracket tops. Compress the handrail
connector and/or use a rubber mallet as needed (FIG. 4.6).
4.4.4.6. Connect all ramp handrails for one side of the ramp run in the order which
matches the ramp lengths, then connect ramp handrails for the opposite side
in the same manner.
4.4.4.7. Attach assembled ramp handrail run to adjustable handrail bracket bottoms
using 5/16”-18 x 3/4” socket head cap screws and 5/16”-18 nylon insert
locknuts. Position ramp handrail run and the fasteners as shown (FIG. 4.7).
4.4.4.8. Align the ramp handrail runs so that they are parallel to the ramp walking
surface and the adjustable handrail bracket bottoms are parallel to the frame
posts, then tighten all the fasteners securely.
4.4.4.9. Repeat for all ramp handrail runs in the system, including the lower (child)
handrails, if present.
