5.5.7. Locate a closure bracket and attach the short leg of the bracket to the Frame post with a

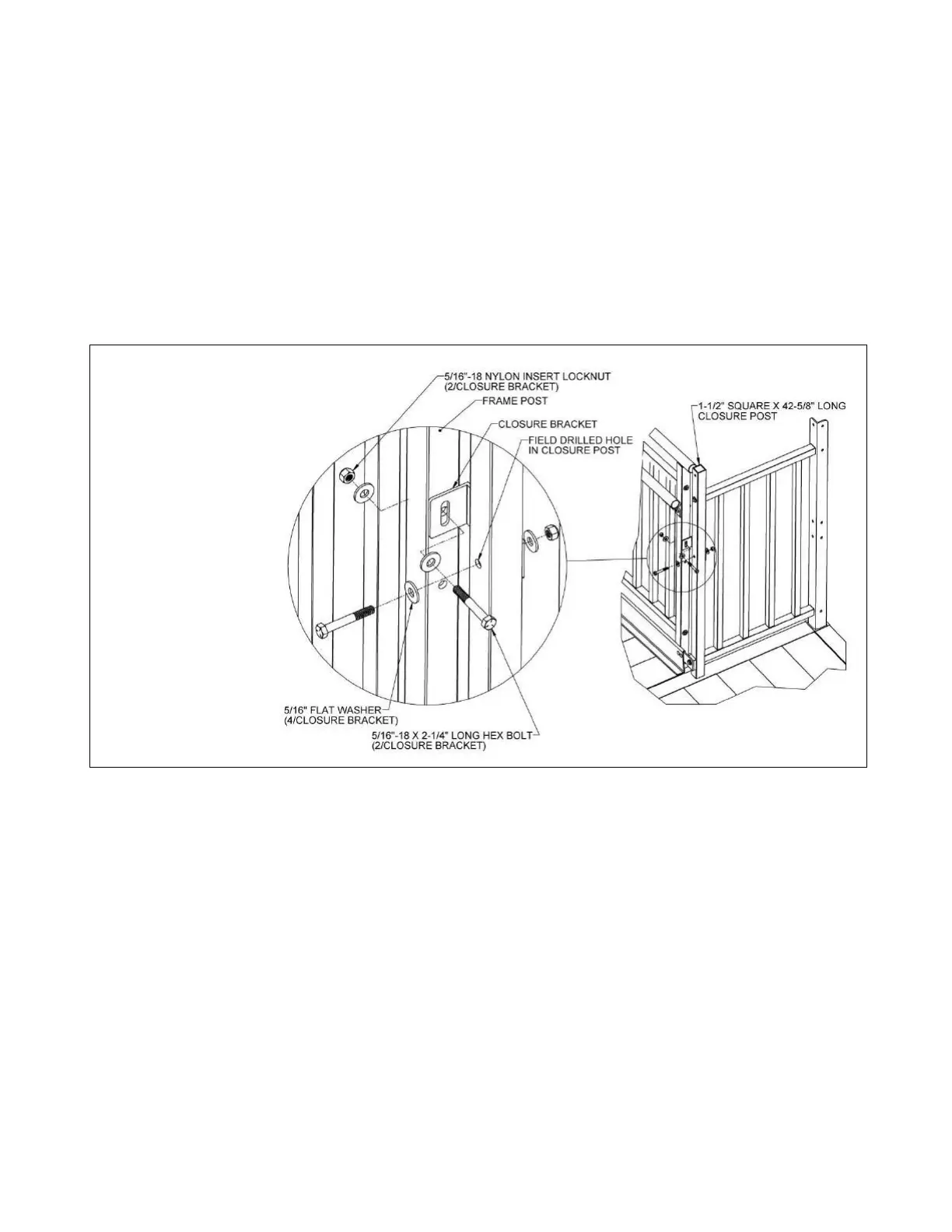

5/16″-18 x 2-1/4″ hex bolt, 5/16” flat washers, and 5/16″-18 nylon insert locknut oriented
as shown (FIG. 5.15). Use the uppermost hole available or field drill at a higher location
on the post if desired.
5.5.8. Orient the bracket so the long leg is on the same side of the closure post as the Picketed
Guard Closure and in contact with the closure post, then tighten lightly (enough to hold
the bracket against the post but still allow it to rotate).
5.5.9. Drill a 5/16” or 11/32” hole through the 1-1/2” square x 42-5/8” long closure post at the
slot in the long leg of the closure bracket (FIG. 5.15).
5.5.10. Attach the long leg of the closure bracket to the closure post with a 5/16″-18 x 2-1/4″
hex bolt, 5/16” flat washers, and 5/16″-18 nylon insert locknut oriented as shown (FIG.
5.15).
5.5.11. Tighten all fasteners securely.
