EZ-ACCESS TITAN Assembly Manual
4
of 1
of 1 rating
77 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Page 7 of
77

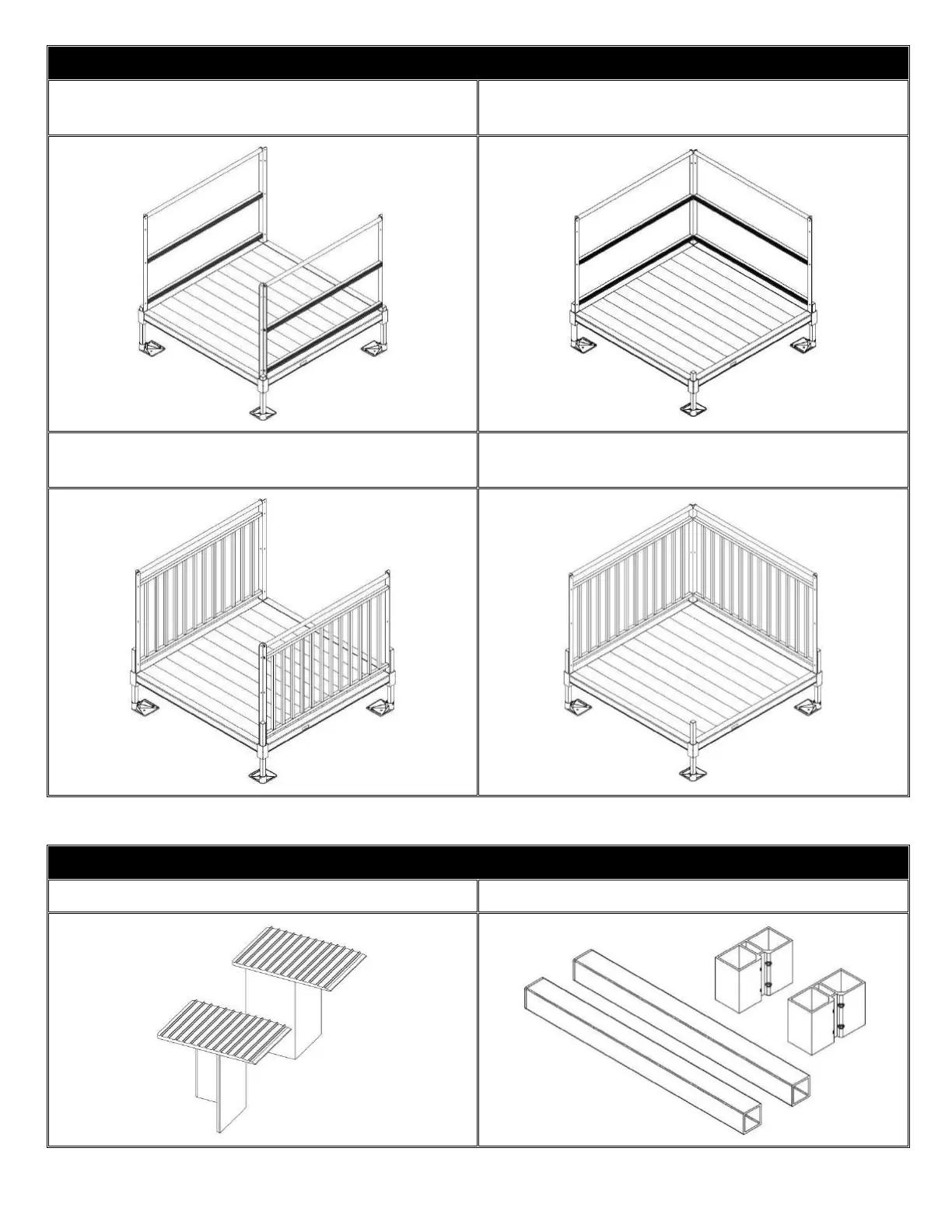

PLATFORMS AND PL
ATFORM HAND
RAIL OPTIONS
PLATFORM WITH
TWO-LINE RAIL
(STRAIGHT CO
NFIGURATION)*
PLATFORM WITH
TWO-LINE RAIL
(TURN CONFI
GURATION)*
PLATFORM WITH
PICKETED GUARDS
(STRAIGHT CO
NFIGURATION)*
PLATFORM WITH
PICKETED GUARDS
(TURN CONFI
GURATION)*
*FEET & LEGS SHOW
N FOR CONTINU
ITY, NOT INCLUDED
KEY PLATFORM COM
PONENTS
TCPCPR
–
CORNER
POCKET COVER PA
IR
TPPC
–
CONNECTO
R PLATFORM TO
PLATFORM
6
8
Table of Contents
Default Chapter
4
Table of Contents
4
Section 1: Basic System Components
5
Section 2: Platforms
10
Install Platforms
10
Install Support Tubes and Feet and Adjust Platform Height
11
Connect Two Platforms Together
12
Install Cross Brace - Platforms
14
Creating Decks from Platforms
15
Section 3: Ramps
16
Connect Ramp Sections
16
Install Ramps on Platforms
17
Attach Support Legs to Ramps
18
Install Cross Brace - Ramps
21
Install a Single Ramp or Ramp Run to an Existing Structure
22
Anchor Ramp Transition Plate
22
Angle Ramps with Respect to Platforms, Porches, or Decks
23
Section 4: Handrails
24
Frames
24
Starter Frame
26
Anchoring Handrails and Code Compliancy
26
Ramp Handrails
28
Field Convert Ramp Two-Line Rail to a Picketed Guard
30
Assemble Platform Two-Line Rails and Picketed Guards
31
Install Platform Two-Line Rails and Picketed Guards
33
Convert Two-Line Platform Handrails to Picketed Guards
34
Section 5: Closures
35
Two-Line Rail Barrier and Midrails
35
Two-Line Rail Top Rail
40
Picketed Guard Closure
42
Closure Handrails
46
Two-Line Rail Turn Back Closure
48
Picketed Guard Turn Back Closure
54
Two-Line Rail Corner Turn
60
Picketed Guard Corner Turn
66
Section 6: Final Platform/Ramp Steps and Checks
67
Secure Ramps to Platforms
67
Attach Frame Post to Platform Post
68
Install Ramp Handrail End Loops
69
Install Ramp Handrail End Loops with Lower (Child) Handrail
70
Install Platform Leg Inserts
71
Install Platform Angle Post Spacer
71
Install Frame Top Rail End Plugs and Ramp Corner Protectors
72
Touch-Up Handrails
72
Final Checks
73
Section 7: Optional Equipment
74
Ramp Support
74
Ramp Transition Plate
75
Single Bridge Plate
75
Section 8: Maintenance
76
Periodic Maintenance
76
Section 9: Deicing
76
