Page 37 of 44
Run RMC Software

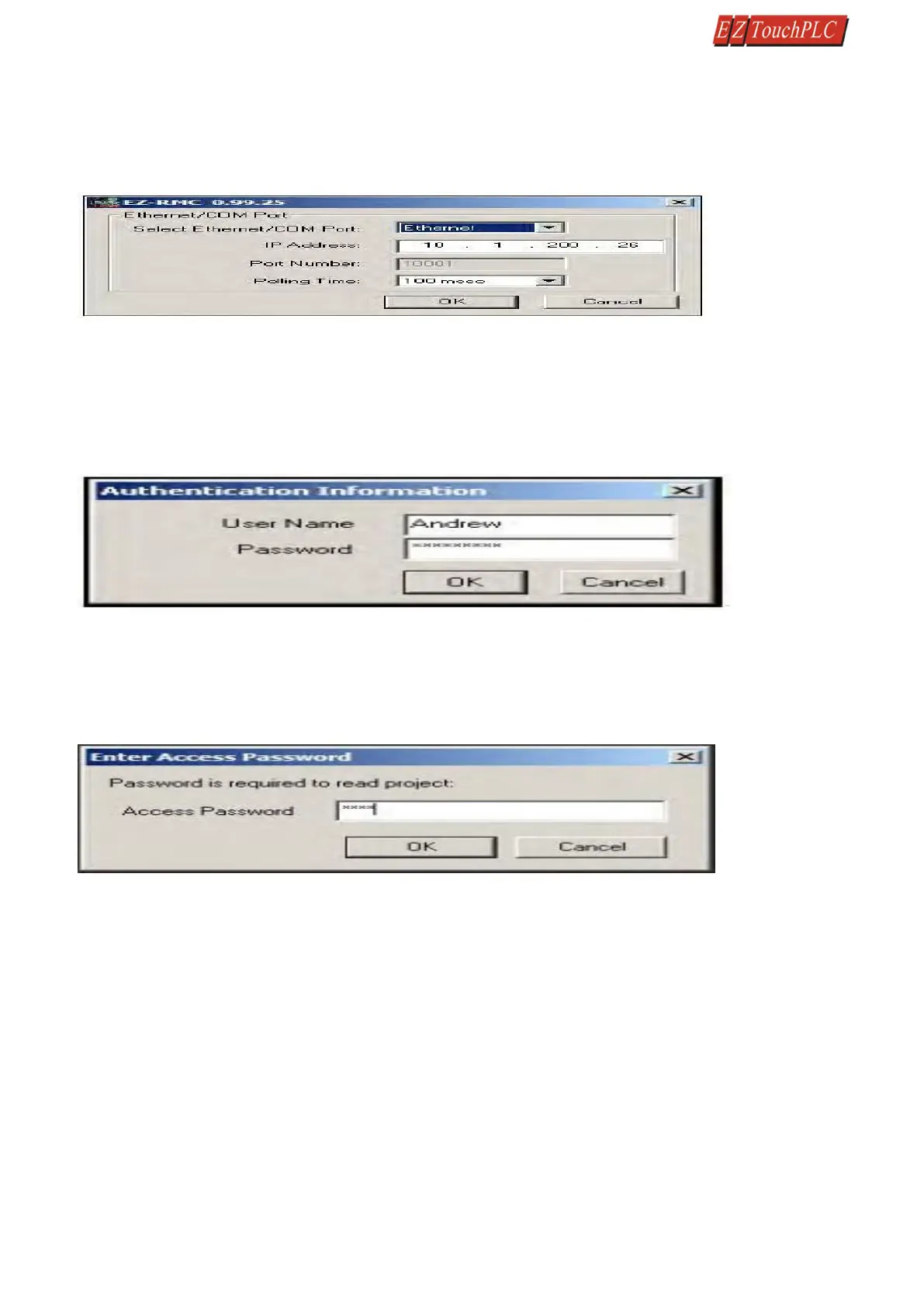

To access the panel over Ethernet, you need to install and run the EZ-RMC software on your PC. Once you run the
software, you will see the following EZ-RMC dialog.
Select Parameters
Select the communication port, IP Address if Ethernet is selected, and Polling Time. The IP Address is the IP Address
of the RMC card you setup earlier. It is recommended to keep polling time as high as possible. Polling time
determines how often RMC software would read information from the panel. A lower polling time may impact the
performance of the panel.
Remote User
Clicking OK will prompt you to provide user name and password, if at least one remote user has been set up. Please
note that both user name and passwords are case sensitive. If no remote users were defined, this dialog box would
not appear.
Access Password
Projects requiring an Access Password will need the access password entered before the user information. You
must have a correct Access Password in order to communicate with the panel. This is project level password set
during screen design under Setup > Panel Attribute > General Tab.
