See section .4 for the 9
setting of cooling start
parameters
8. Setting of parameters
8.3 Level “Extended cooling parameters” (P parameters)

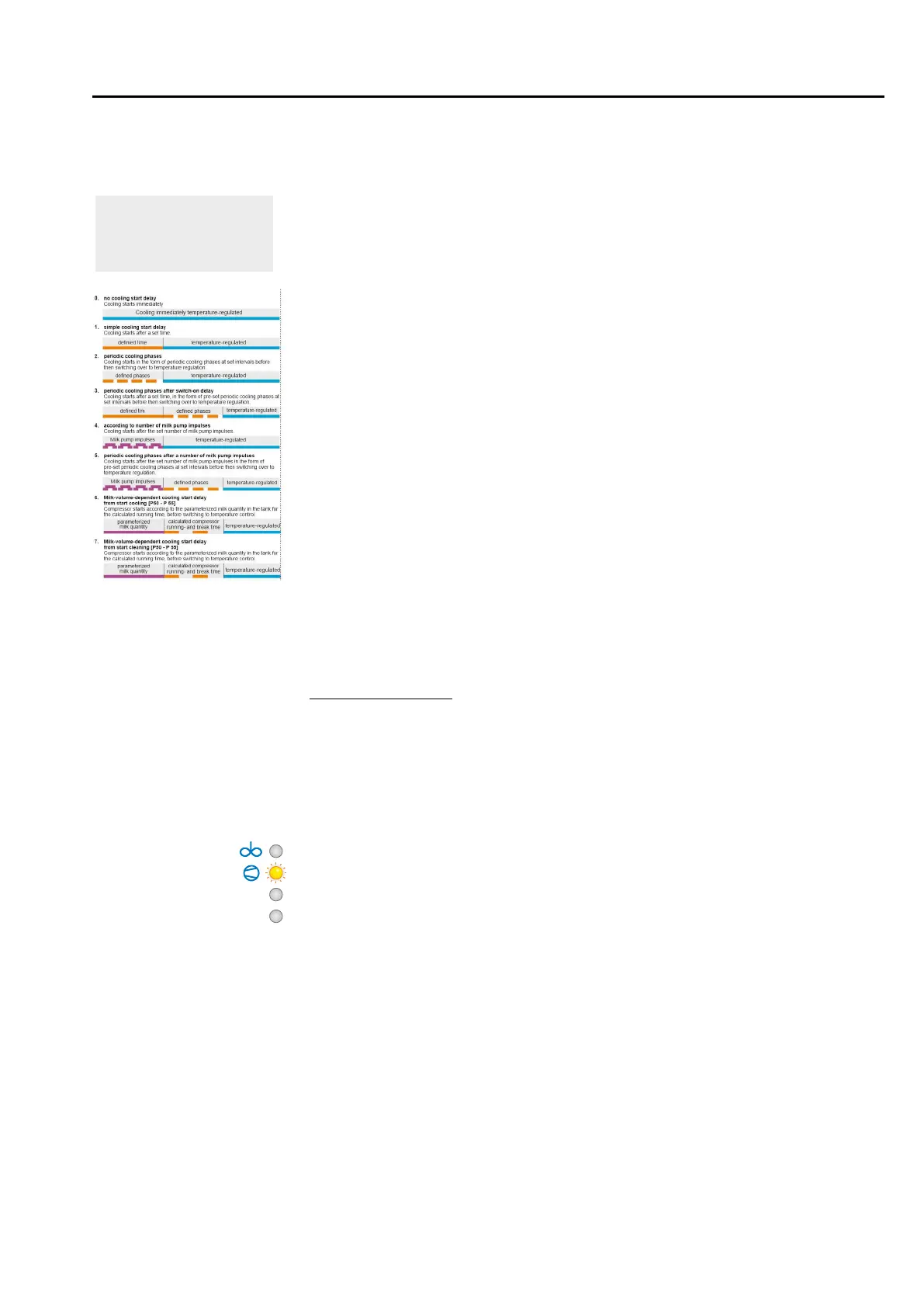

P61 Variations of the cooling start delay 0 .. 07
0: deactivated (without cooling start delay)
1: simple cooling start delay
2: Interval cooling boosts (power reduction by cycles)
3: Interval cooling boosts after switch-on delay
4: Start cooling according to number of boosts of milk pump
5: Interval cooling boosts according to number of impulses milk pump
6:
Milk-volume-dependent cooling start delay (from start cooling) [P50-55]
7:
Milk-volume-dependent cooling start delay (from start cleaning) [P50-55]
P62 Duration of cooling start delay [P61] = 1 or 3 1 .. 999 min. 30
P63 „ON“ time cooling boost [P61] = 2, 3, 5 1 .. 30 min. 5
P64 „OFF“ time cooling boost [P61] = 2, 3, 5 5 .. 60 min. 20
P65 Number of cooling boosts [P61] = 2, 3, 5 1 .. 0 55
P66 Number of impulses milk pump [P61] = 4 or 5 1 .. 10 100
P67 Timeout delay via milk pump 1 .. 999 min. 60
only if [P61] = 4 or 5
Safety function: In the absence of milk pump impulses
(for example, wire breakage), cooling is started
after [P67] has elapsed.
P69 Compressor mode: pulse mode
(active after cooling start delay, uses
the times in P63, P64)
0 .. 1 0
0: deactivated
1: activated
Compressor settings Range Default
P70 Compressor stop via digital input 0 .. 04
Possible control of the cooling start by robot.
0: deactivated
1: ignal at the digital input blocks the compressors
2: no signal at digital input blocks the compressor
3: as 1 with deactivation possibility via cooling button
until next cooling start
4: as 2 with deactivation possibility via cooling button
until next cooling start
INFORMATION: Pay attention to the function assignment [A21 - A28]
P71 Minimum pause time compressor 0 .. 999 sec. 120
Prevents the compressor from running against pressure.
The LED compressor is flashing during the pause time.
P72 Thermal protection monitoring compressor 0 .. 03
0: deactivated
1: activated (error "F53" when open) high-
2: low-active (error „F53" when closed)
3: in case of error , agitator goes into cycling mode
INFORMATION: Pay attention to the function assignment [A21 - A28]
P73 Function 2nd and/or 3rd cooling level compressor 0 .. 04
0: deactivated
1: Delayed after cooling start delay by the time [P74 / P75]
2: Controlled via level sensor
3: Filling quantities controlled (liter registration via pressure sensor)
4: Parallel Operation
INFORMATION: Pay attention to the function assignment [A21 - A28]!
T1
T2
