4.2 Preparing the appliance
4.2.1 Model Silva

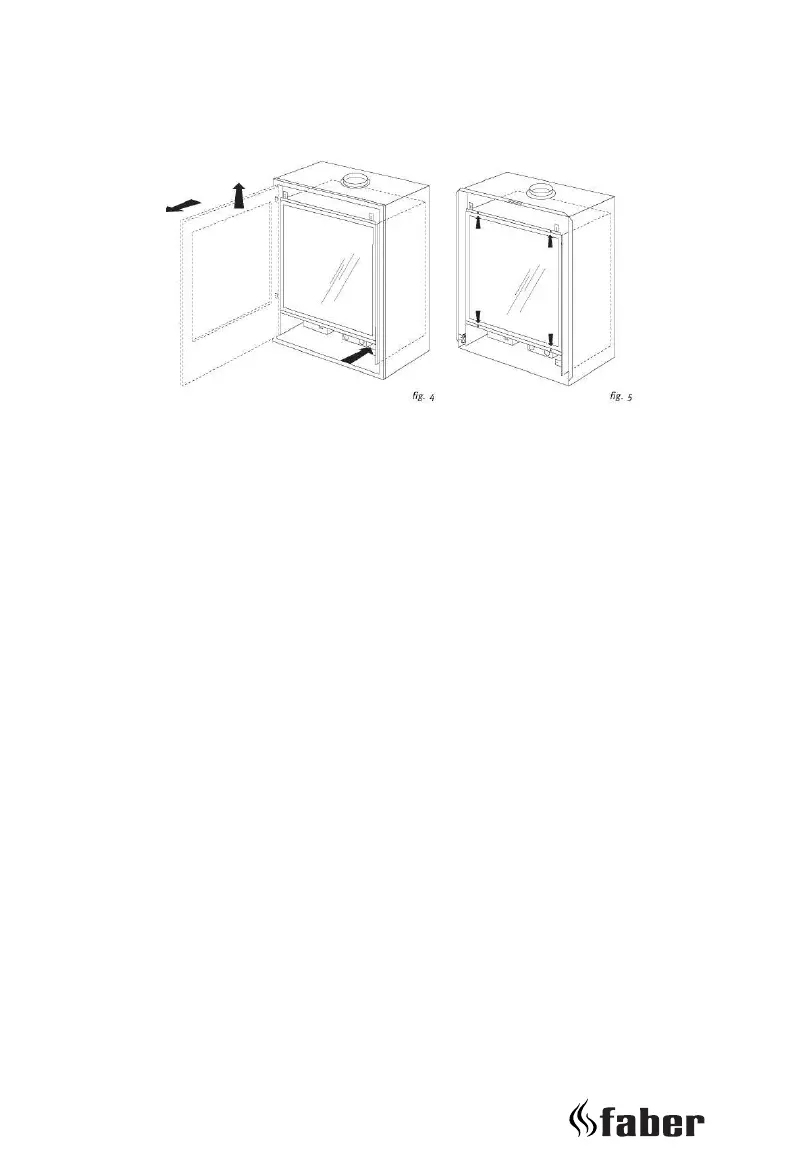

1) Open the door by pressing against the door at the bottom right
and remove the door (see fig. 4).
2) Remove the front by unscrewing the four screws.
3) Remove the glass by disassembling the securing frame (unfasten the
two screws on the bottom of the frame and remove the two screws
on top of the frame) (fig. 5).
4) Take the box with the log set out of the combustion chamber.
5) Remove the cable from the TTB (fig. 6)
6) Remove the burner chamber out of the firebox.
4.2.2 Model Spectra
1) Remove the front by loosening the screws A (fig. 7)
2) Remove the glass by removing the glass clamps (B) for instance with
a screwdriver. Careful when removing the glass! (see fig. 7). Wear
gloves! Before placing the glass back, be sure that there are no
fingerprints on the glass, it is not possible to remove those prints
after you burn the appliance or a while (they will be burnt in)
