8.1.4 Pilot/thermocouple assembly
1) Remove the burner tray as described above.
2) Now you have access to all the pilot and thermocouple parts.
8.1.5 Gas control block
8.1.6 Burner tray assembly flatfiber burner
1) Remove the front, glass and log holder (if applicable).
2) Break the gas supply at the control valve.
3) Remove the cable from the TTB (see fig. 6 and 8).
4) Unscrew the burner assembly (8 screws) and take them out of the
combustion chamber.
Attention! A sharp or heavy object can damage the burner
A. Pilot assembly
B. Burner
C. Fixation plate
D. Injector
E. Gas control
F. Receiver

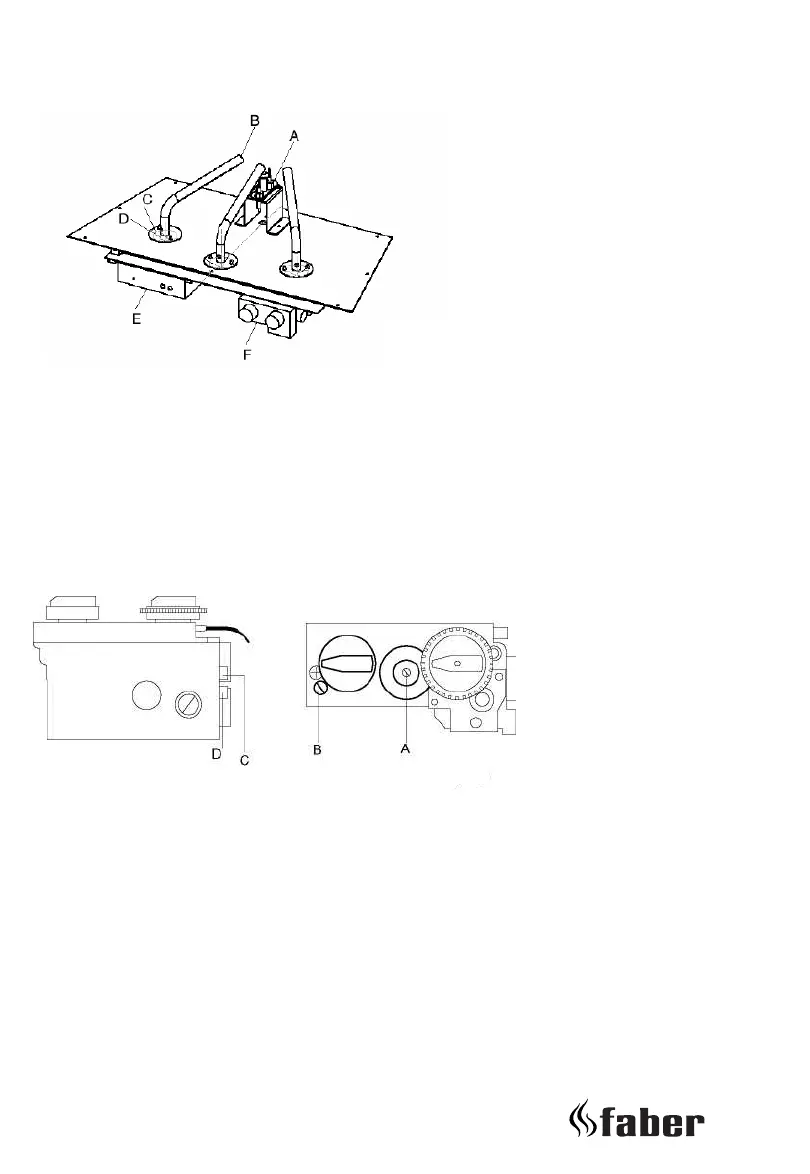

Fig. 24: Burner tray assembly Logburner
E. Governor
F. Adjusting screw pilot flame
G. Inlet pressure test point
H. Burner pressure test point
Fig. 25: Gas control Block
