4.4.1 Model Silva
The log set consist of a rear log and five logs. Place the rear log intothe U
section in the back of the combustion chamber. The logs must be rest on
the burner tray and the rear log. Ensure that the pilot burner remains
visible after installation of the log set. When not placing the log set
correctly, the flames tend to burn to the front against the window,
4.4.2 Model Spectra (flatfibre burner)
The logs set consist of a rear log, which is attached to the combustion
chamber, and four logs.The logs must rest on the log holder and the rear
log. Ensure that the pilot burner remains visible after positioning the log
set. When not placing the log set correctly, the flames tend to burn to
the front against the window.

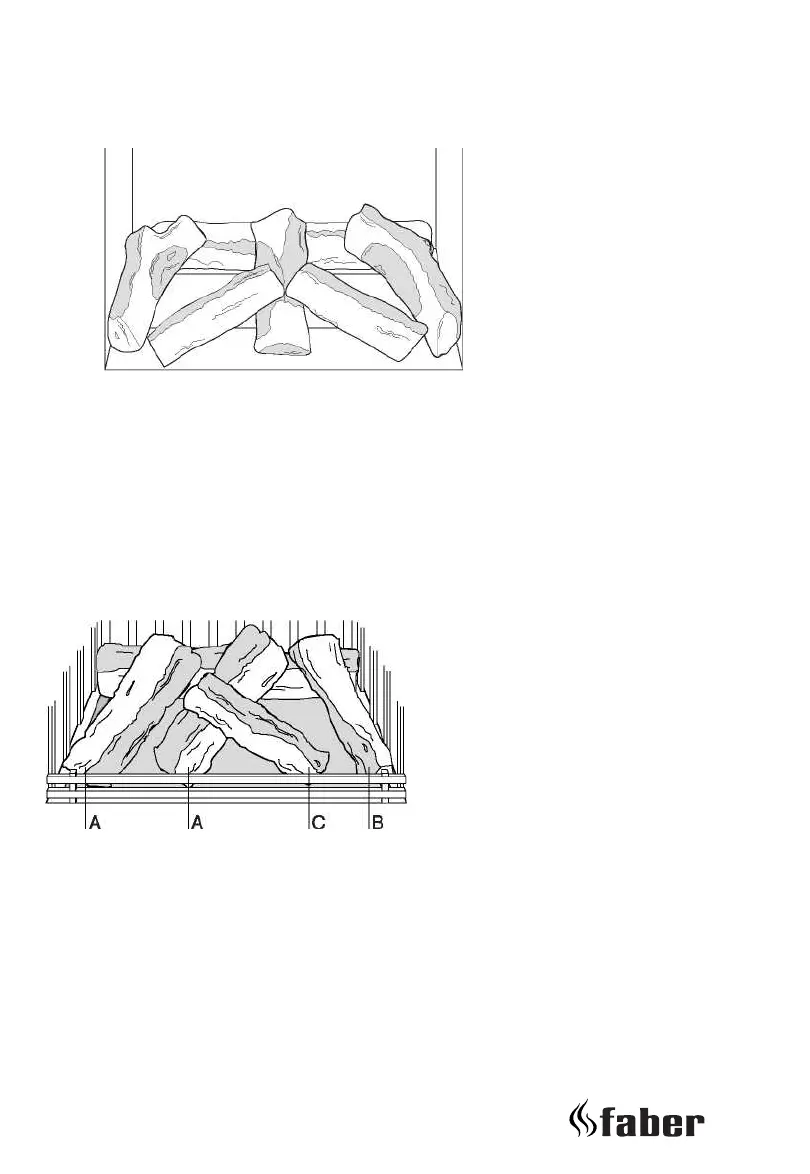

fig. 14
fig. 15
1) large log 28 x 10 cm
2) medium log 24 x 9 cm
3) small log (wedge) 26 x
8 cm
