11) Remove the clamping plate, so that the vent connector makes
contact with the combustion chamber;
12) Turn the clamping plate around and secure the vent connector to the
combustion chamber by sliding the clamping plate into place on the
combustion chamber. Make sure that the lip of the clamping plate

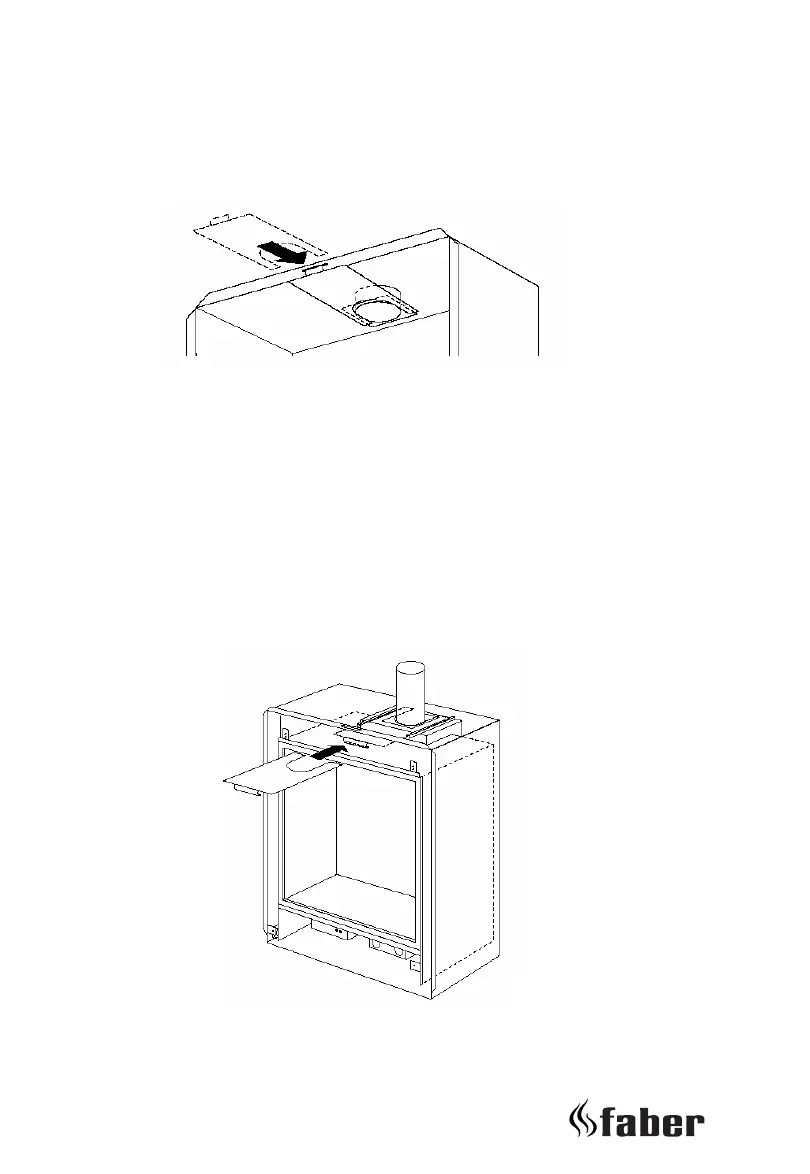

goes in the slot on the front of the firebox (see fig. 12);
13) Slide the burner chamber into the firebox;
14) Pull the clamping plate out. The flue collar plate makes contact with
the burner chamber;
