Facility Explorer FX15 - Connecting the Relays

FX15 Controller Technical Bulletin
40
Connecting the Relays
The FX15 controller features up to nine Digital Outputs with
electromechanical relays. To simplify assembly, the common terminals
of some relays have been grouped together. The relays are divided into
six groups, according to the distance of insulation.
41 51 55 6242 52 56 6343 53 5754 6144 45 46 47 48
DO1 Com
DO4 no
DO5 no
DO4/5 Com
DO6/7/8 Com
DO2 Com
DO3 Com
DO1 no
DO8 no
DO7 no
DO6 no
FAIL no
FAIL Com
FAIL nc DO2 no
DO3 no
Max
8(3)250V~
TB6
TB5TB4
TB3
FX16-026_11 2003
Group #6Group #5Group #4Group #3Group #2Group #1

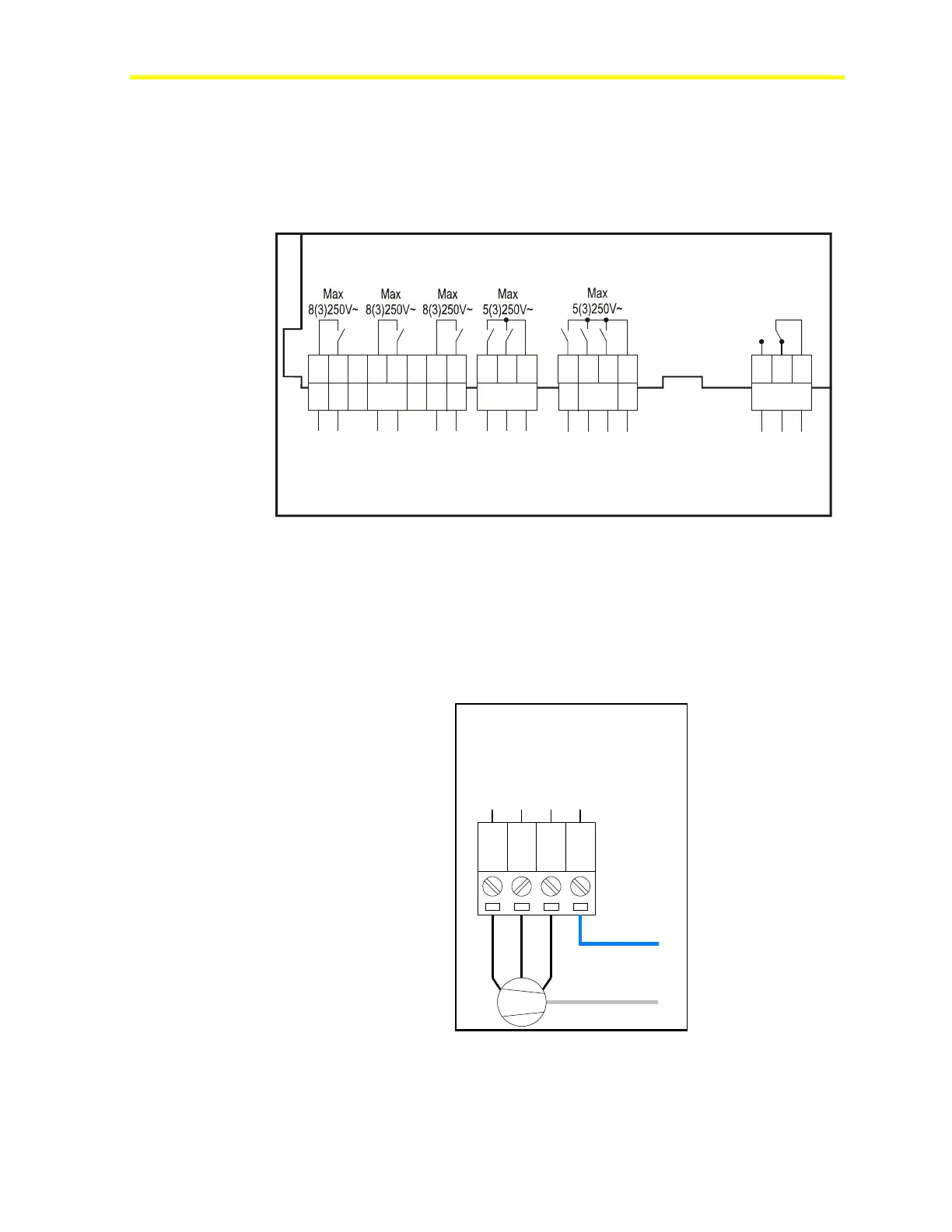

Figure 40: Relay Groups
Inside each group the relays have single isolation only and must be
connected to the same voltage supply. Between the groups there is
double isolation, and the groups can be connected to different voltage
supplies.
Figure 41 displays a typical application of the relay outputs as a
connection example.
54
DO6 no DO8 no
5756
55
DO7 no
DO 6/7/8 Com
~ 230Vac
Speed1
Speed2
Speed3
N
L
Fan
Figure 41: Connecting a Three-Speed Fan Motor
