FX16 Master Controller Technical Bulletin 21

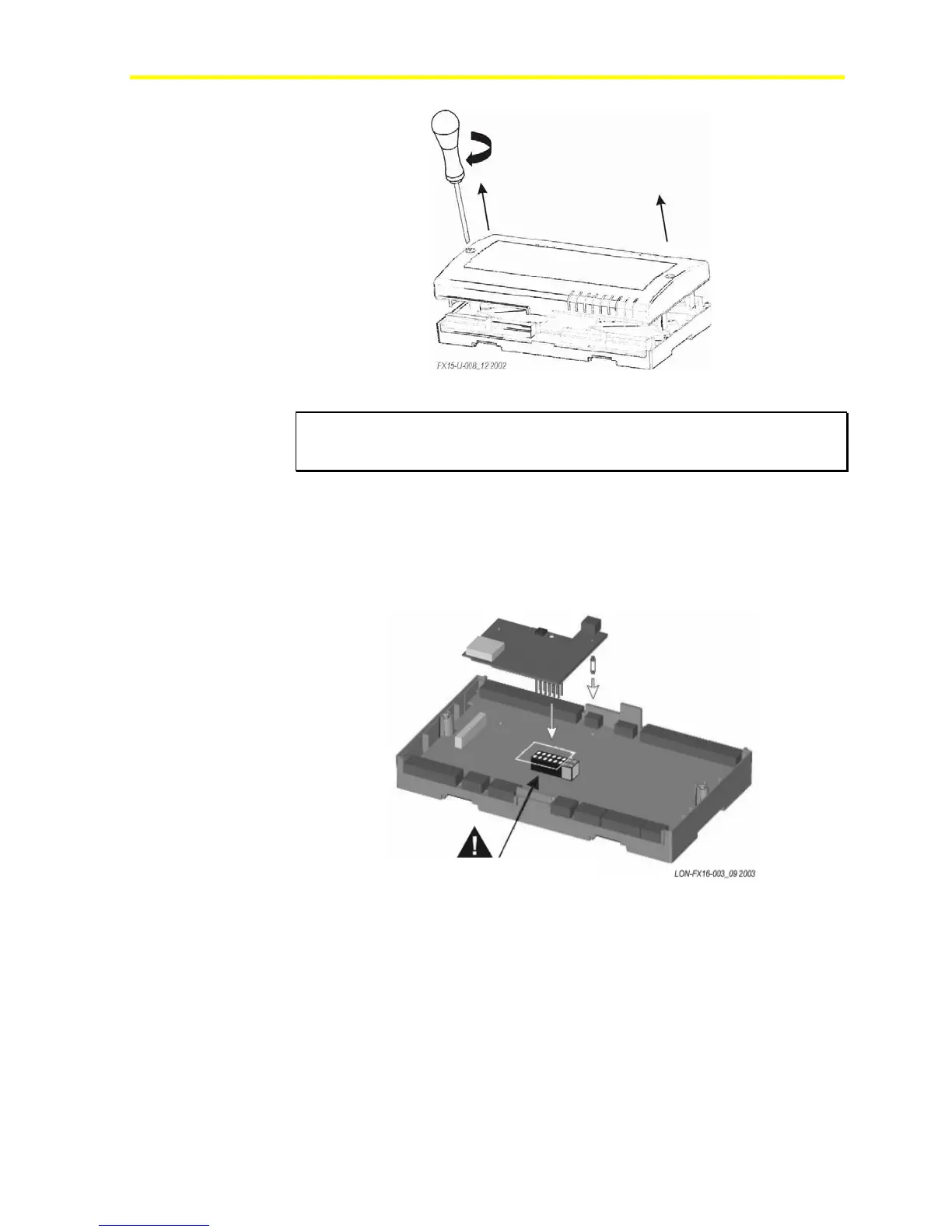

Figure 14: Open the Controller
IMPORTANT: The CMOS integrated circuits in the controller and on the
communication card are sensitive to static current discharges. Take suitable
precautions.
3. Fit the standoff supplied with the card into the hole in the FX16
board (located close to the Local Link Bus terminals).
4. Press the connector pins into the communication board connector on
the FX16 board and then press the card over the standoff to fit the
card firmly in position. See Figure 15.
Figure 15: Insertion of the LON Card
5. Replace the control cover and secure it with the two screws.
6. Turn on the controller after you safely restore all connections.
Align the pins as shown in figure.
