Facility Explorer FX16 - RS-485 N2 Open Card Connection

FX16 Master Controller Technical Bulletin
16
• You can download the control application to the FX16 Master
Controller. Then the FX16 Master Controller downloads the specific
parts of the application to the corresponding XT modules.
• You must program and/or configure devices connected and
monitored by the Gateway object independently.
• XT91/XP91 modules can coexist with slave controllers on the local
link extension bus.
Connection Details for the RS-485 N2 Open Card
You can order the FX16 Master Controller with the RS-485 N2 Open
communication card, or you can order the N2 Open communication
card separately to insert the card at a later time. See Ordering Codes.
The RS-485 communication card allows the FX16 Master Controller to
connect to an N2 Open network of a building automation system.

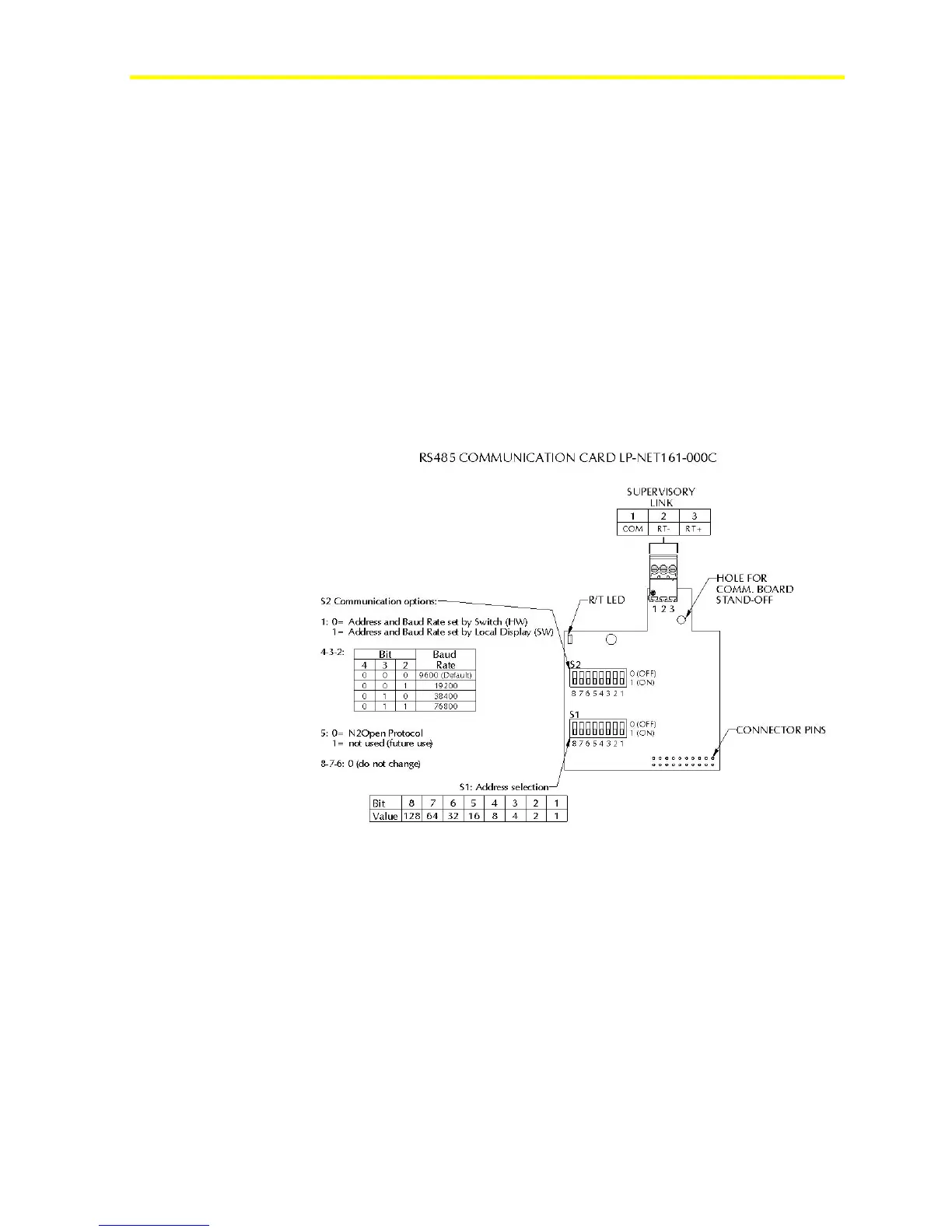

Figure 8: N2 Open Plug-in Communication Card
Note: The N2 Open communication card for the FX16D and FX16X
(not Rev. A) controllers does not have S2 Communication Options
switch.
