FX16 Master Controller Technical Bulletin 13
Connection Details for FX Slave Controllers - Distributed
Application and Gateway Objects - on Local Link Extension Bus

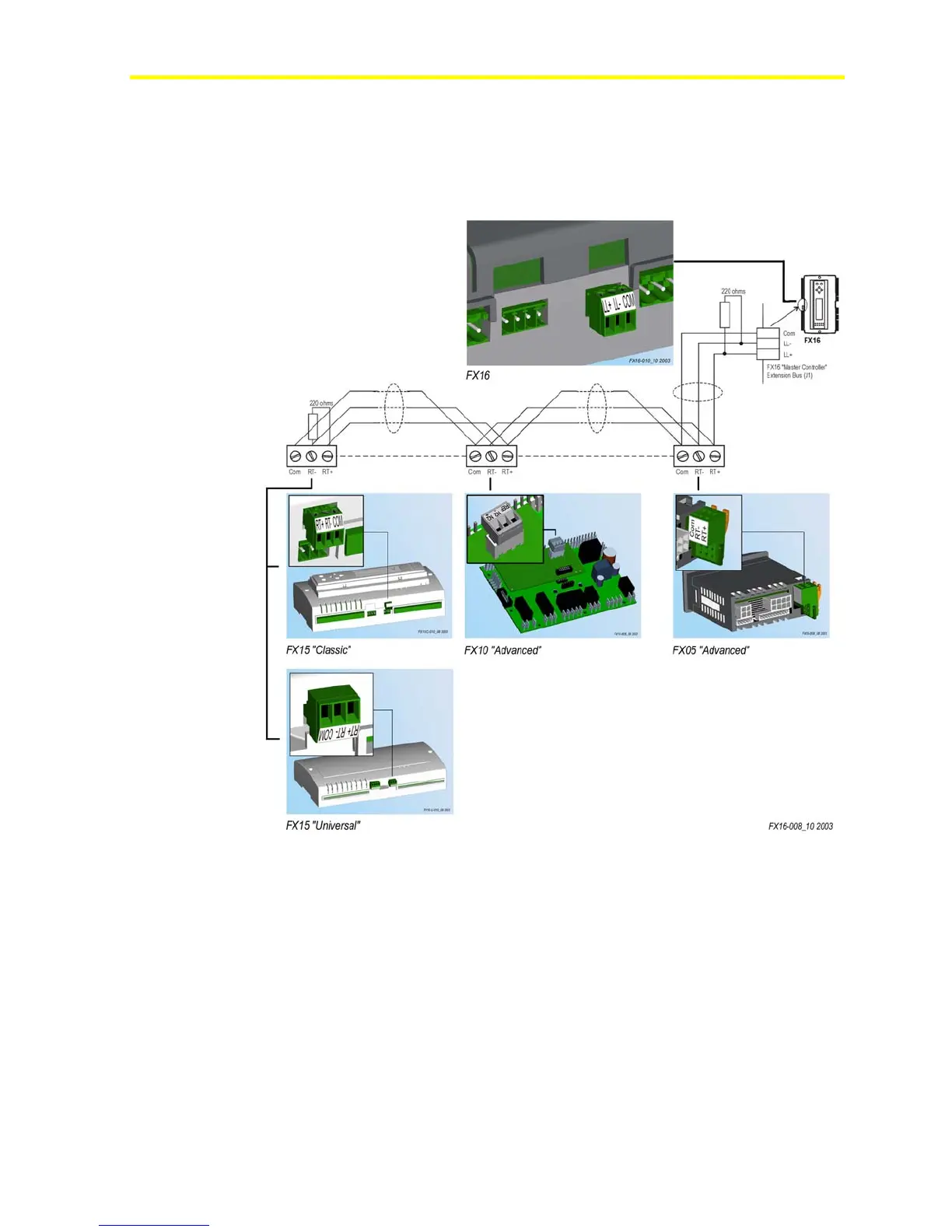

Figure 6 displays the connection details for the FX slave controllers on
the local extension bus.
Figure 6: Connection Details for the Slave Controllers
