FX16 Master Controller Technical Bulletin
20
LONWORKS Communication Card
You can order the FX16 controller with the LONWORKS communication
card installed, or you can order the LONWORKS communication card
separately to insert at a later time. See Ordering Codes.
The LONWORKS communication card allows the FX16 to connect to a
LONWORKS free topology (FTT) network.

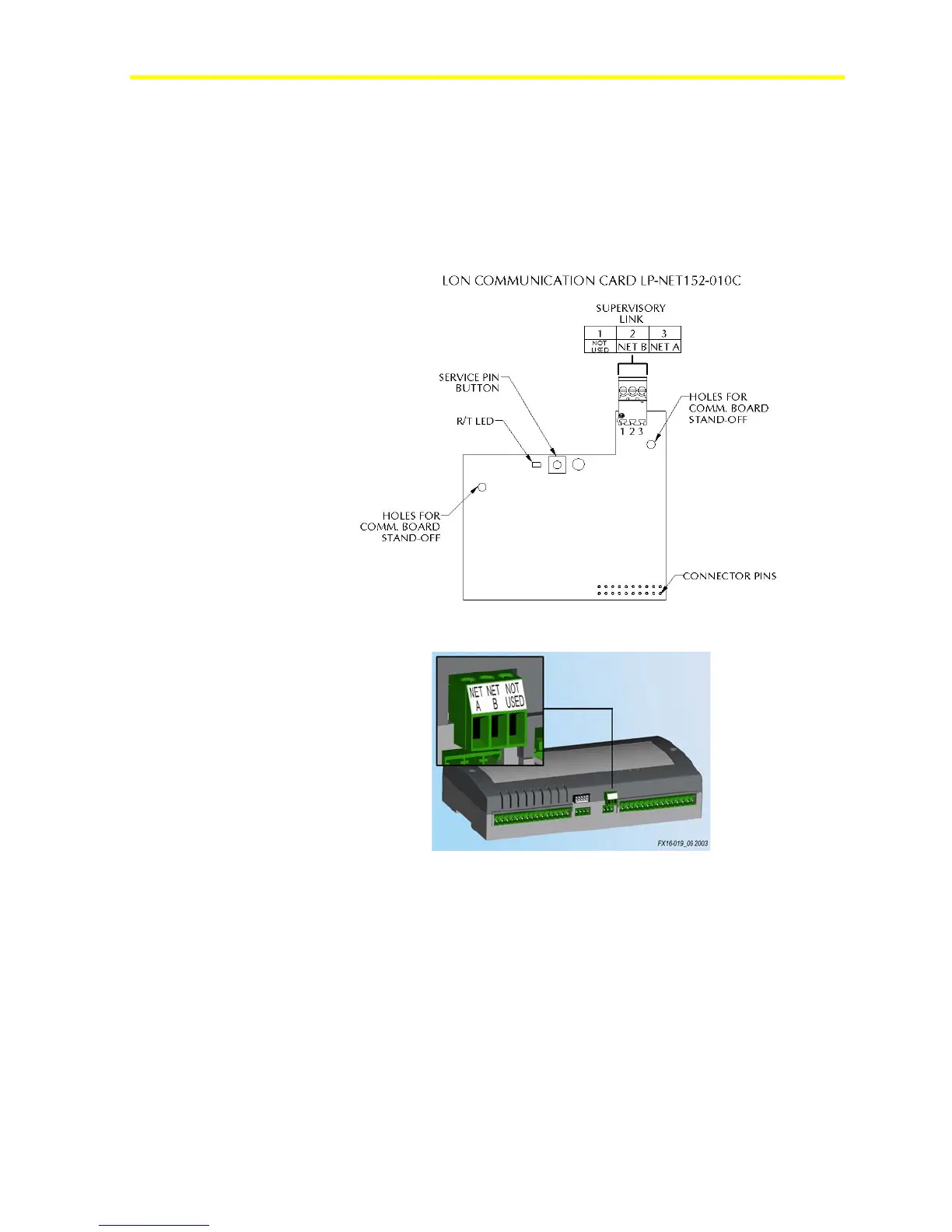

Figure 12: LON Plug-in Communication Card
Figure 13: LON Card Connection
Installing the LON Communication Card
To install the LON communication card:
1. Turn off the controller (hot plug-in not allowed) and isolate all high
voltage connections to the controller.
2. Open the controller by removing the two screws. See Figure 14.
