FX16 Master Controller Technical Bulletin
64
Digital outputs in extension modules can only be configured as on/off
or pulse type, and the physical output may be a triac or a relay contact.
Pulse type outputs switch on for a configurable period (1 to 1,275 ms)
for each transition of the connected variable.
You can combine an XT91D00 with its expansion modules to provide
one of the following configurations:
• 8 analog inputs/outputs
• 8 digital inputs/outputs, with digital counters associated with the
digital inputs
• 8 analog inputs/outputs and 8 digital inputs/outputs
• 16 digital inputs/outputs, with digital counters associated with the
digital inputs within the first 8 input and output points
X
T
XT
X
T
XT
X
P91D02
XP91D03
X
P91D06
XP91D03
XP91D04
XP91D05
XP91D06
XP91D05
FX16
Local Link
Extension Bus
FX15-C-007_10 2002
XP91D04

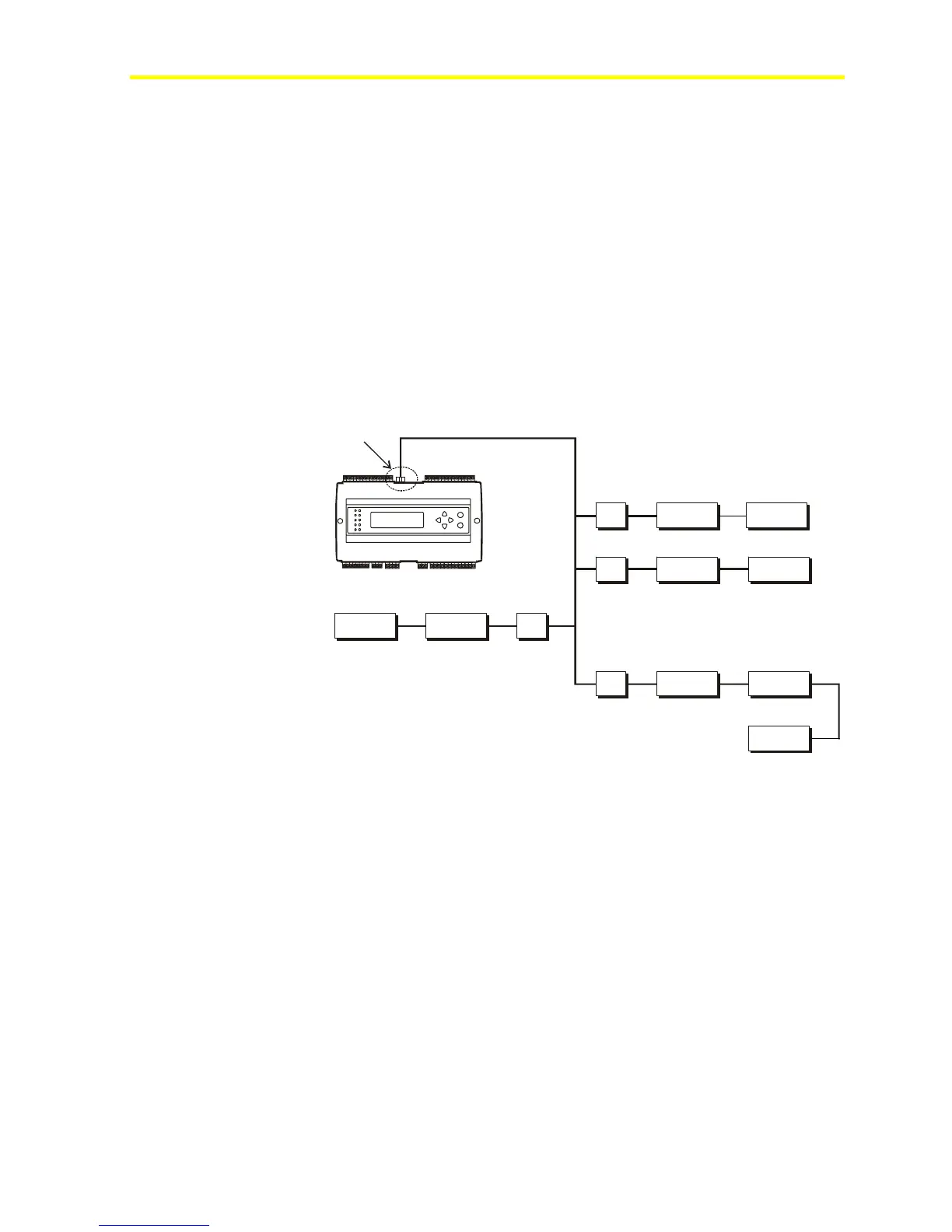

Figure 57: Example of Maximum Configuration
