34 Fadal/Sinumerik 810D CNC: Definition of Offsets October 2000
SIEMENS CONTROL
Operator Manual
Fadal

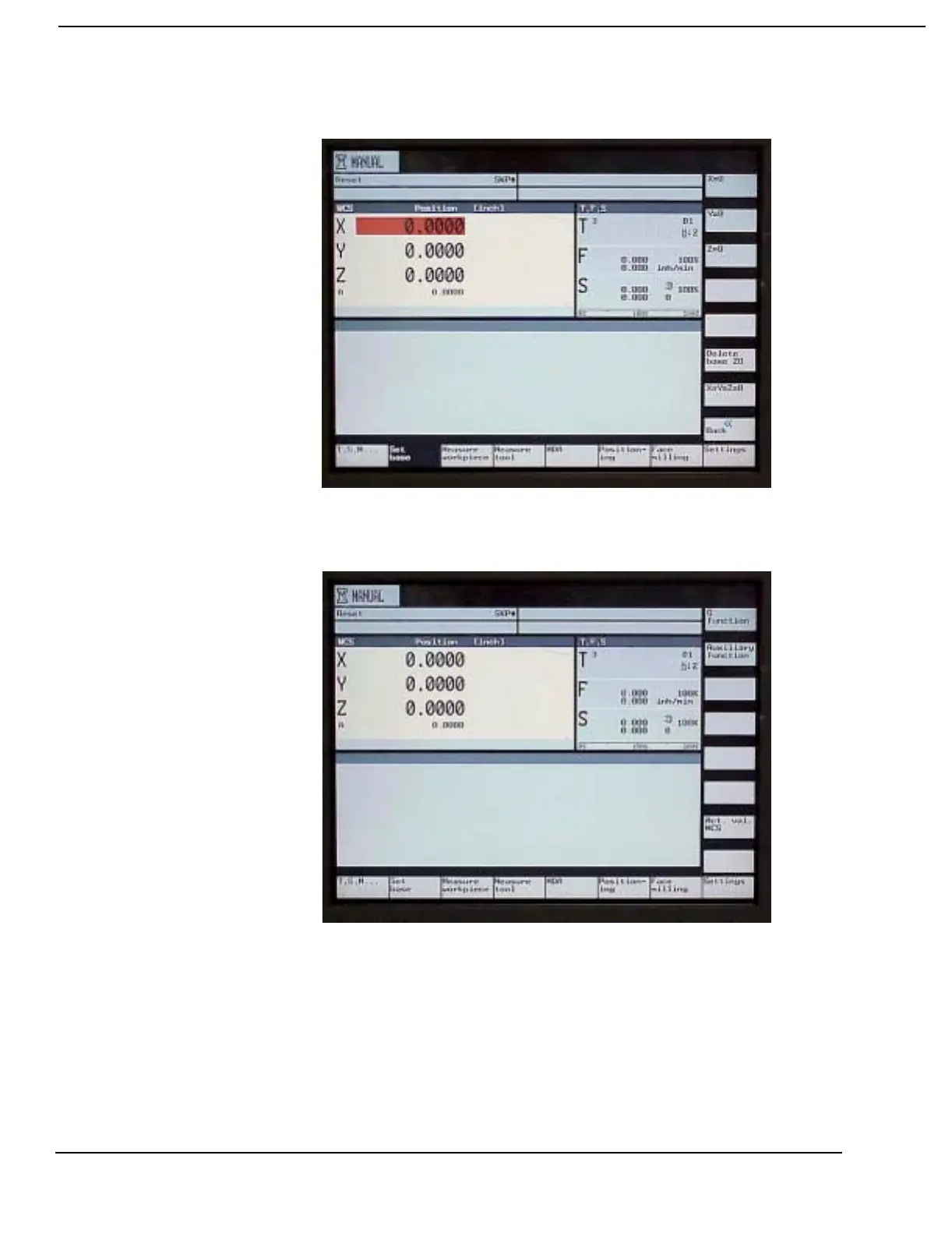

5) Jog the X-Axis to the desired Base (Home) position.
6) Press the X=0 soft key to set the X-Axis base position for the WCS. The
WCS position for the X-Axis will reset to Zero.
