October 2000 Fadal/Sinumerik 810D CNC: Definition of Offsets 37
SIEMENS CONTROL
Operator Manual
Fadal
4) Select the Edge soft key when using the X, Y and Z WCS position to
determine the base setting by using an edge finder or touch probe on the
part from each WCS axis.

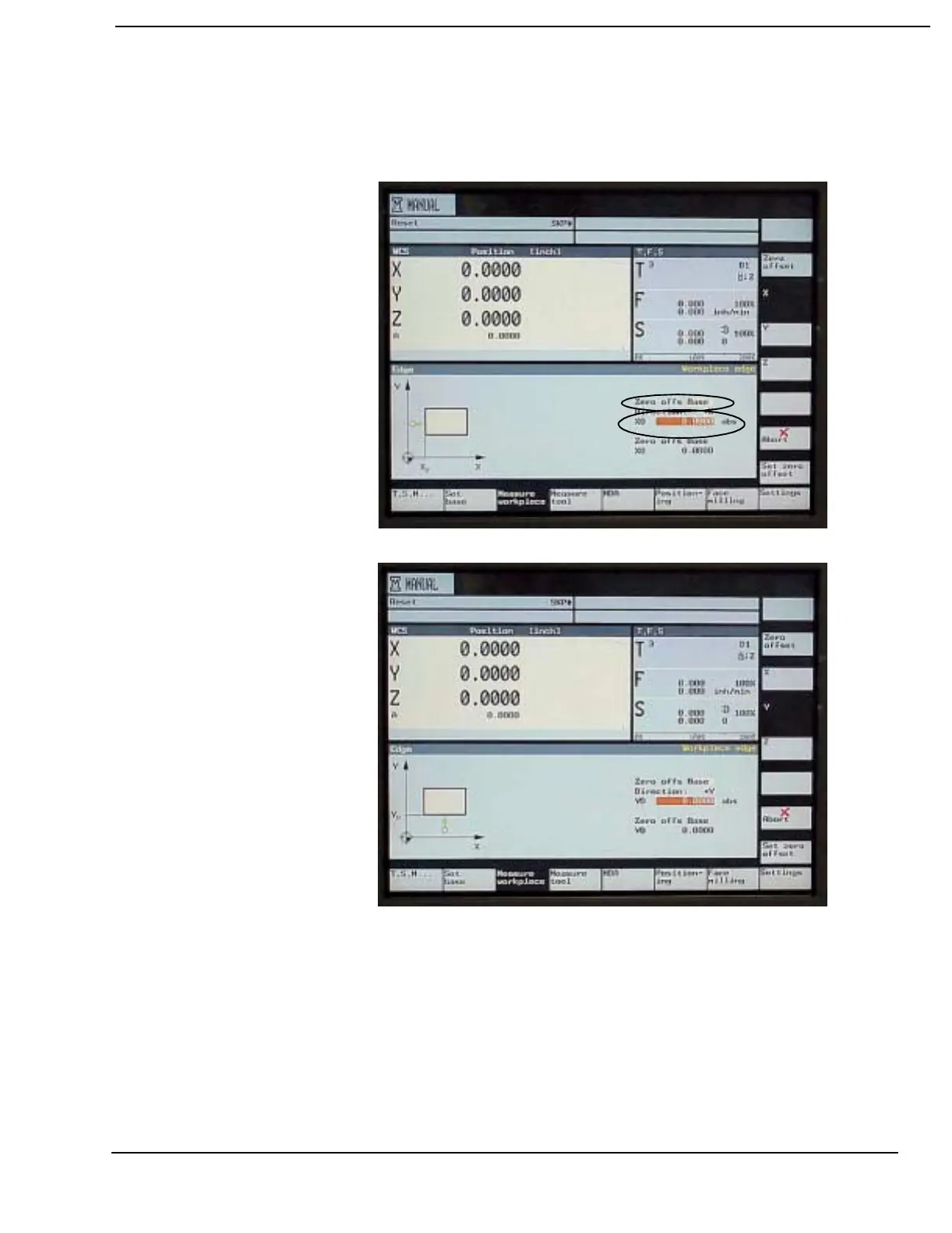

Example 1
Example 2
