38 Fadal/Sinumerik 810D CNC: Definition of Offsets October 2000
SIEMENS CONTROL
Operator Manual
Fadal
Note: An edge finder or probe can be used for these procedures.

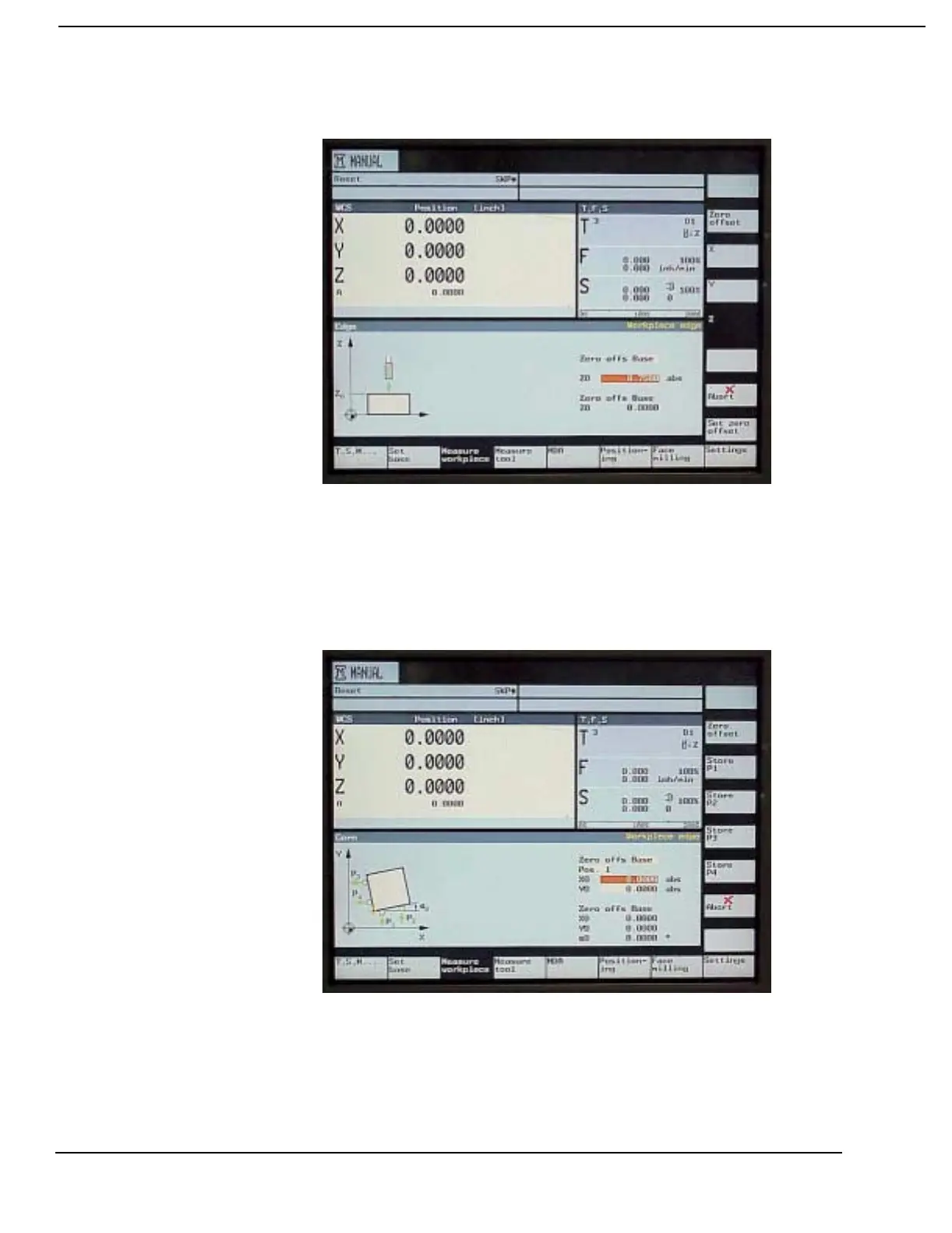

5) Select the Corner soft key when setting the WCS base position by
determining the orientation of the workpiece to a selected corner.
