October 2000 Fadal/Sinumerik 810D CNC: Definition of Offsets 39
SIEMENS CONTROL
Operator Manual
Fadal

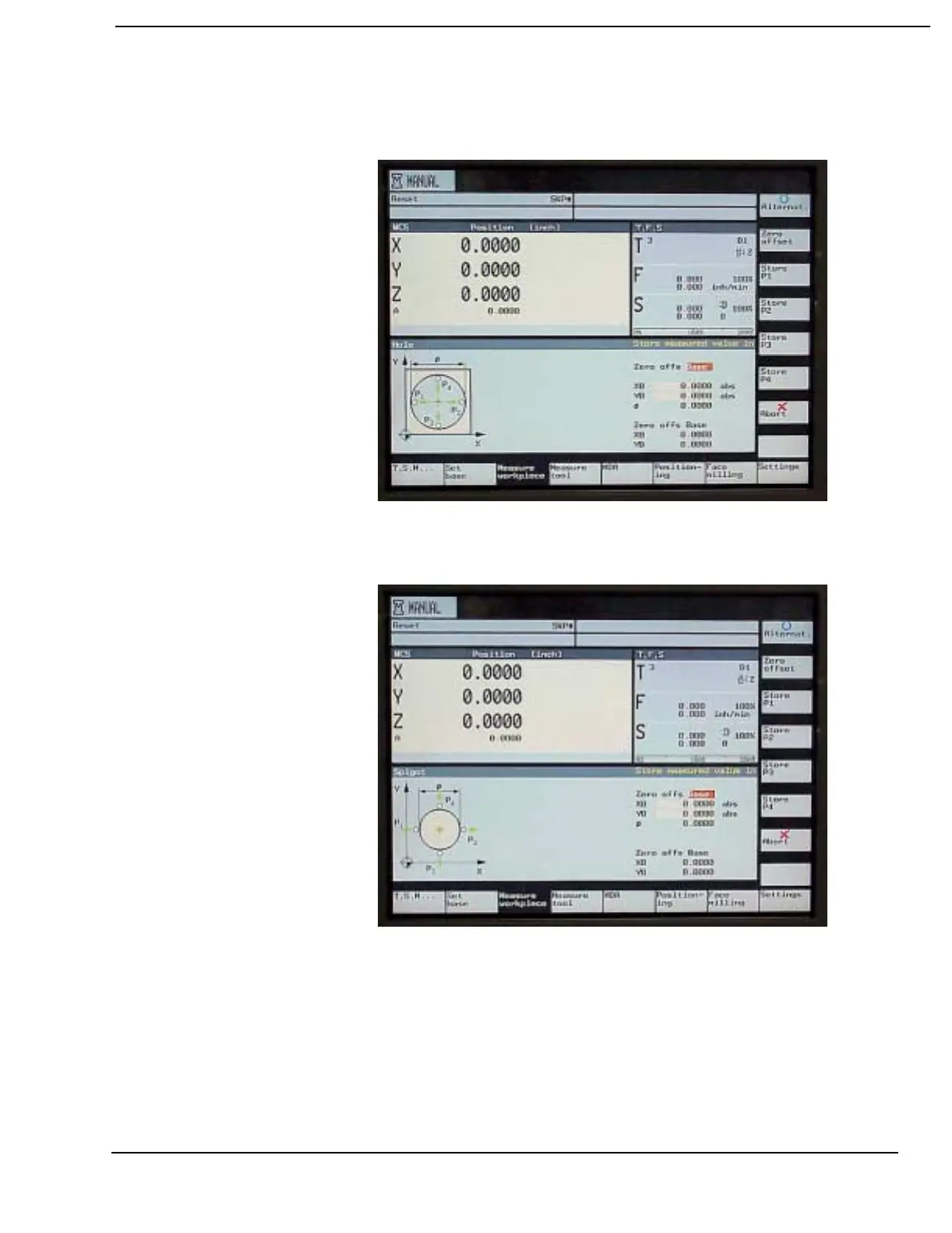

6) Select the Hole soft key when setting the WCS base position by
determining the center of a hole at four positions.
7) Select the Spigot soft key when setting the WCS base position by
determining the center of a cylinder at four positions.
