42 Fadal/Sinumerik 810D CNC: Definition of Offsets October 2000
SIEMENS CONTROL
Operator Manual
Fadal

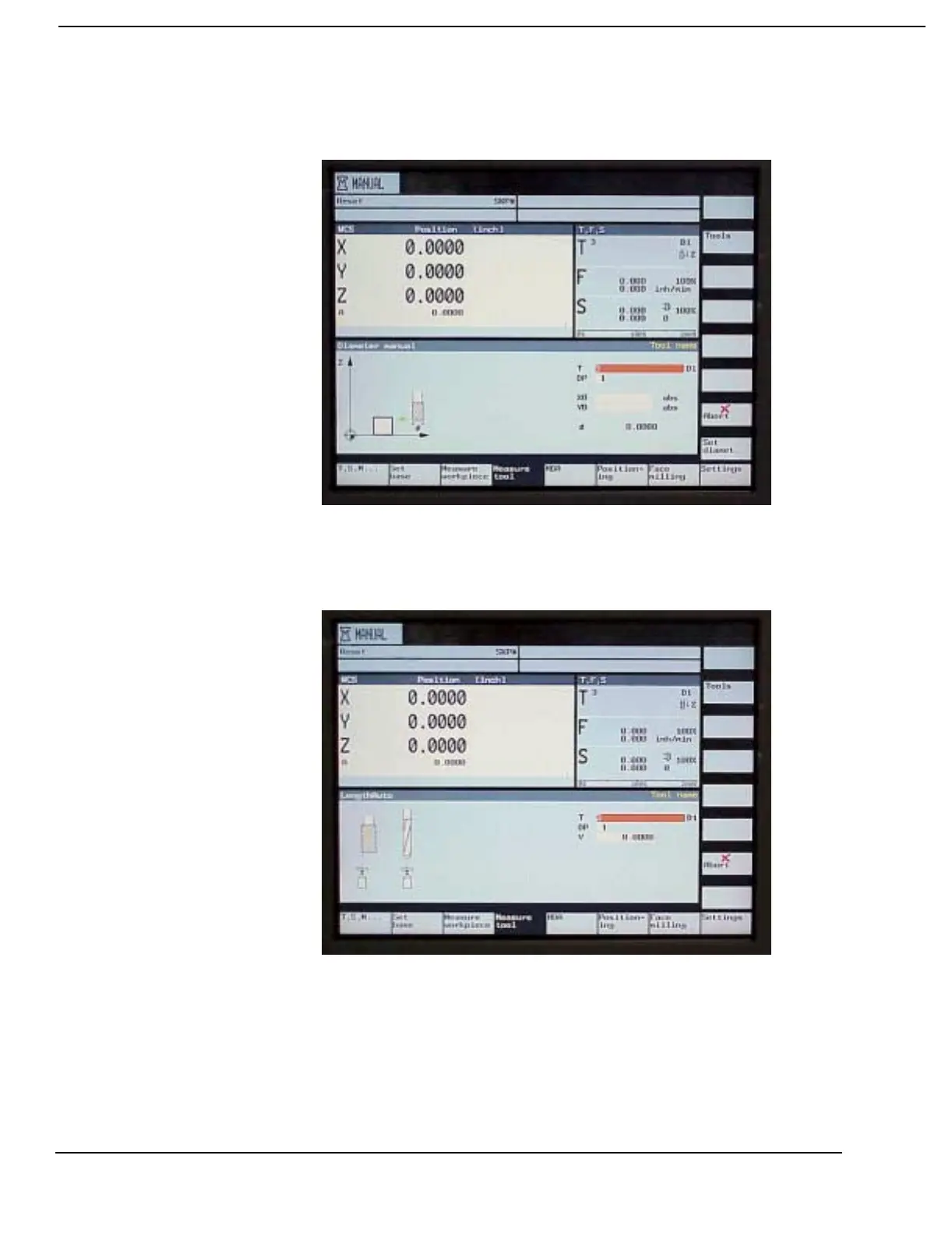

5) Select the Diameter Manual soft key when manually setting the tool
diameter offset by jogging the tool to a reference block or part.
6) Select the Length Auto soft key when setting the tool length offset with
a touch probe.
