October 2000 Fadal/Sinumerik 810D CNC: Definition of Offsets 43
SIEMENS CONTROL
Operator Manual
Fadal

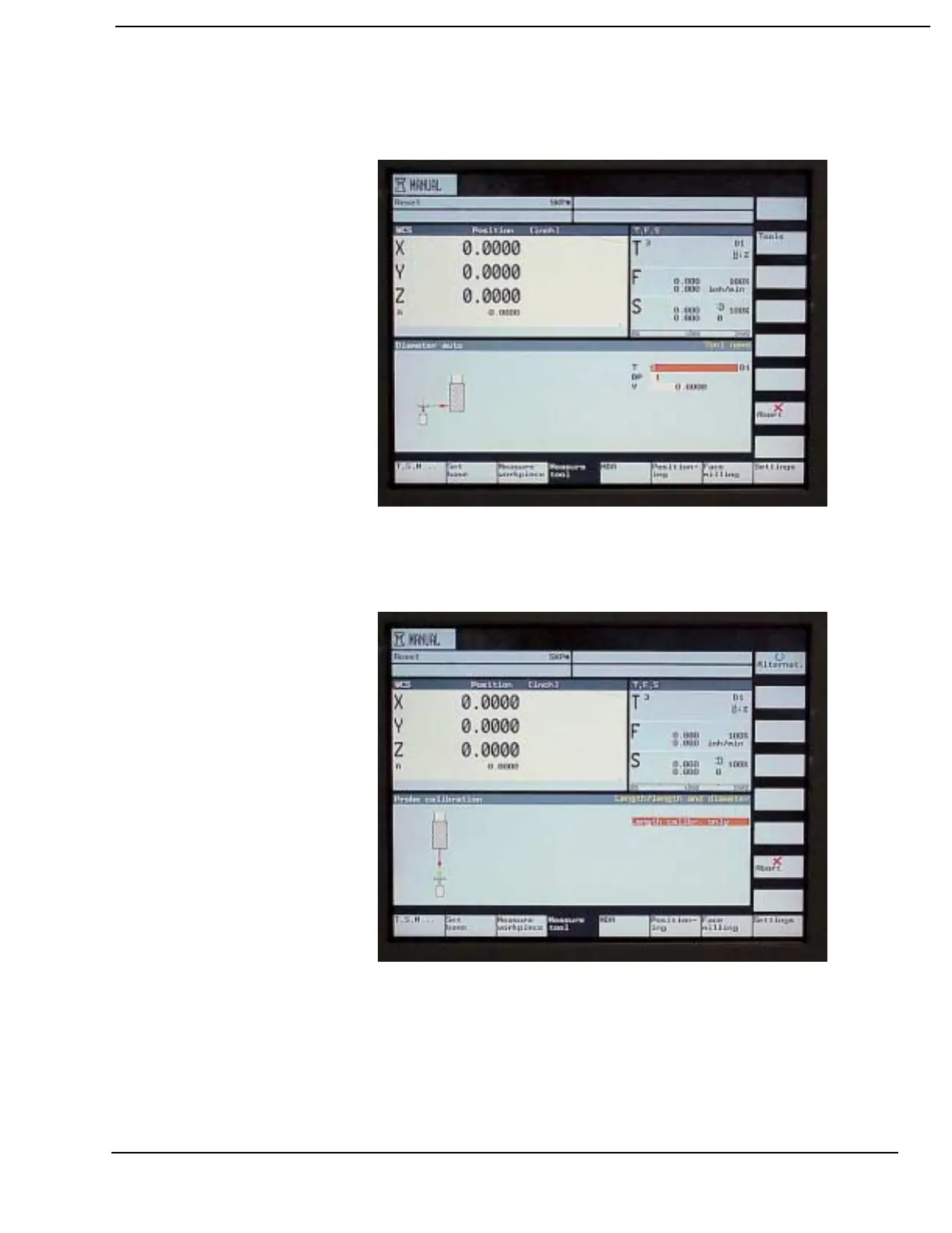

7) Select the Diameter Auto soft key when setting the tool diameter offset
with a touch probe.
8) Select the Calibrate Probe soft key when checking the accuracy of the
probe against standards for length or radius.
