Operation Page 9/10
6 Operation
The message "Info” appears for 5 seconds on display after switching on the measurement
evaluation unit. The display then changes automatically to the filling level display in column
form. An overview of the menu structure and the factory-set default values can be found in
Section 6.14 „Menu structure with factory setting“.

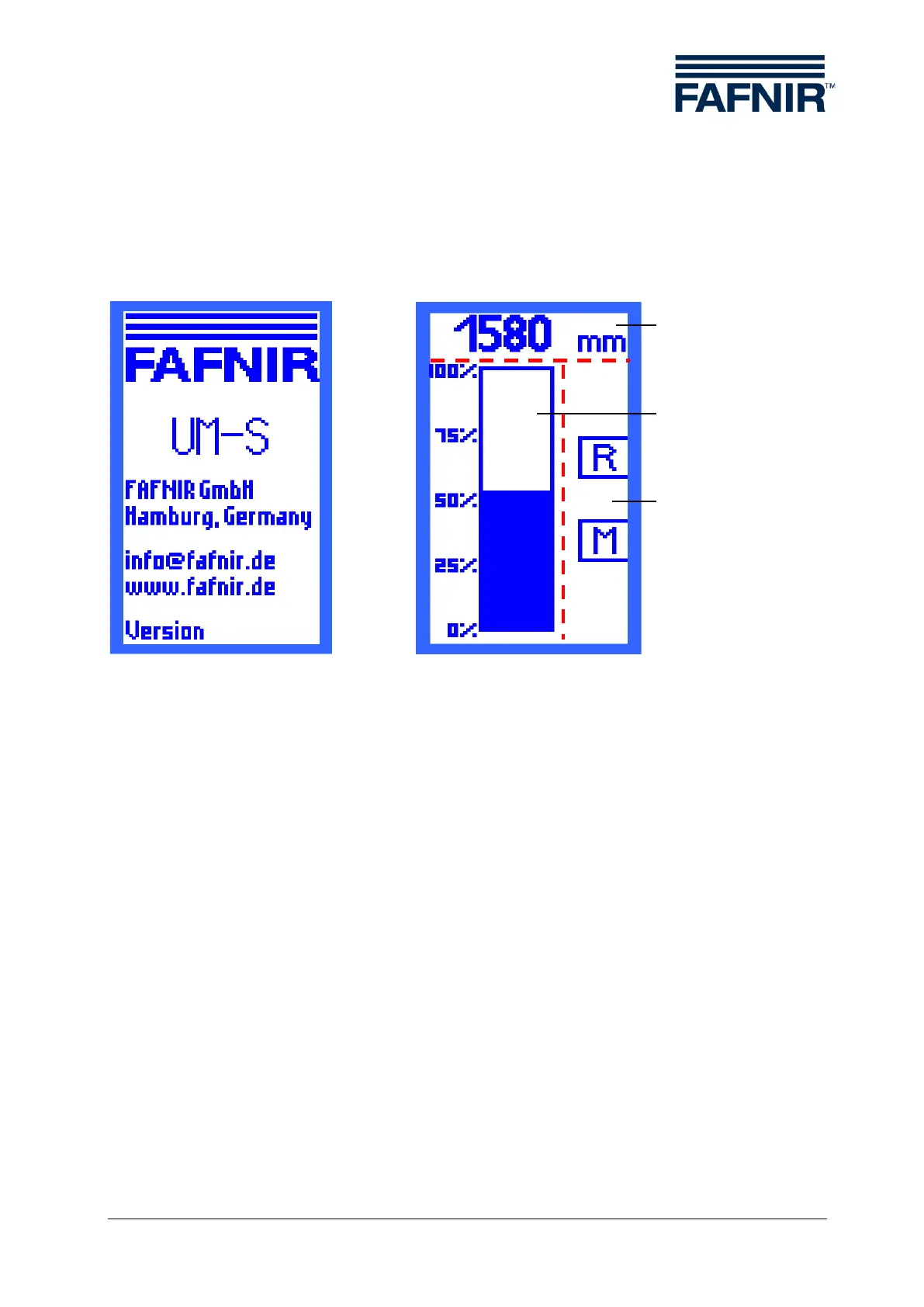

Figure 3: Display after switching
on the measurement evaluation unit
Figure 4: Layout of the display
Column display
6.1 Layout of the display
The display is divided into 3 areas (see Figure 4):
6.1.1 Digital display
The current filling level is digitally displayed in the top line.
6.1.2 Multi-function field
The information field has the following functions:
• Analogue display of the filling level or of the relay status.
• Navigation via the menu:
Navigating through the menu structure using buttons.
6.1.3 Button function field
The right column of the display serves as the button function field. The functions of the adja-
cent buttons are displayed here. The functions are matched with the respective menu options.
Multi-function field
Button function field
