Page 18/19 Operation
6.9 Relays Menu
In the “Relays” menu you can select the individual relays K1 …
K5 for further configuration.
Select with the functions
UP [] and
DOWN []
the desired relay.
Confirm your selection with RETURN [ ].

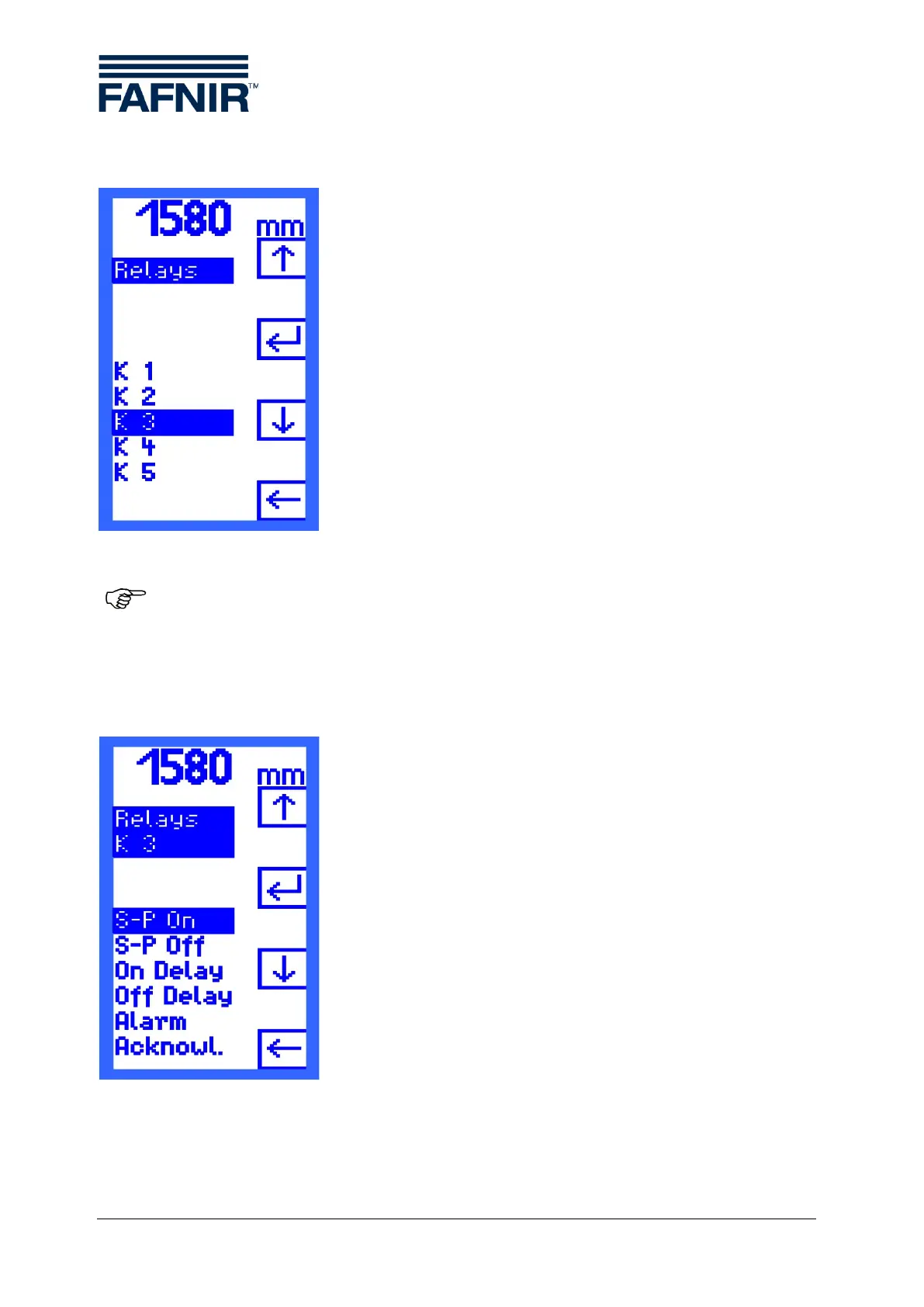

Figure 13: Relays Menu
With the device variants UM-O and UM-O Ex (overfill protection devices) you
need a password to be able to select the relays K1 and K2. Relays K1 and K2
can only be selected and set together.
6.9.1 Relays - K1 ... K5
A menu opens for the selected relay in which you can make the
following settings:
• S-P On - switching point on
• S-P Off - switching point off
• On Delay – switching on delay
• Off Delay – switching off delay
• Alarm - alarm configuration
• Acknowl. – Acknowledgement
With the functions
UP [] and
DOWN [ ]
select the desired setting.
Confirm your selection with RETURN [ ].
Figure 14: Relays K1 … K5 Display
