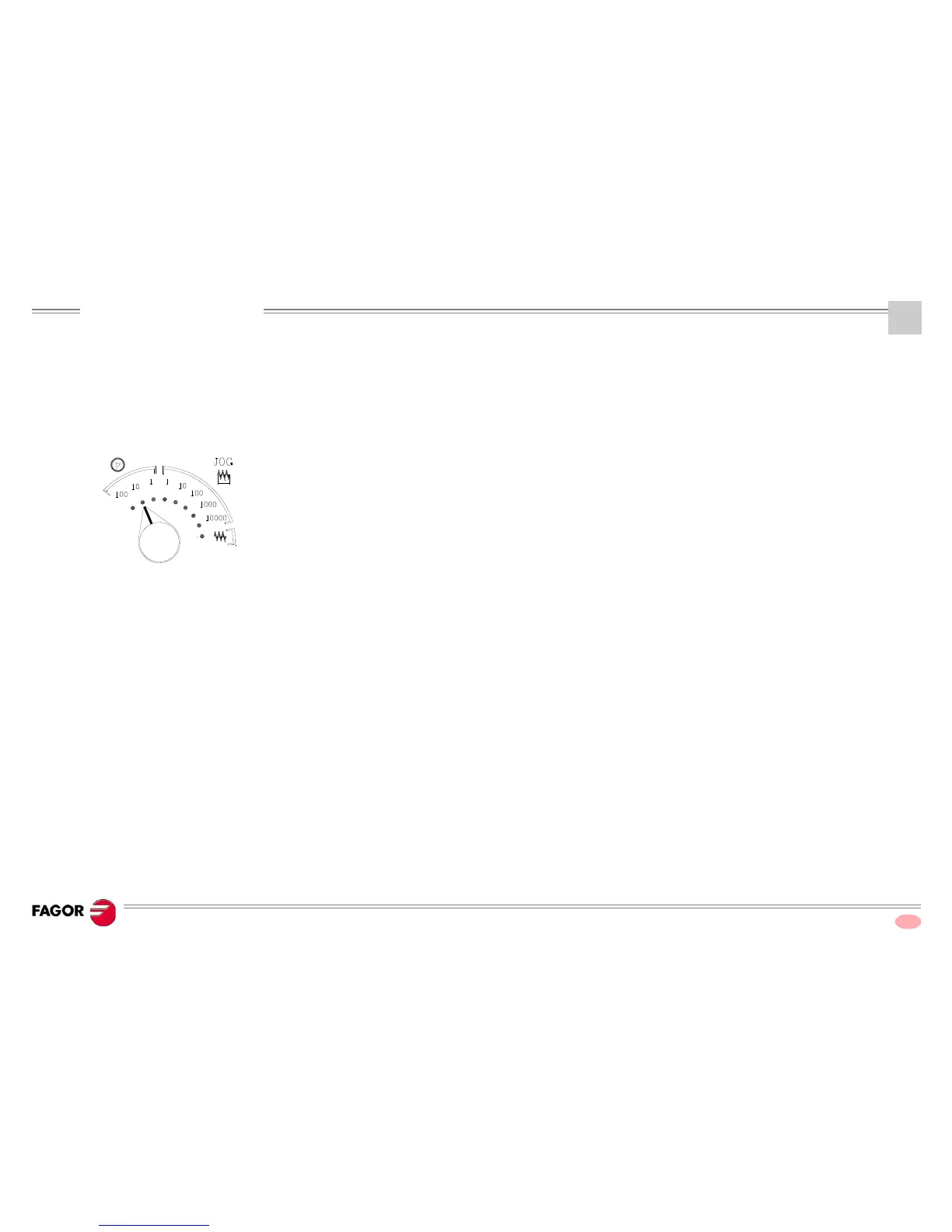

SELF-TEACHING MANUAL
41
·TC· Option
MANUAL PRACTICE.
3
3.4.1
Handwheels.
•
Use the selector s
witch to
select the type of feed.
•
If
the machine has 1 handwheel.
Select an axis using the JOG ke
ys. The machine mov
es the axis as
the handwheel is being tur
ned.
•
If
the machine has 2 or more handwheels.
The machine mov
es one axis
with each handwheel.
(1)
Mov
ement: 1 micron.
(10)
Mov
ement: 10 microns.
(100)
Mov
ement: 100 microns.
40
42
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Theory on Cnc Machines
5
Machine Axes
7
Machine Reference Zero and Part Zero
8
Home Search
9
Travel Limits
10
Setting the Part Zero
11
Work Units
12
Spindle Speed
13
Chapter 2 Theory on Tools
15
The Tool Change
17
The Tool Table
18
Tool Calibration
25
Chapter 3 Manual Practice
29
Description of the Screen and the Keyboard
31
Keyboard Description
32
Description of the Standard Screen
34
Description of the Auxiliary Screen
35
Home Search
36
Spindle
37
Speed Ranges (Gears)
39
Jogging the Axes
40
Handwheels
41
Jogging
42
Moving an Axis to a Coordinate
44
Tool Change
45
Tool Change Position
46
Tool Calibration
47
How to Change any Data of the Tool Table
50
Checking for Proper Calibration
51
Chapter 4 Operations or Cycles
53
Description of the Screen and the Keyboard
55
Work Modes
57
Operations or Cycles
58
Editing an Operation or Cycle
59
Simulating an Operation or Cycle
63
Executing an Operation or Cycle
67
Chapter 5 Summary of Work Cycles
71
Positioning Cycle
73
Turning Cycle
74
Facing Cycle
75
Taper Turning Cycle
76
Rounding Cycle
78
Threading Cycle
79
Grooving Cycle
82
Drilling and Tapping Cycles
85
Profiling Cycle
86
Chapter 6 Conversational Part Programs
89
What Is a Conversational Part-Program
91
Editing a Part-Program
92
Modifying a Part-Program
95
Simulating/Executing an Operation
99
Simulating/Executing a Part-Program
100
Simulating/Executing a Part-Program Starting with an Operation
101
Copying a Part-Program into Another One
102
Deleting a New Part Program
103
Other Lathe Type Machining Operations
105
Appendix Other Lathe Type Machining Operations.
107
Introduction
107
A.1 Introduction
107
Orienting Spindle and Live Tool
108
Multiple Drilling
109
A.3 Multiple Drilling
109
Multiple Tapping
110
A.4 Multiple Tapping
110
Slots
111
A.5 Slots
111
5
