Auxiliary modules
AUXILIARY MODULES
Auxiliary power supply
4.
203
DDS
HARDWARE
Ref.1310

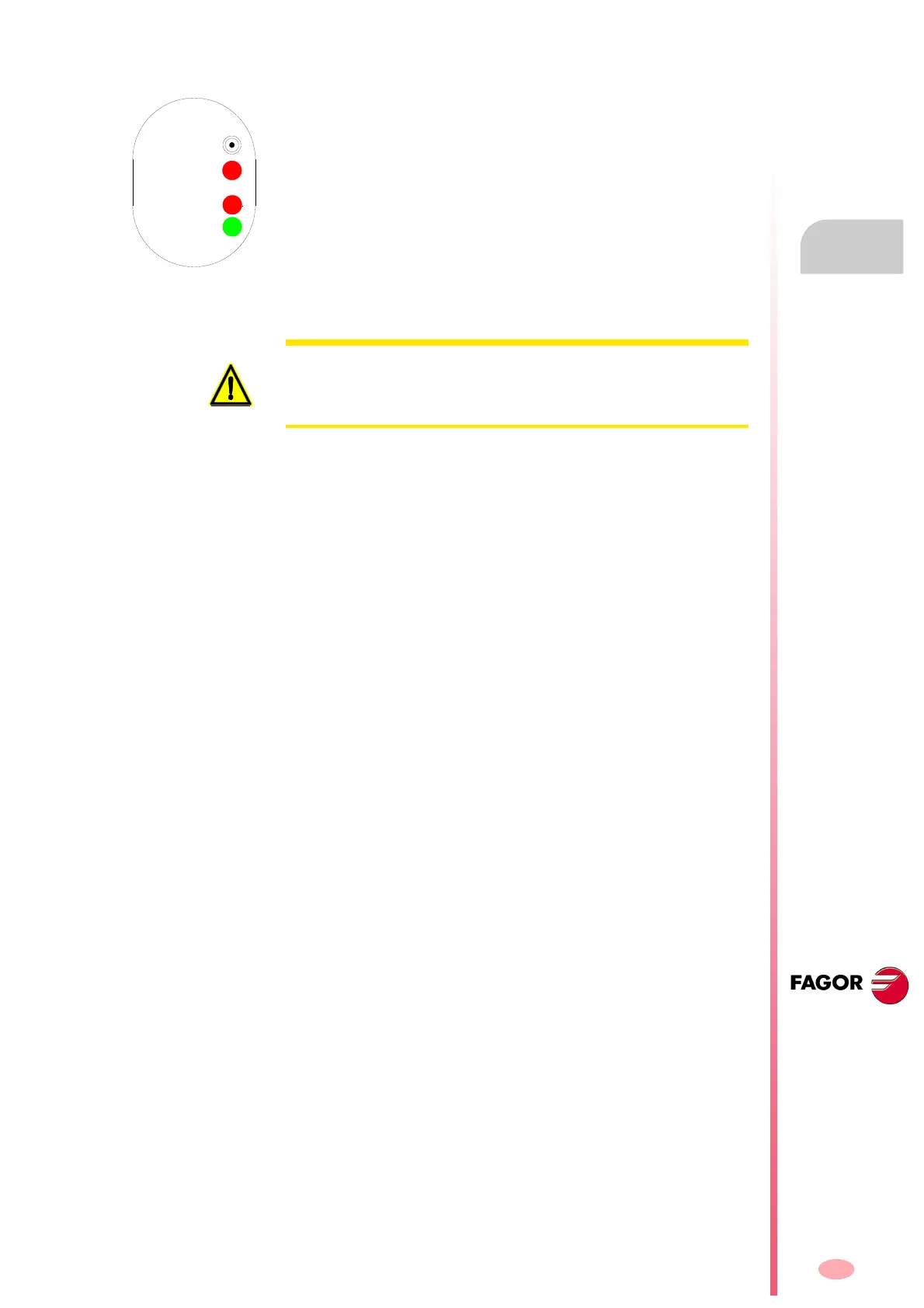

Status indicator lamps
The auxiliary power supply APS-24 has the following indicator lights that
inform about its running status.
OVER VOLTAGE. Red LED. Output over-voltage. It has exceeded 28
V DC and interrupts its operation.
OVER CURRENT. Red LED. Output over-current. The power supply
has exceeded 10 A and its output voltage is less than 24 V DC.
ON. Green LED. It is working fine.
RESET. When the power supply quits working due to over-voltage, the
RESET button may be used to restart the system.
Other considerations
Chapter 8. INSTALLATION shows the strict rules that must be followed to
properly install the auxiliary power supply. Chapter
11. DIMENSIONS of
this manual shows their dimensions.
RESET
OVER VOLTAGE
OVER CURRENT
ON
WARNING. This APS-24 power supply is to be used to supply to the elec-
trical control circuits and signals to run the drive.
This module must never
be used to supply power to the brake of a motor.
The brake may gener-
ate voltage peaks that could damage the unit.
