Power supplies
94
2.
POWER SUPPLIES
Regenerative power supplies
62
DDS
HARDWARE
Ref.1310
Other connectors
X1 connector
The communication between all the modules that make up the DDS servo
drive system is established through connector X1.
A ribbon cable is provided with each module (power supply or drive) for
this connection.
X2 connector
The power supply module may be controlled through X2.
The internal circuits are protected with a 1.25 A fuse.
The following table shows the values for gap, tightening torque, sections
and other data of the plug-in connector for X2.

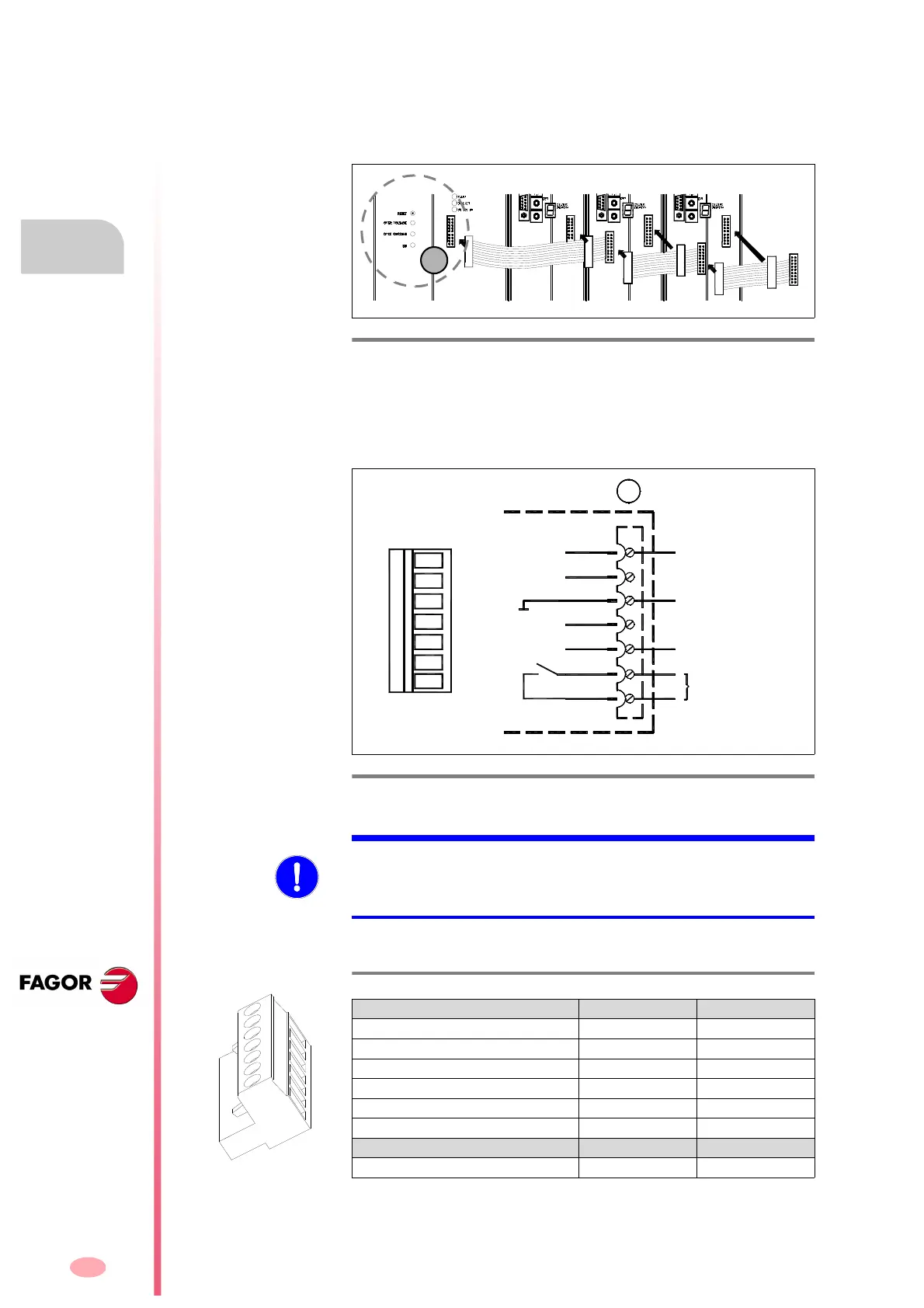

F. H2/23
Connection of the internal bus between modules through connector X1.
F. H2/24
Control of the power supply module through connector X2.
X1
1x
7
1
Gnd
System
Speed Enable
System ok
1
2
3
4
5
6
7
Phoenix
5.08 mm
X2
XPS-25
XPS-65
Error Reset
Phoenix
5.00 mm
MANDATORY. Remember that the internal circuits of PS-65A non-rege-
nerative power supplies must be powered by an external 24 V DC power
supply, “APS-24”; that's why its control connector has three terminals
more than connector X2 of the XPS.
T. H2/19 Data of the plug-in connector for X2.
Connector data XPS-25 XPS-65
Nr of poles 7 7
Gap (mm) 5.00 5.00
Min/max tightening torque (N·m) 0.5/0.6 0.5/0.6
Screw thread M3 M3
Min./max. section (mm²) 0.2/2.5 0.2/2.5
Rated current In (A) 12 12
Wire data
Length to strip (mm) 7 7
