DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 100
.
Step
Procedure

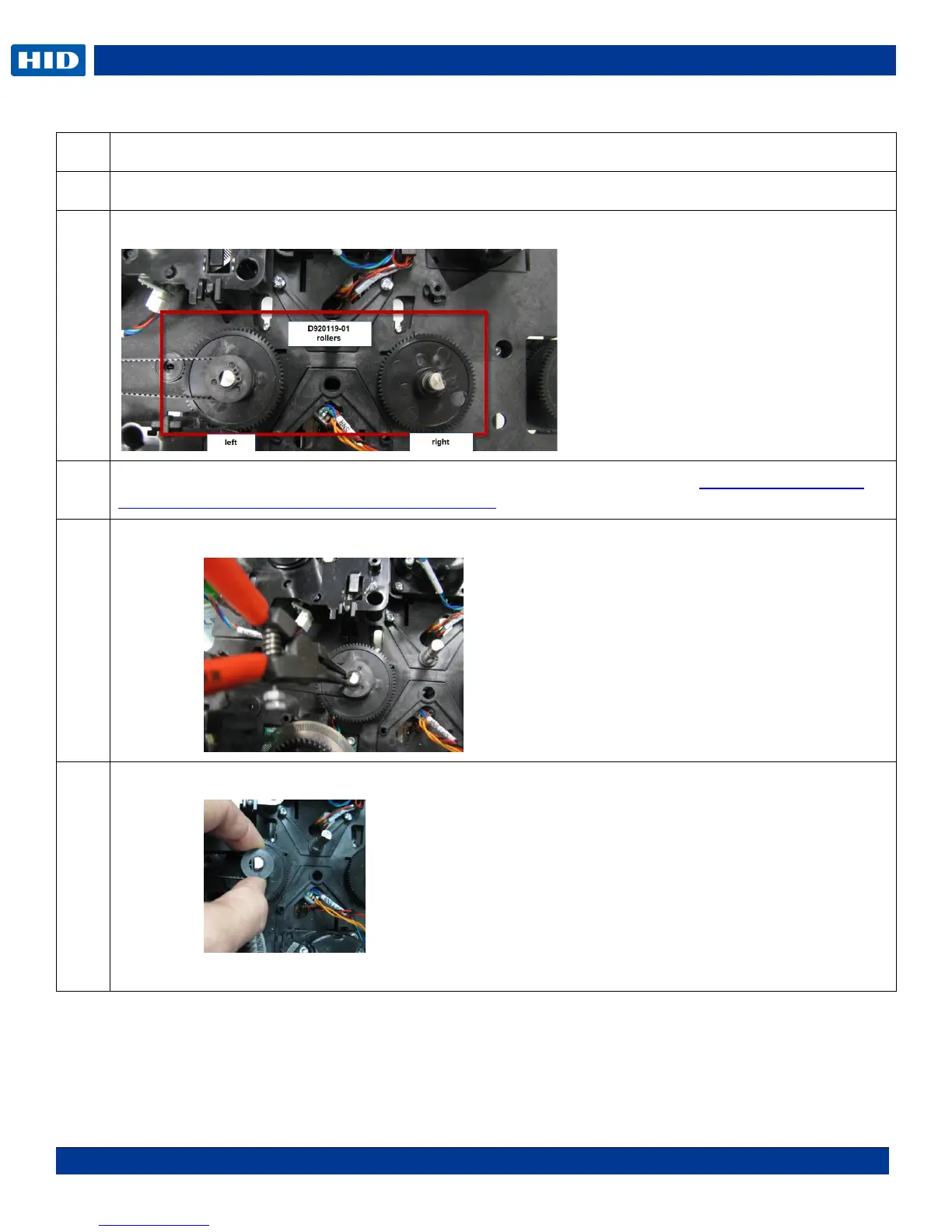

Replacing the Rollers (continued)
C-1
To replace D920119-01, High COF Feed Roller (Left Roller)
C-2
Remove the Lower Rewind Assembly to access the Left roller (D920119-01). Remove/Replace the
Rewind Motor Assembly RFID Board A000365-01
C-3
LEFT ROLLER: Remove the retaining ring ( 140048)
C-4
Remove the pulley (D850190).
TIP: When replacing the roller also replace the pulley D850190) for best results.
