Fargo DTC4250e - Remove;Replace Display Assembly

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 34
.

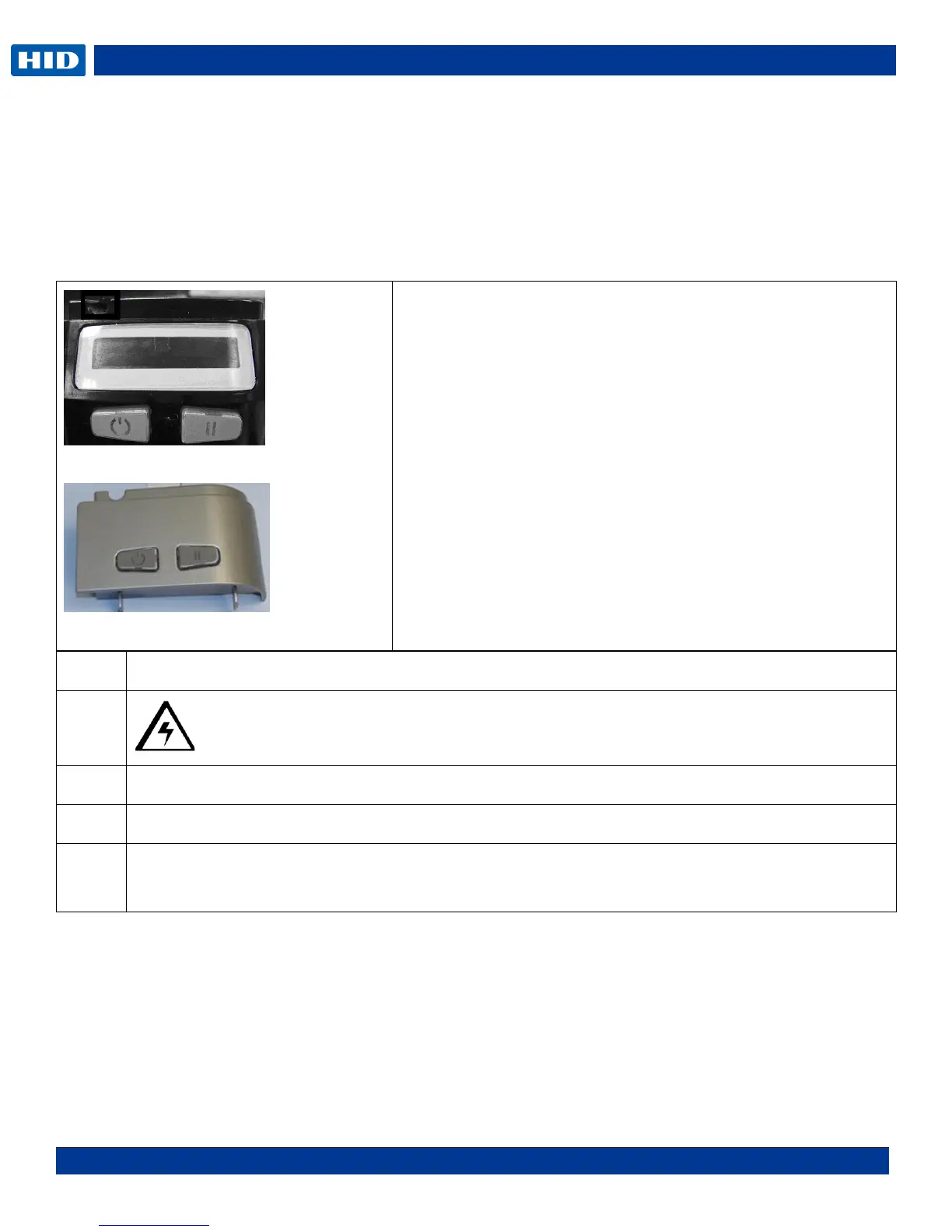

Remove/Replace the Display Assembly (MDP-00093 DTC4250e/4500e)
(MDP-00059 DTC1250e)
Contains Cover, PCB, LCD Buttons and Cable
The same procedure is used for either orientation of the LCD Display.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the top cover of the printer.
3
Pull forward on the display to un-snap from the bottom of the display. Lift out to remove.
4
Remove the ribbon cable (D930607)
(Also from the LCD PCB A930507-01-DTC4250e/4500e).
MDP-00093
MDP-00059
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 15 min
Preparation: Remove Top Cover
Important: This procedure can only be performed by
authorized service personnel.
LCD PCB (board only) DTC4250e 4500e A930507-01
LCD PBC (board only) DTC 1250e A930507
