Fargo DTC4250e - Remove;Replace Platen Roller & Pulley;Gear

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 47
.

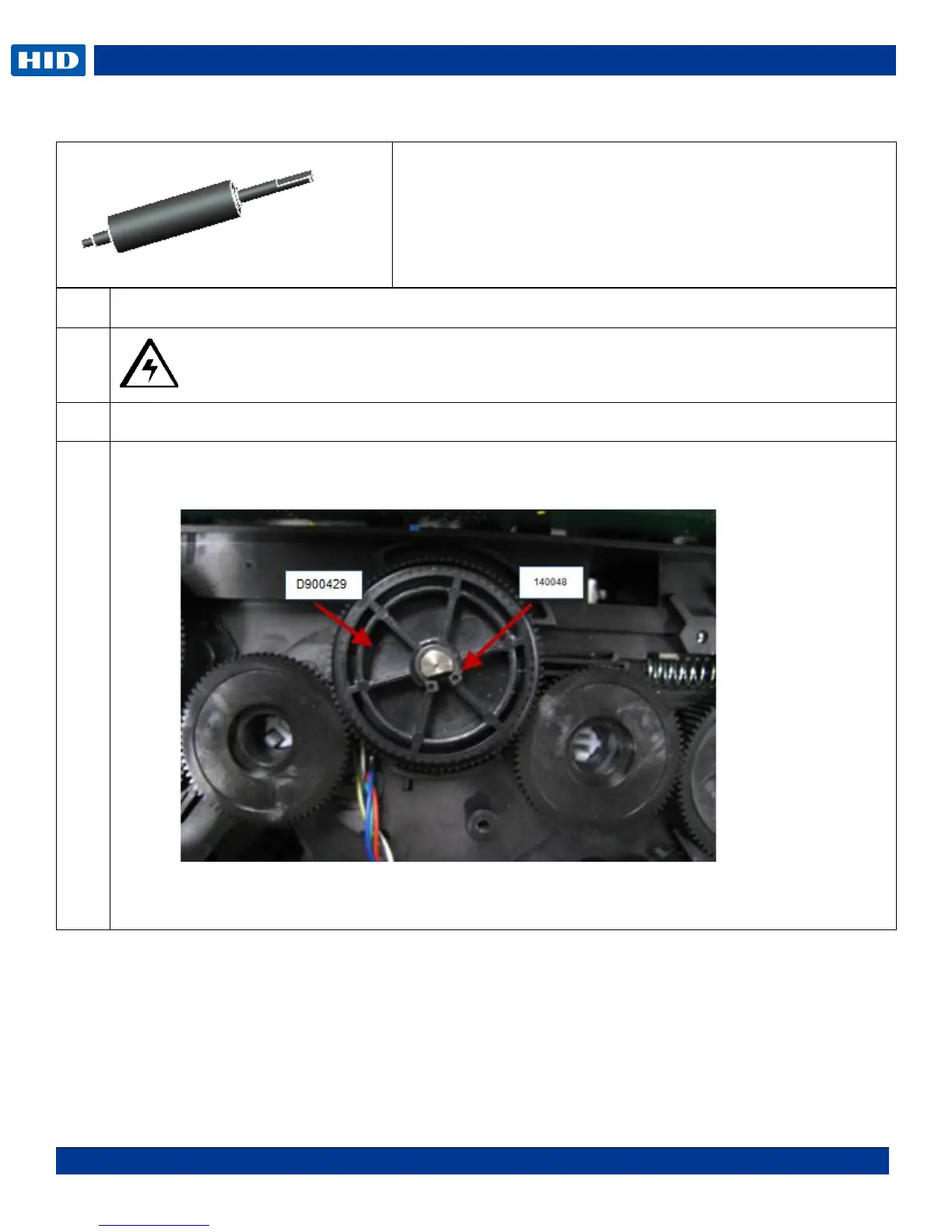

Remove/Replace the Platen Roller (D930120) & Pulley/Gear (D900429)
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Stepper Motor Assembly (E000062)
3
Remove the E Clip (140048) and the pulley/gear(D900429)
Remove washers from shaft.
(Replace the gear if necessary)
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 45 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
