Step
Procedure
3
Flip printer on front remove Output Roller (D930123) Pull straight up and out
4
Replace with new roller and replace the gear onto the roller.
Procedure completed.
5

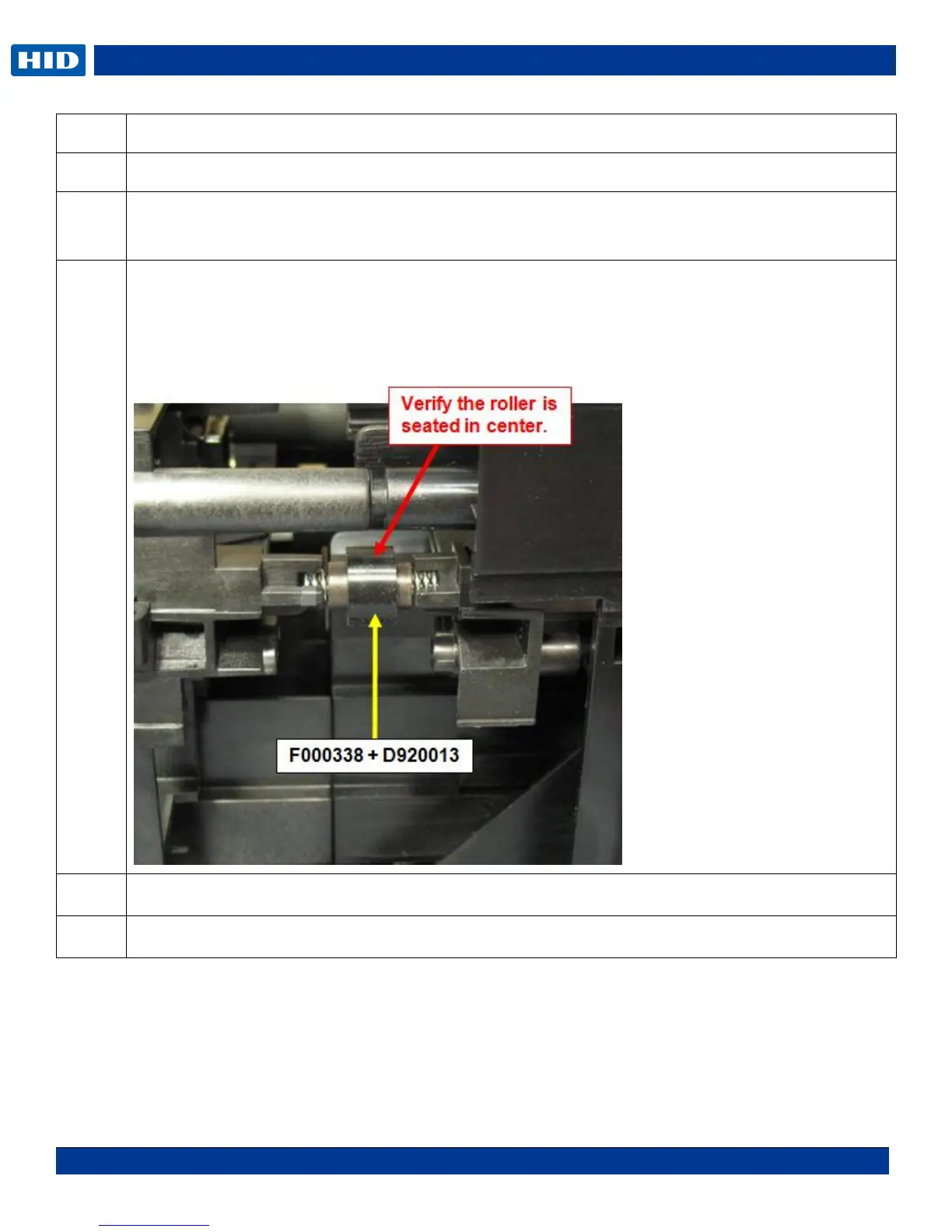

Pinch Roller and Spring
Remove the output roller first ( as stated above) and then remove the Pinch Roller
Use a small flathead screwdriver to release the spring (F000338) and the Pinch Roller (D920013).
Replace with new roller.
6
Reverse assembly to reinstall parts.
7
Procedure is complete.
