Fargo DTC4250e - Remove;Replace Headlift Sensor;Cable

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 85
.

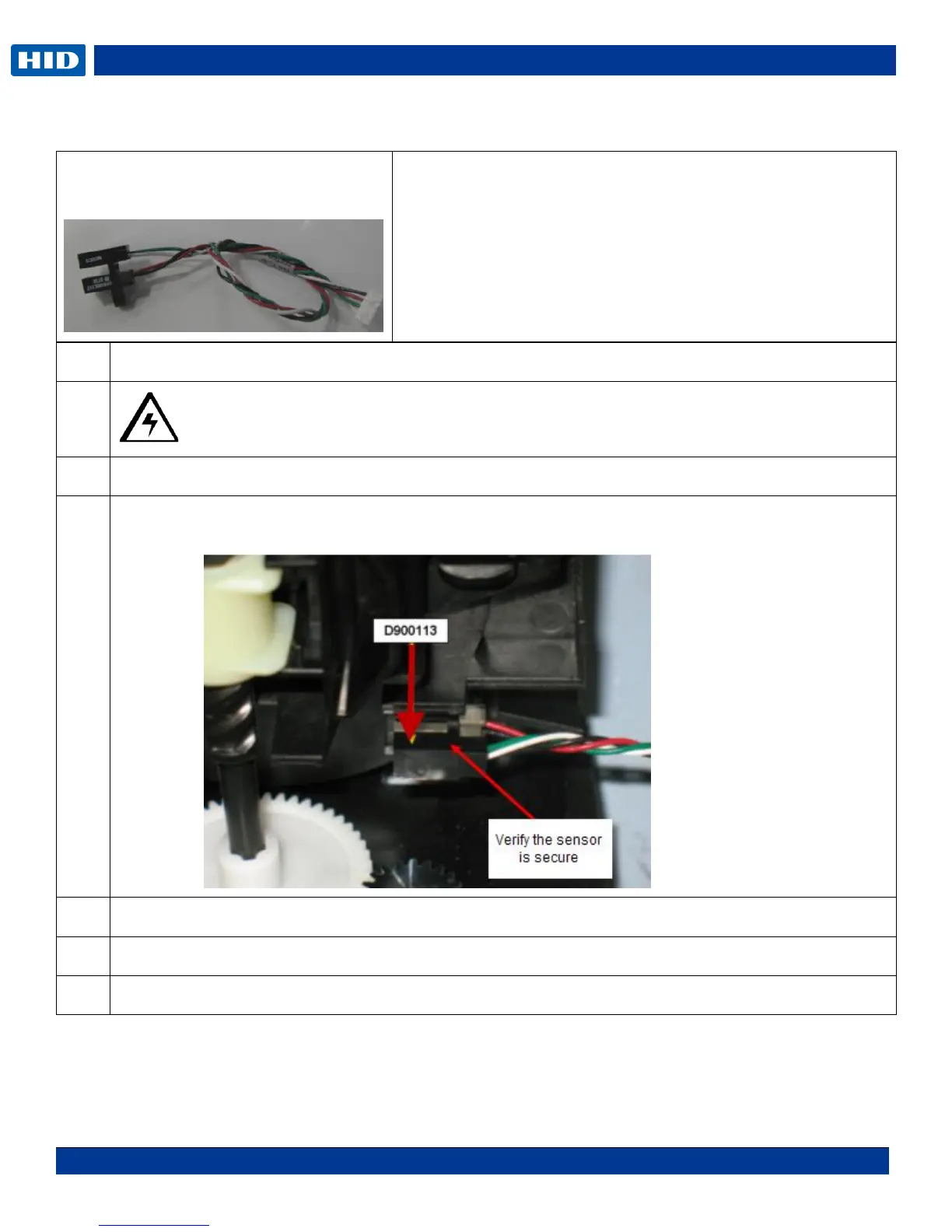

Remove/Replace the Headlift Sensor/Cable- D900113
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Flipper Covers.
3
Pull the Headlift Sensor OUT towards the stepper motor gear to release from the frame. Sensor does
not come out with breaking the sensor or tab.
4
Replace sensor by snapping IN the slot provided.
5
Reverse assembly
6
Procedure is complete
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 20 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
