Remove/Replace the Lamination Module Rollers
Roller- Feed High Cof (D920119-01)
Roller- Input Flipside (D920218)
Roller- Input (D920015)
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.

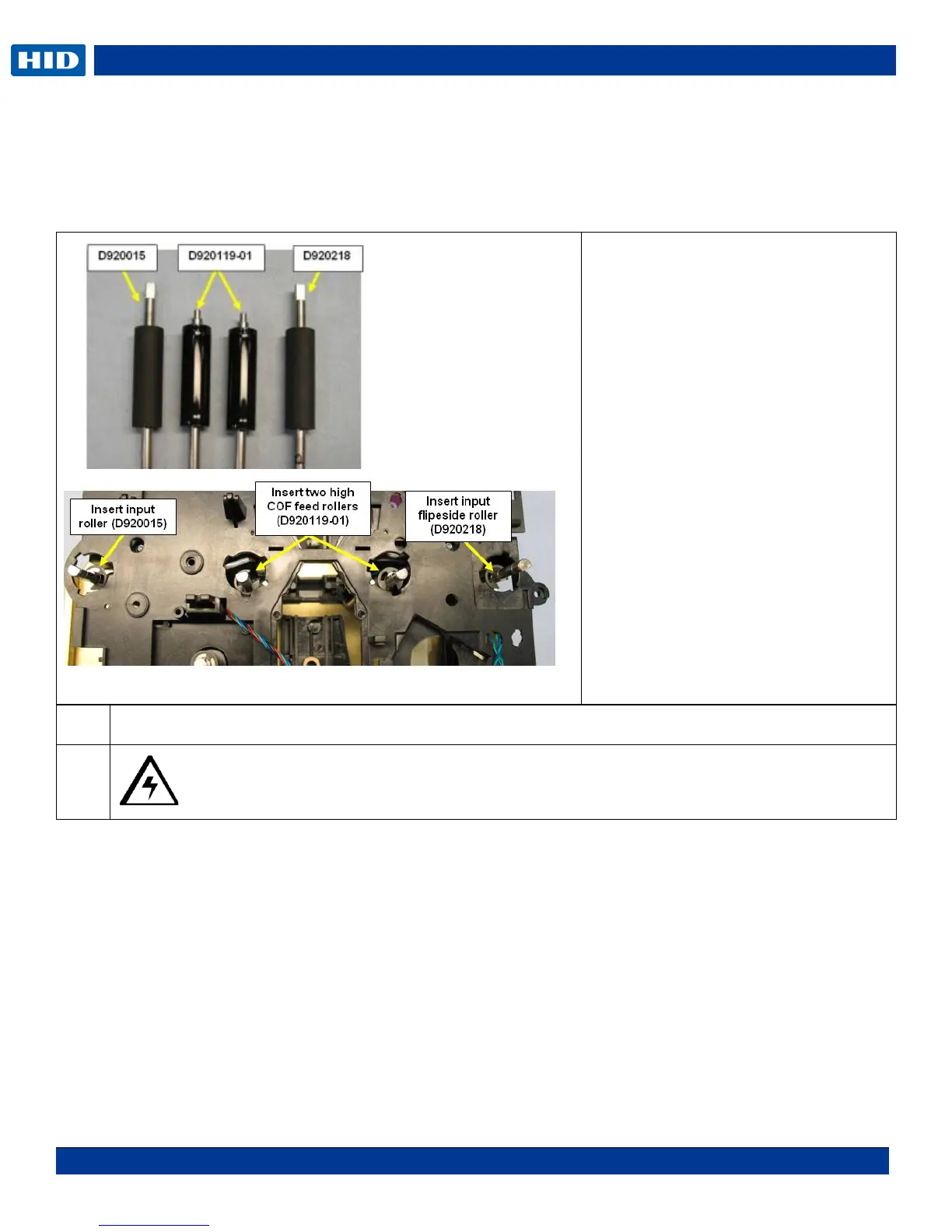

Roller placement shown
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 30 min
Preparation: Remove the Lamination
Module Covers.
Important: This procedure can only
be performed by authorized service
personnel.
