DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 96
.
Step
Procedure
A-2

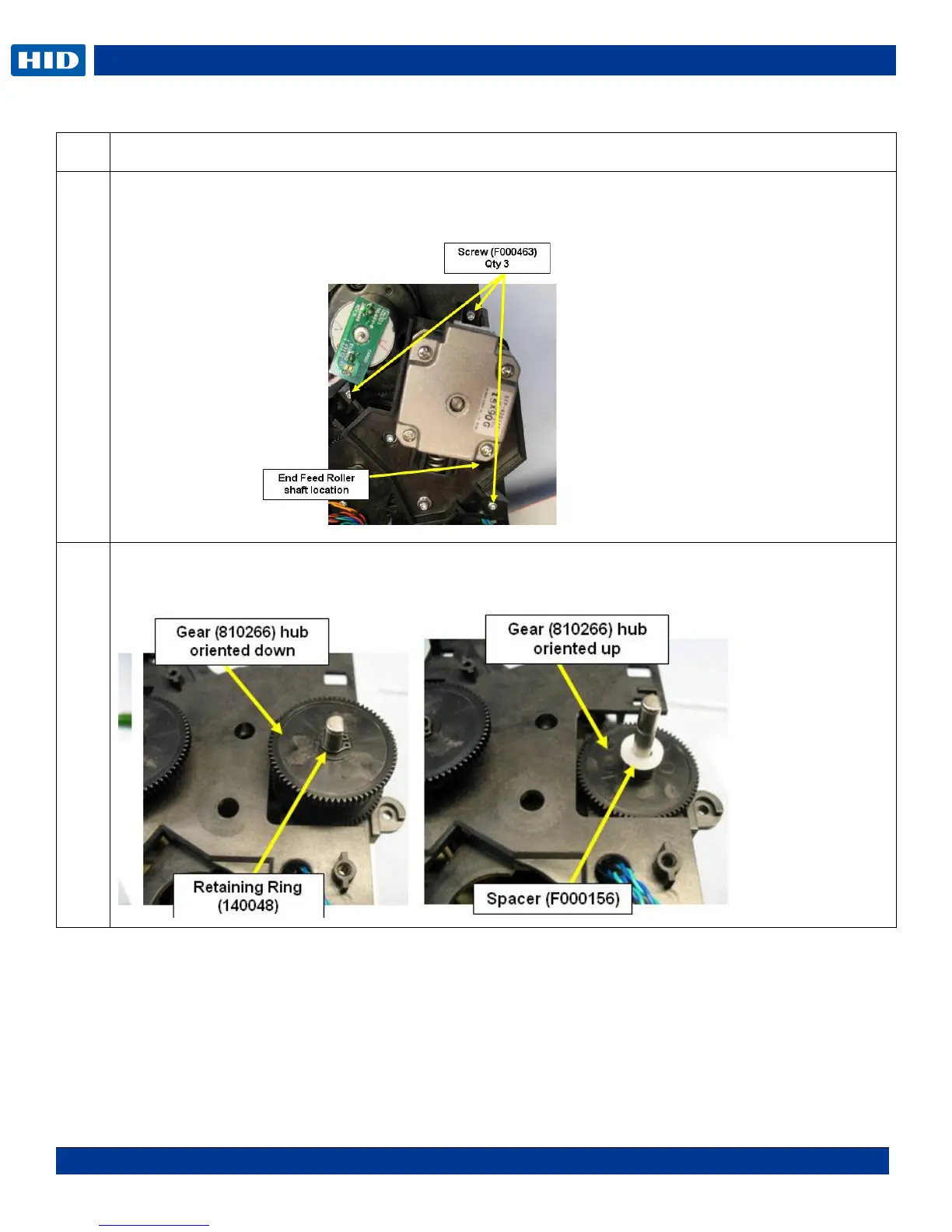

To replace D920218, Input Flipside Roller
Remove the 3 screws (F000463) from the Stepper Motor Assembly.
NOTE: Wire Routing
A-3
Remove the retaining ring (140048) gear ( 810266) , white spacer ( F000156) and gear (
810266)
