DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 97
.
Step
Procedure
A-4

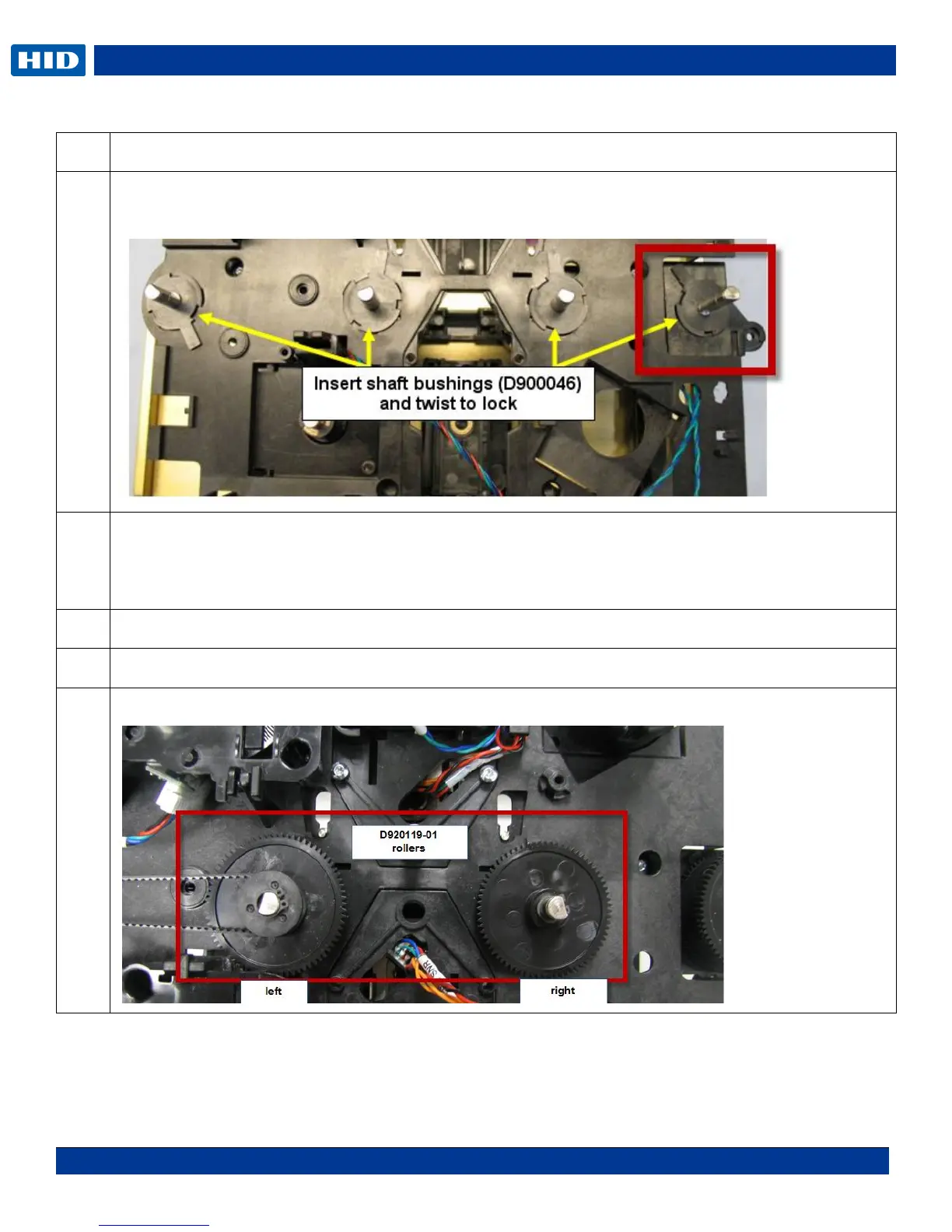

Unlock the shaft bushing (D900046) by twisting it counter clock wise.
(TIP: Lift UP on the tab to unlock the pin underneath the tab.)
A-5
Replace with the new roller (D920218).
Insert and secure into the brass bushing on the frame.
Use the E CLIP from the old roller. Make NOTE: of how this is placed on the roller.
A-6
Reverse assembly to complete the roller replacement.
Replacing the Rollers (continued)
B-1
To replace D920119-01, High COF Feed Roller (Right Roller)
