DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 11
.
Step
Procedure
2

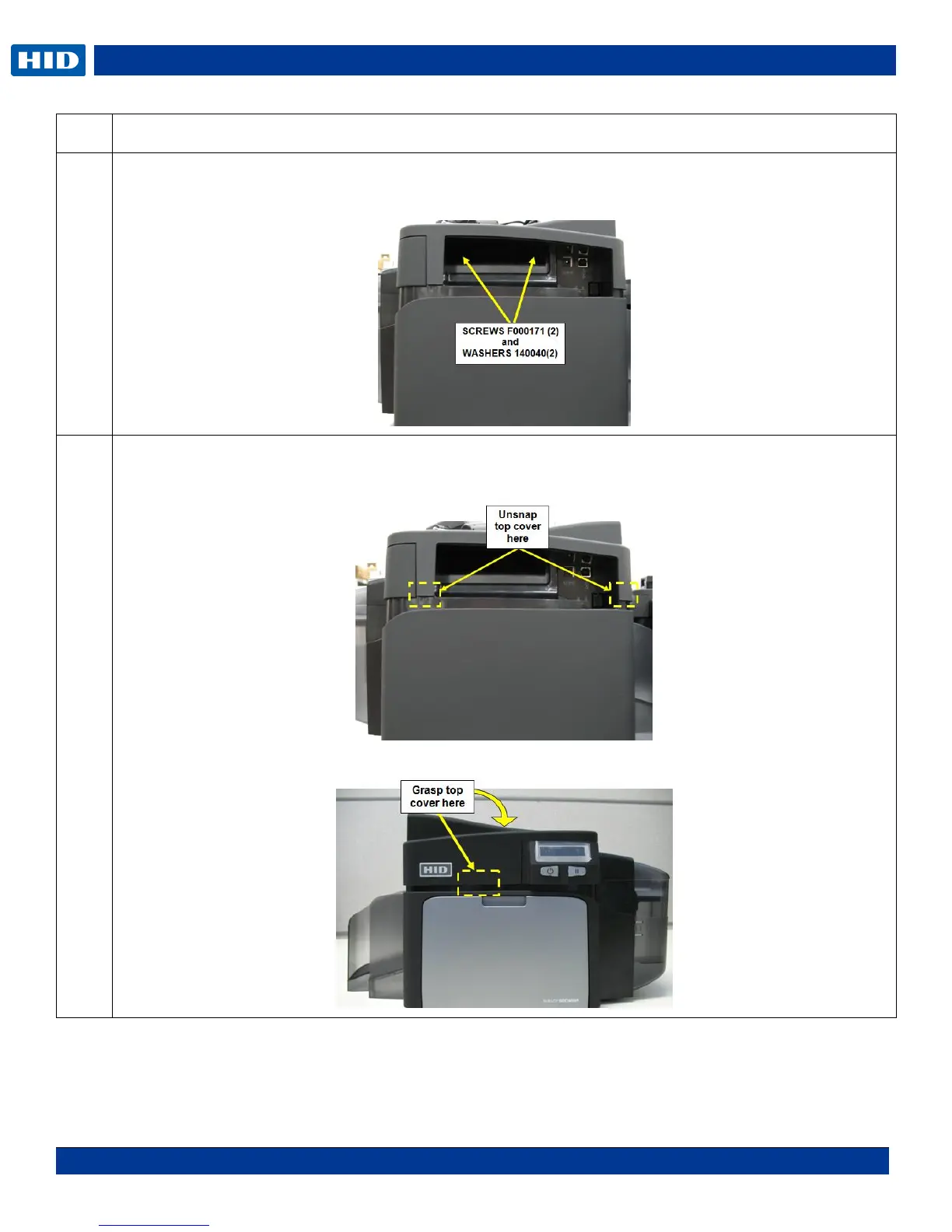

Remove the Top Cover first in order to access the Flipper Module screw attachment.
From the back of the printer locate and remove the 2 screws and washers.
3
Remove the Top Cover.
Unsnap the release tabs located on the back of the printer.
Lift the Top Cover from the front edge and tilt up, back and off.
