Fargo DTC4250e - Page 118

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 118
Step
Procedure
11

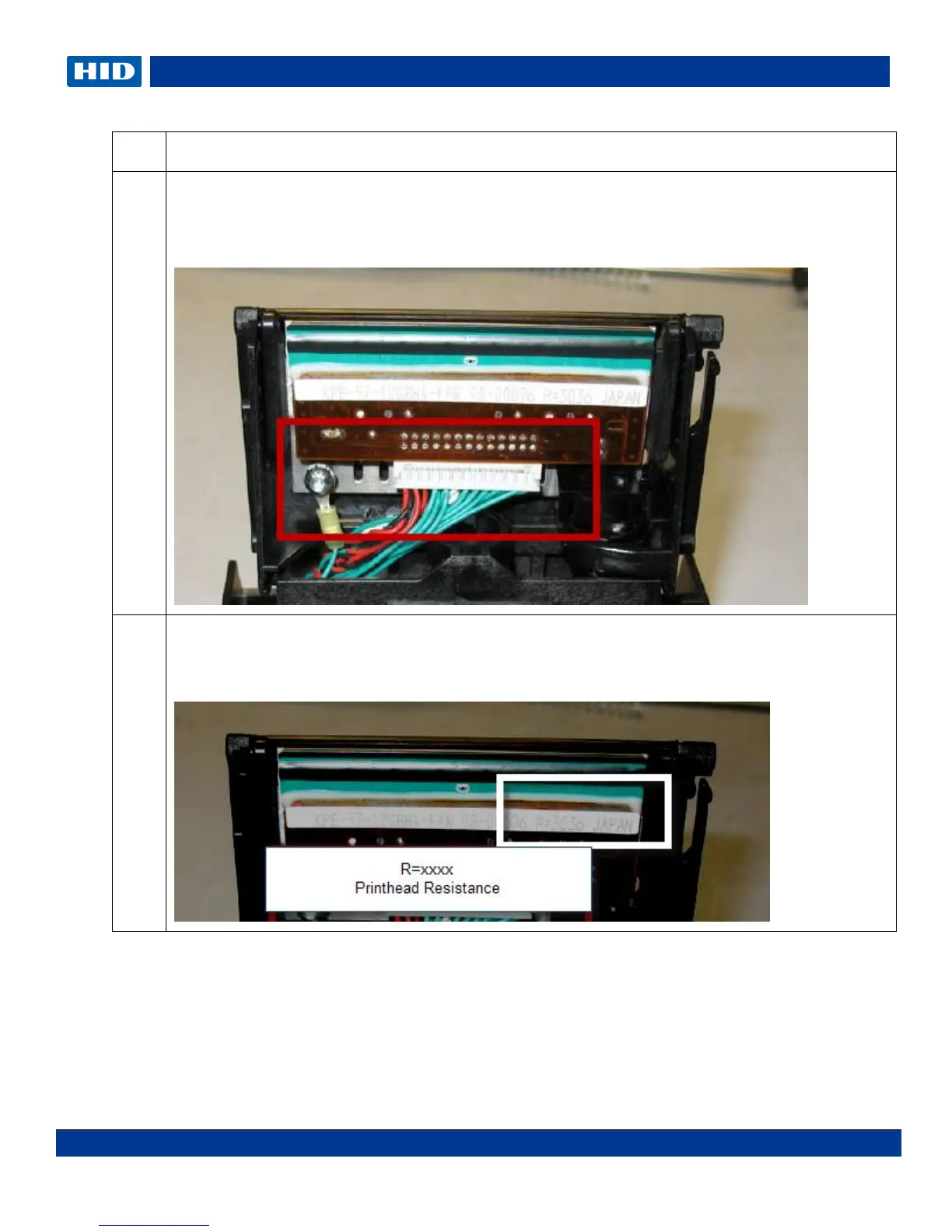

Remove the cable (D930602). Be careful not to damage the pins.
Remove the Torx screw (F000170) and release the ground cable.
Leave the wires in the main assembly.
12
Before installing the new Printhead make NOTE: of the R=xxxx value. This number will be
used after the Printhead is installed and ready to make the final adjustment.
See Advanced Adjustments below.
