DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 39
.
Step
Procedure
9

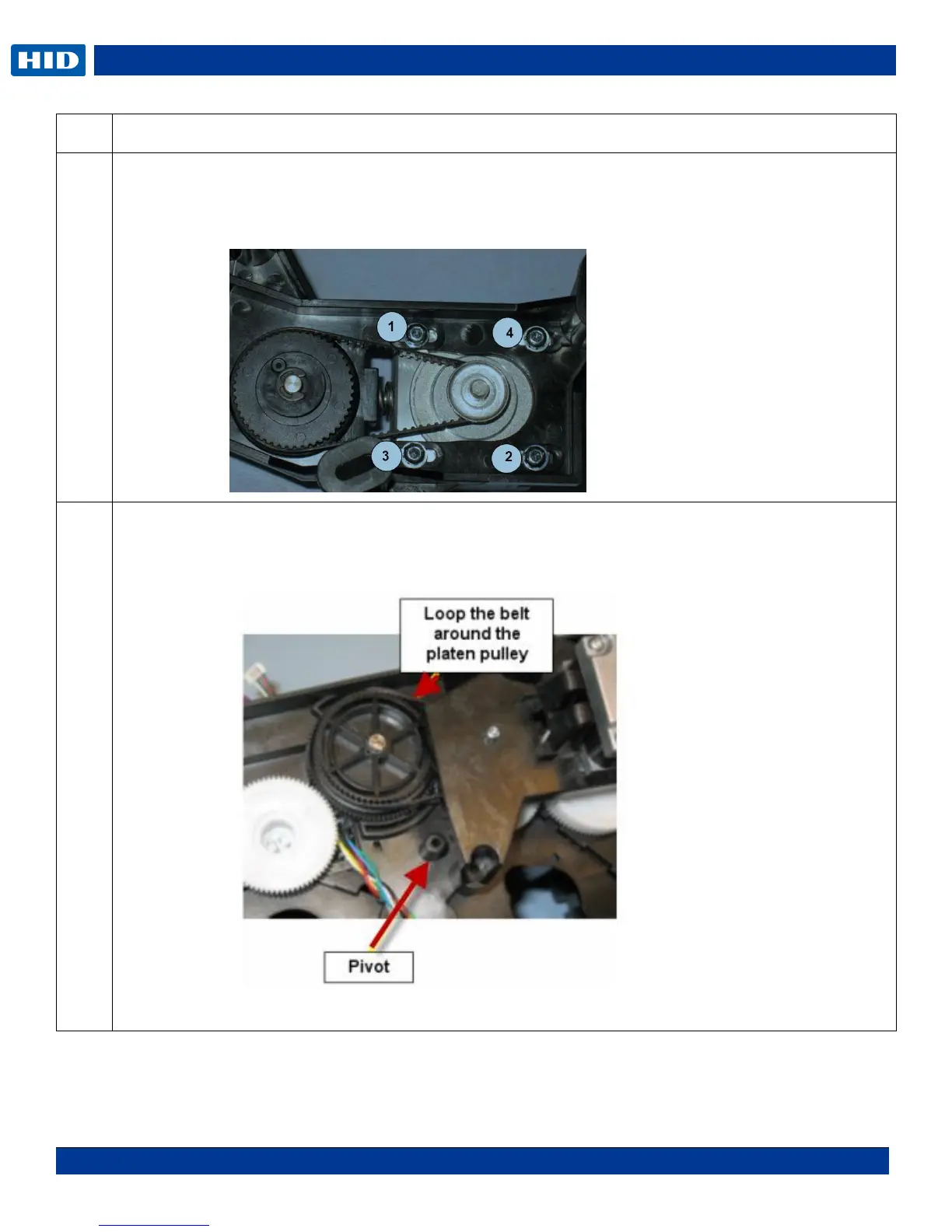

This Stepper Motor Mount provides a self tensioning feature.
Keep the four (4) screws loose while holding the Mount Frame.
Allow the spring to self-tension, then tighten the four (4) screws.
10
Install belt on stepper motor assembly and then loop the belt w/stepper drive assembly around the
platen roller shaft gear.
Place the Stepper Mount over the pivot peg.
