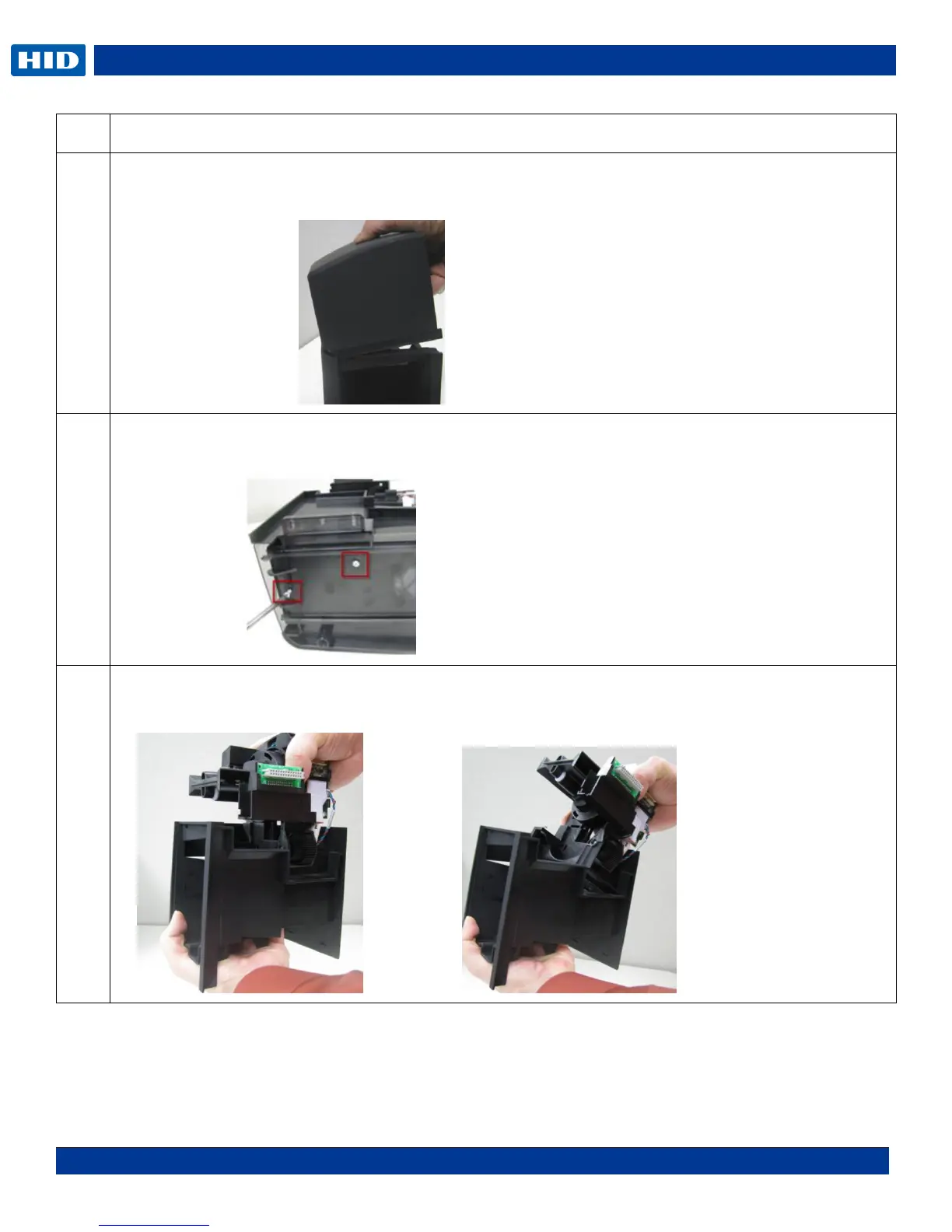

Step
Procedure
3
Remove the Dual-Sided Printing Module Top Cover.
Grasp the cover from the open end and tilt forward to unlatch the front tabs.
4
Remove the Flipper Base Cover: Turn the module over and use a T10 Torx screwdriver to remove
the 2 screws of the bottom plate.
5
Grasp the module with 2 hands and tilt back and up.
TIP: Use your hand from underneath to push the inner wall OUT for easier release of the tabs.
