Step
Procedure
5

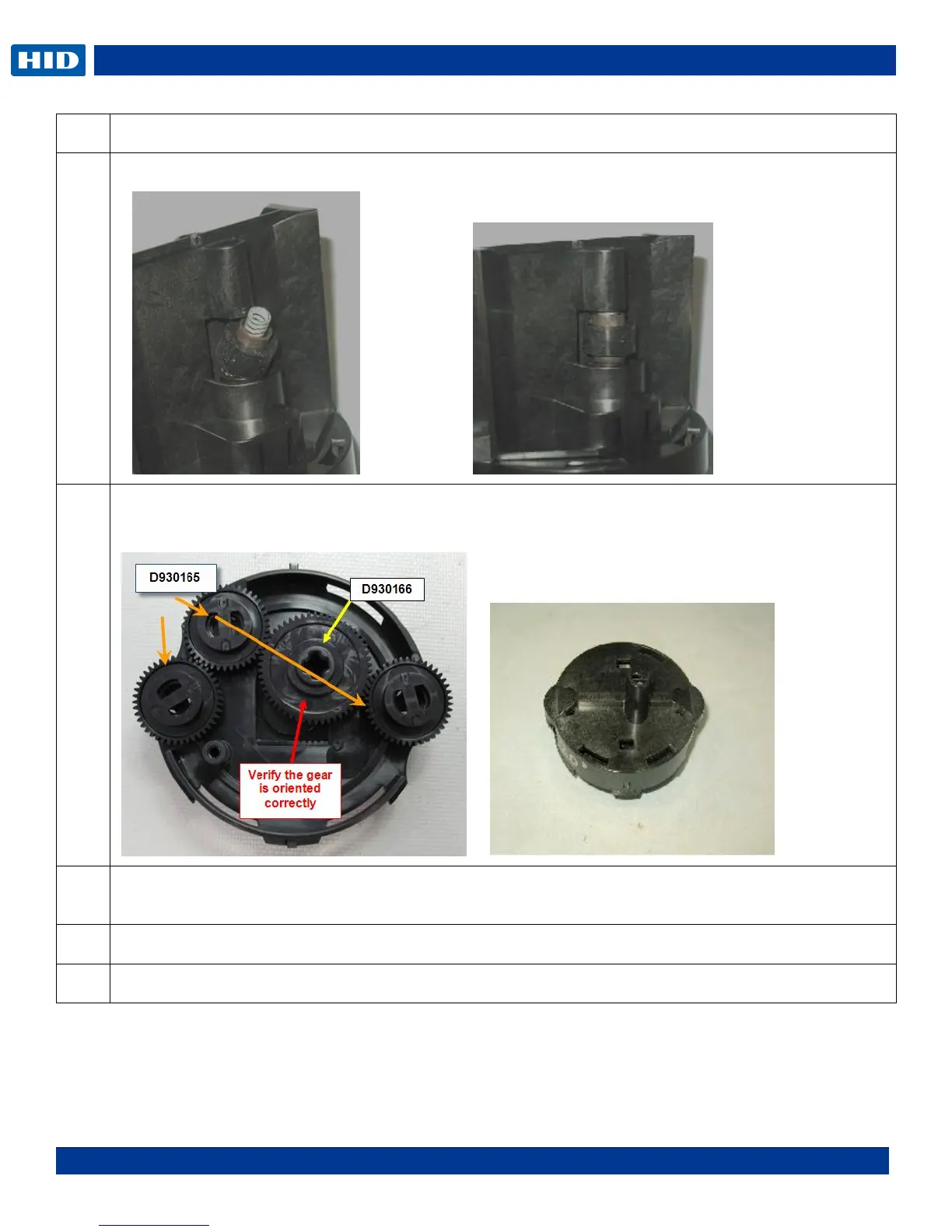

Pinch Roller (D920013) Insert spring into the roller and line up one end at a time.
6
Gear (D930165 –D930166) placement shown below for pivot bracket.
Verify the assembly is fully snapped together if these are replaced.
7
When re-assembling the table verify the LEAD Screw and gears move freely up and down and can
rotate the table.
8
Replace the Bushing Screw Twist Lock to secure the Lead Screw.
9
Procedure is complete.
