Faro FOCUS - Occlusion Examples

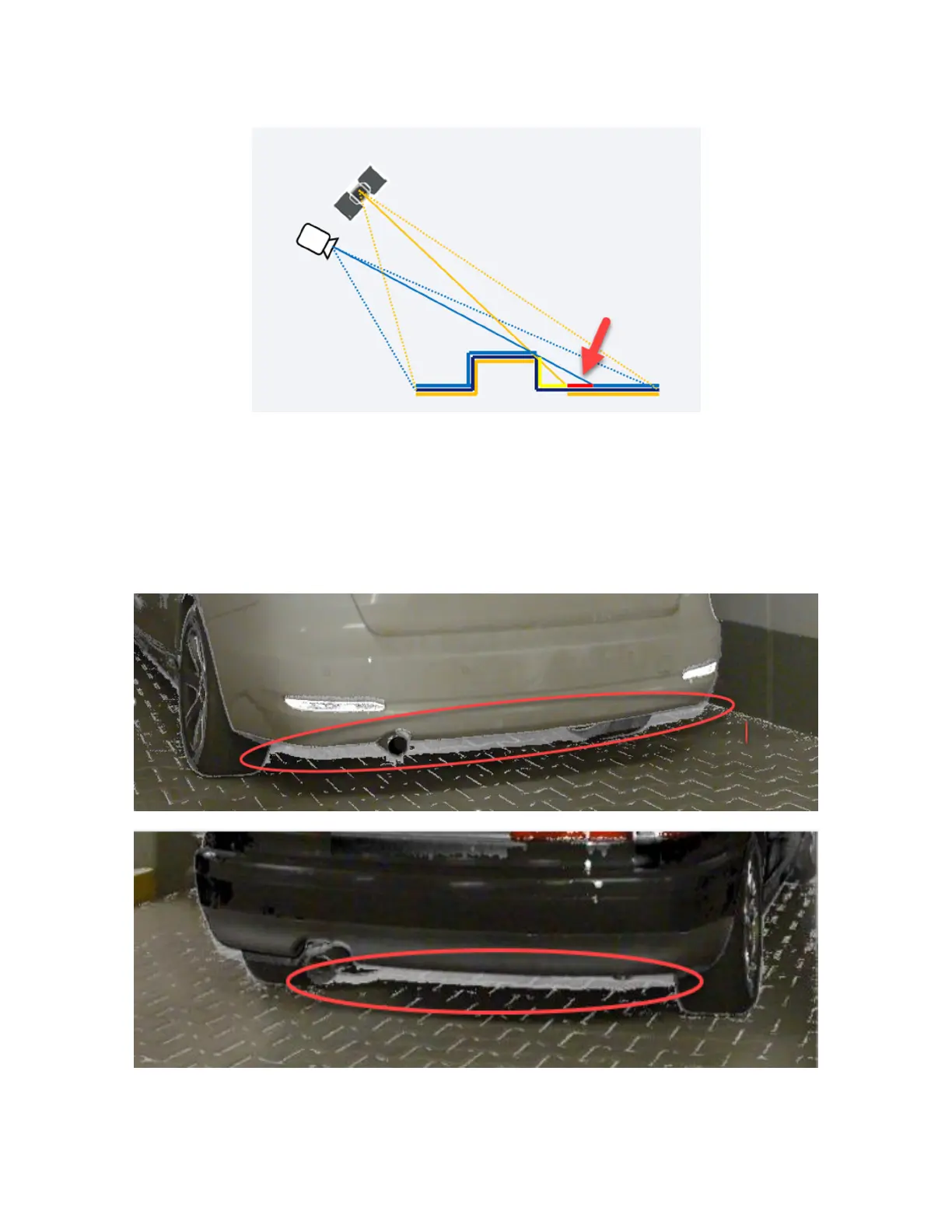

Theareainredwasdetectedduringpost-processing,andasaresult,notcolorized.Theareaiscoloredwith
laserintensitydata(grayvalues)duetothemissingcolorinformationcausedbytheocclusion.
Thebestwaytoreduce,oreliminateocclusionsentirely,istocaptureagreaternumberofscansinareas
withcomplexstructuraldetail.
OcclusionExamples
Followingareimagesthatshowocclusions(circledinred):
FARO
®
FOCUS® Laser Scanner Accessories Manual
Chapter 5: PanoCam
FARO FOCUS® LASER SCANNER (00.00) Page33of36
