2.3.3 Split Point Observation
The state of split point will influence the print effects and stability.
The quality of the split point is depends on these three points below:
■
Appropriate and stable ink pressure.
■
Accuracy ink VMS.
■
Proper modulation configuration.
Observation method is as follows:
1. Take out the magnifying glass from the accessories. Put it in front of
the red stroboscope in print head about 15mm.
2. Adjust the focus to observe the split point.

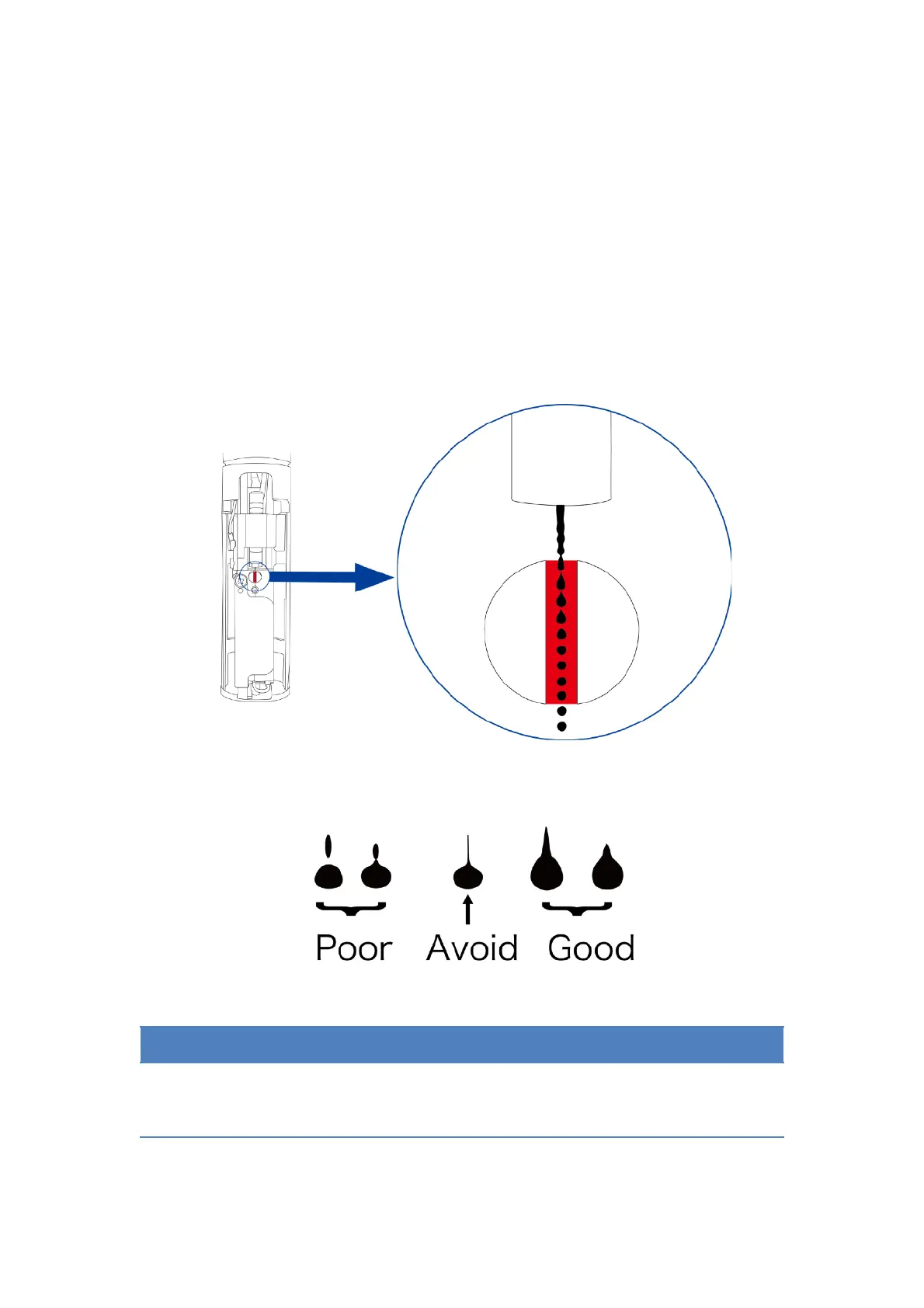

Figure 2-7. Split point.
3. The state of split points can refer to following :
Figure 2-8. Split point.
Note
Set modulation can change the state of the split point. Enter into
Configuration, select Modulation Set Level to set the modulation.
