Fastjet A400 Series User Manual

2.6.3 Counter
The counters ( Serializers )
Do the following tasks to add counter user field in User Fields.
1. Select User Field menu. Select New User Field and press Enter
key. The New User Field dialog box appears.
2. Enter a name for the Counter User Field.
3. Use the Left arrow key and Right arrow key to select Counter as
the descriptions, and press the Enter key to open counter dialog
box for counter.
4. Use the Left arrow key and Right arrow key to select Counter as
the descriptions, and press the Enter key to open counter dialog
box for counter(Figure 2- 15).
5. Set the values for all area in the Counter User Field dialog box.
6. Press the Enter key to save and exit.

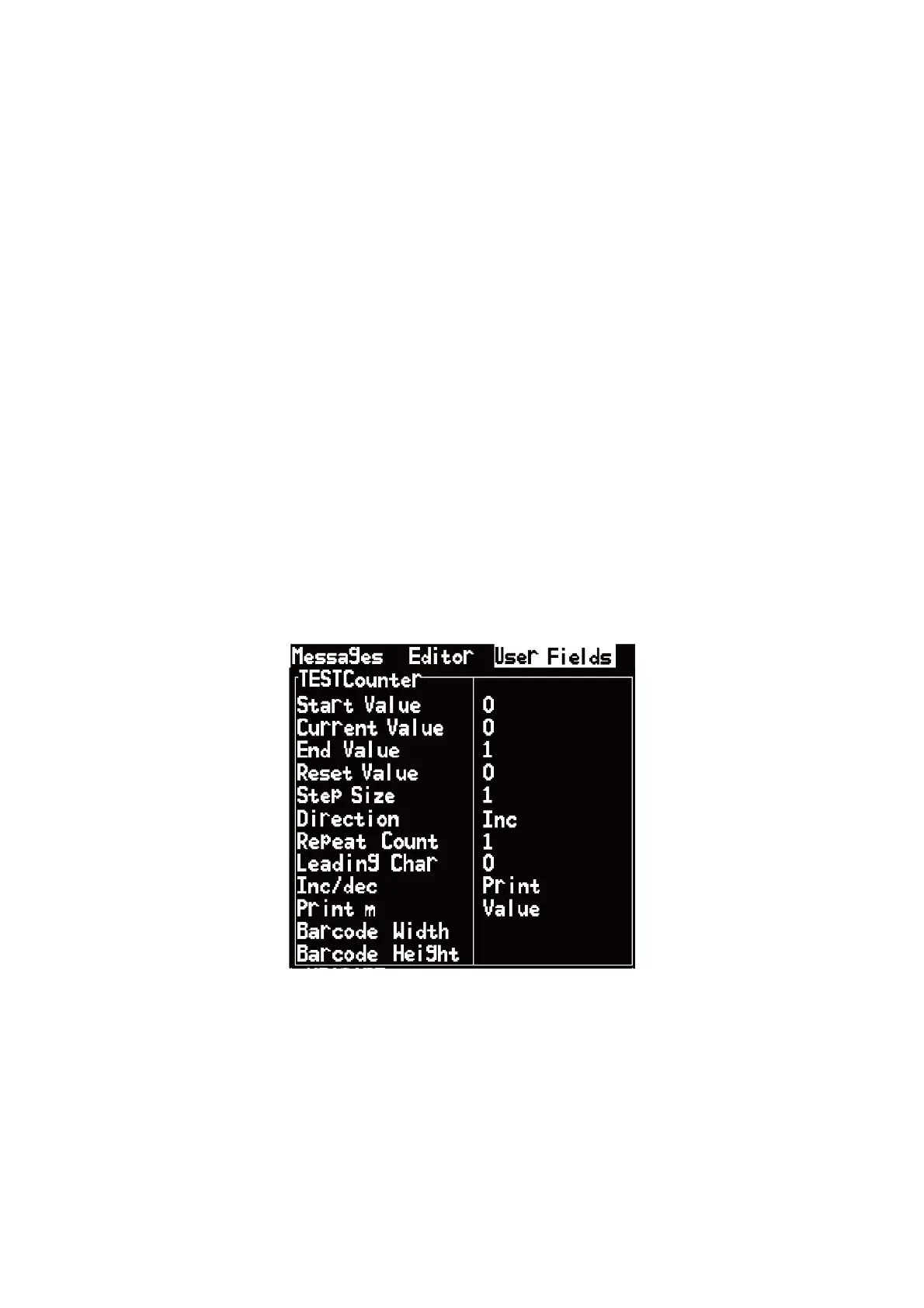

Figure 2-15 Counter User Field Editor screen
 23
