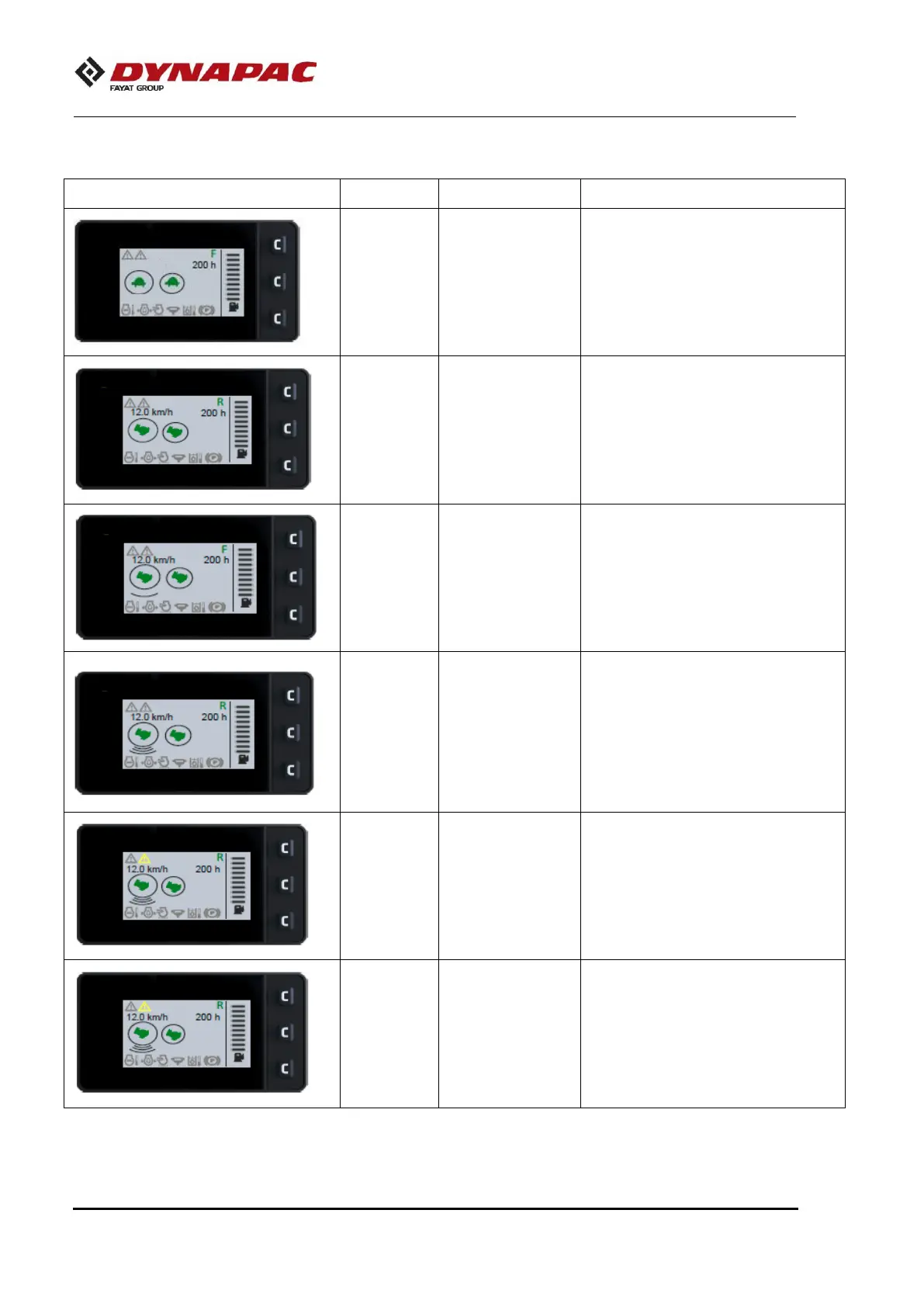

Machine Description – Instruments/Controls
01-06-2022 4812134740EN 52




NA
Symbolic
representation
of working mode
Switched ‘ON’ Low speed button
and check symbol as per beside
with tortoise curve inside the
drum (this will appear when low
speed activated)
NA
Symbolic
representation
of Travel mode
Switched ‘ON’ Low speed button
and check symbol as per beside
with tortoise curve inside the
drum (this will appear when low
speed activated)
NA
Symbolic
representation of
Vibration 'ON' in
low amplitude
Switched 'ON' vibration in low
amplitude & check symbol as per
beside snap with single curve
below drum (this will appear
whenever machine running in
Vibration low mode only)
NA
Symbolic
representation
of Vibration 'ON'
in high
amplitude
Switched 'ON' vibration in high
amplitude & check symbol as per
beside snap with dual curves
below drum (this will appear
whenever machine running in
Vibration high mode only)
NA
Water In Fuel
When water detected in fuel;
immediately symbol should
come with yellow colour alert.
NA
Malfunctioning
indicator
During malfunction indicator
error from engine: Immediately
symbol should come with yellow
colour alert
