Maintenance - 2000h
4812163801.pdf 2019-04-30
Radiator - Check/Cleaning

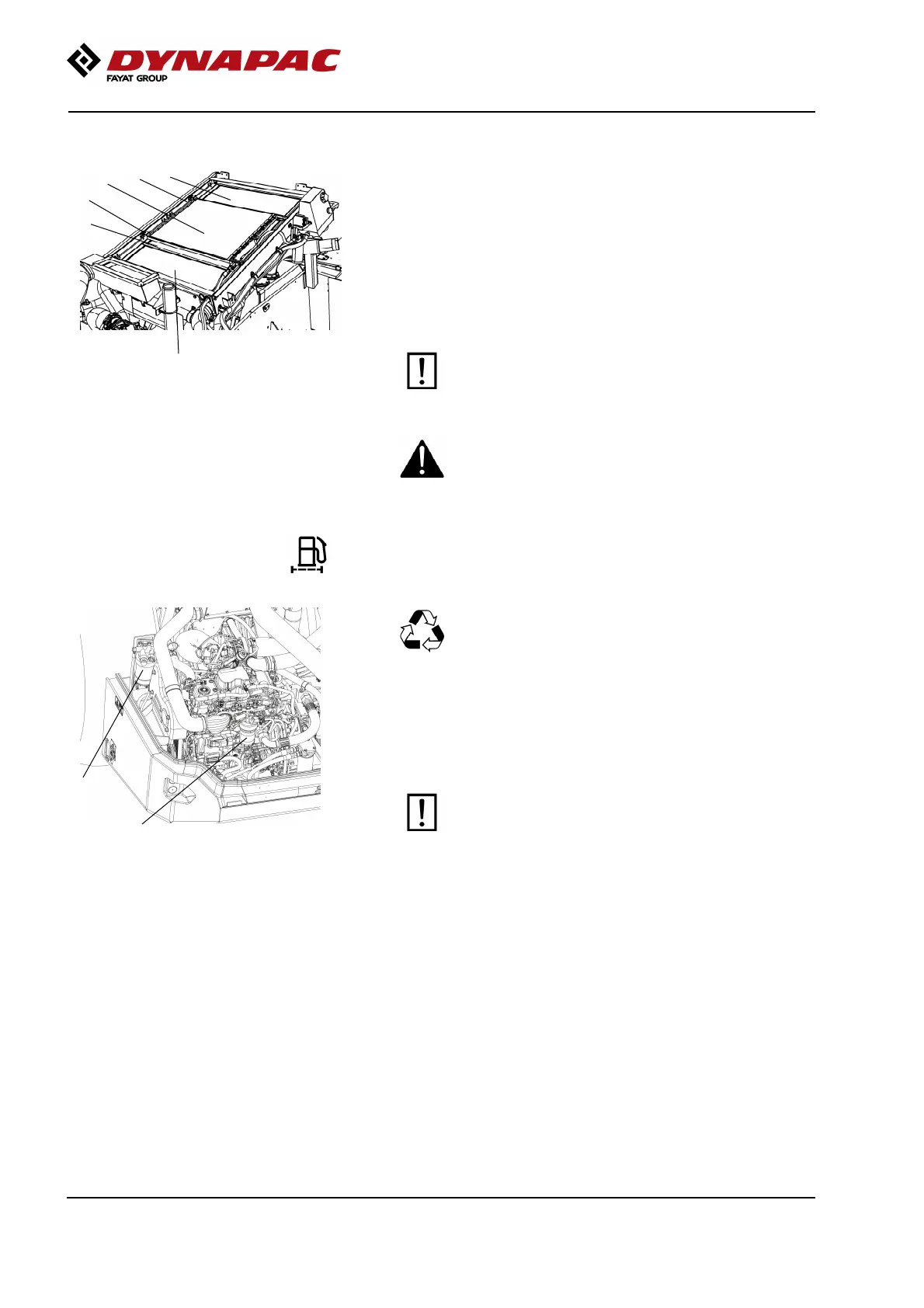

Fig. Engine compartment
1. Water cooler
2. Charge air cooler
3. Hydraulic fluid cooler
4. Condenser element AC (Optional)
5. Screws (x 2)
1
2
3
4
5
5
Check that air can pass unobstructed through the
radiators (1), (2) and (3).
Clean a dirty radiator using compressed air or a
high-pressure water jet.
Undo the two screws (5) and tilt the condenser
element upwards.
Blow air or direct water through the cooler in the
opposite direction to that of the cooling air.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Wear protective goggles when working with
compressed air or high-pressure water jets.
Wear protective goggles when working with
compressed air or high-pressure water jets.
The engine fuel filter - replacement/cleaning
Fig. Engine compartment
1. Fuel filter
2. Fuel prefilter
2
1
Place a container underneath to collect fuel that
runs out when the filter is released.
Place a container underneath to collect fuel that
runs out when the filter is released.
Screw off the fuel filter (1). The filter is of the
disposable type and cannot be cleaned. Han in to
environment-friendly station.
Refer to the engine manual for detailed
instructions when replacing the fuel filter.
Refer to the engine manual for detailed
instructions when replacing the fuel filter.
Unscrew the lower part of the fuel prefilter (2) and
drain off any water, and then replace the filter unit.
Start the engine and check that the fuel filters are tight.
N.B. Under no circumstances may new fuel filters be
pre-filled with fuel before assembly due to the
demands on the cleanliness of the fuel system. Use
the hand pump on the fuel prefilter to fill from the
machine's fuel system.
