Operation
4812163801.pdf2019-04-30

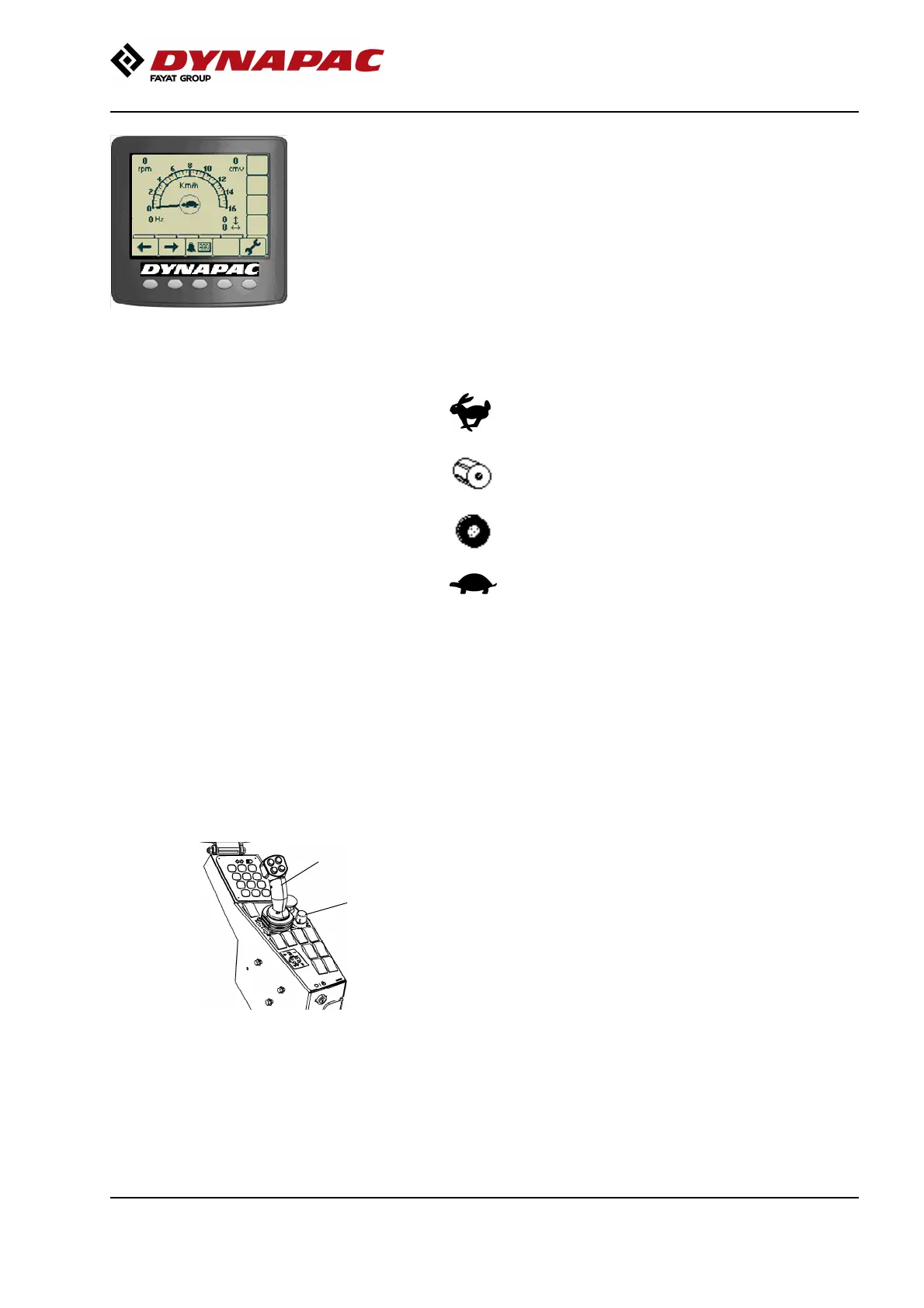

Fig. The display shows the selection in
the middle (tortoise, drum spin, wheelspin
or hare).
The machine's gear position is shown in the center of
the speedometer; select the gear/speed for the task.
The machine does not need to be stopped to change
gear position.
Max. speedMax. speed
= Rabbit (4) 11,5 km/h 7 mph= Rabbit (4) 11,5 km/h 7 mph
= Drum spin (2) 8 km/h 5 mph= Drum spin (2) 8 km/h 5 mph
= Wheel spin (3) 7,5 km/h 4.5 mph= Wheel spin (3) 7,5 km/h 4.5 mph
= Turtoise (1) 5,5 km/h 3.5 mph= Turtoise (1) 5,5 km/h 3.5 mph
Example is CA2500D, TC - Limited Slip Rear Axle (for other
alternatives see table in section for Technical data)
Carefully move the forward/reverse lever (2) forwards
or backwards, depending on which direction of travel
is required.
The speed increases as the lever is moved away from
the neutral position.
2
1
Fig. Control panel
1. Potentiometer (speed limiter)
2. Forward/Reverse lever
Machine with speed limiter (speed potentiometer) -
Optional.
Set the potentiometer (1) for variable speed setting in
the required mode.
The machine's gear position is shown in the center of
the speedometer. Select the gear/speed for the task.
