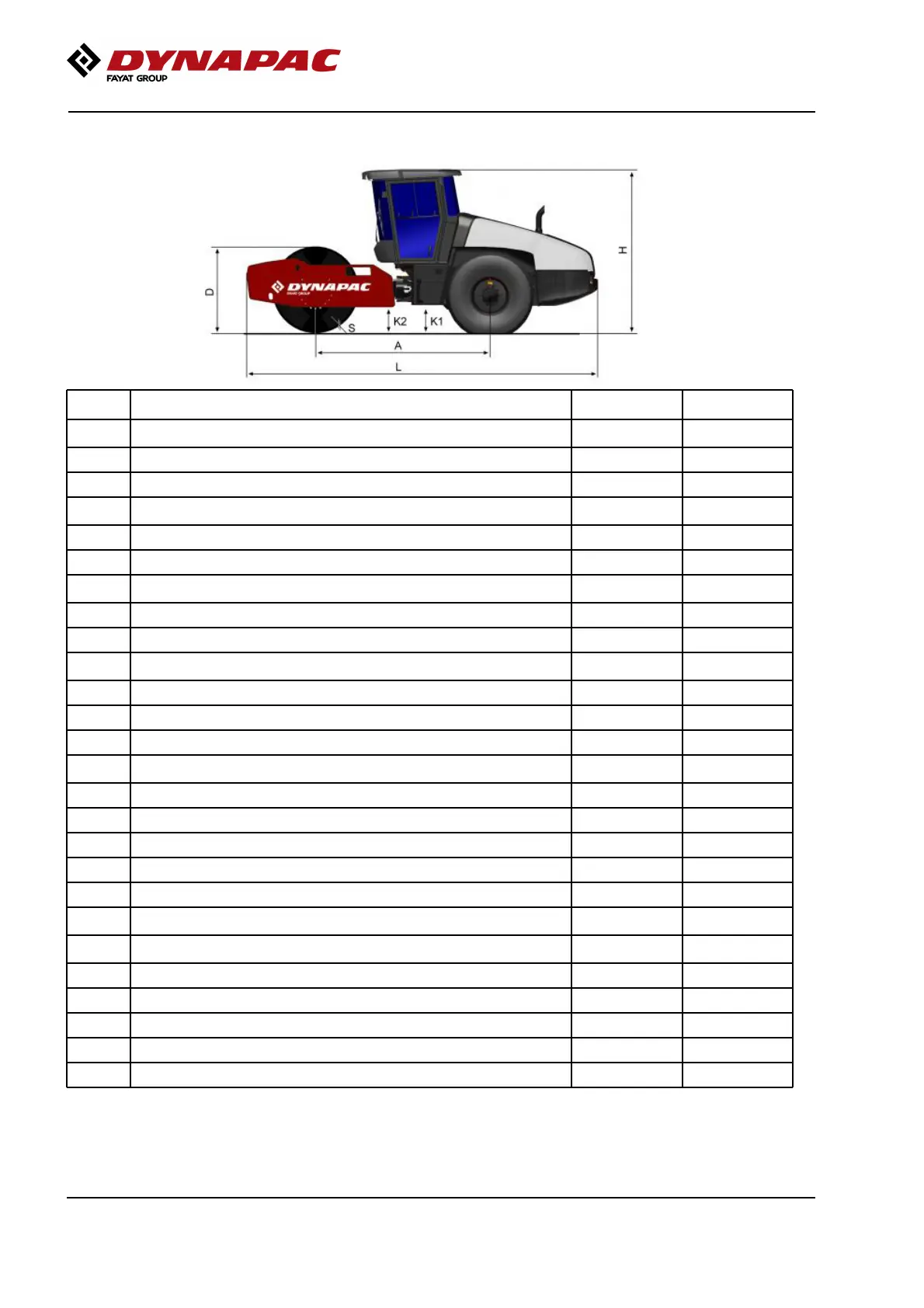

Dimensions, side view
Dimensions mm inDimensions mm in
A Wheelbase, drum and wheelA Wheelbase, drum and wheel
CA4600 2990 118CA4600 2990 118
CA5000, CA5500, CA6000, CA6500 3100 122CA5000, CA5500, CA6000, CA6500 3100 122
L Length, standard equipped rollerL Length, standard equipped roller
CA4600 6000 236CA4600 6000 236
CA5000, CA5500, CA6000, CA6500 6240 246CA5000, CA5500, CA6000, CA6500 6240 246
H Height, with ROPS/cabH Height, with ROPS/cab
CA4600 2870 113CA4600 2870 113
CA5000, CA5500, CA6000, CA6500 2890 114CA5000, CA5500, CA6000, CA6500 2890 114
D Diameter, drum (D)D Diameter, drum (D)
CA4600 1518 60CA4600 1518 60
CA5000 1536 60.5CA5000 1536 60.5
CA5500, CA6000, CA6500 1546 60.9CA5500, CA6000, CA6500 1546 60.9
D Diameter, drum (PD)D Diameter, drum (PD)
CA4600 1498 59CA4600 1498 59
CA5000, CA5500, CA6000, CA6500 1518 59.8CA5000, CA5500, CA6000, CA6500 1518 59.8
S Thickness, drum amplitude, Nominal (D)S Thickness, drum amplitude, Nominal (D)
CA4600 34 1.3CA4600 34 1.3
CA5000 43 1.7CA5000 43 1.7
CA5500, CA6000, CA6500 48 1.9CA5500, CA6000, CA6500 48 1.9
S Thickness, drum amplitude, Nominal (PD)S Thickness, drum amplitude, Nominal (PD)
CA4600 24 1.0CA4600 24 1.0
CA5000, CA5500, CA6000, CA6500 34 1.3CA5000, CA5500, CA6000, CA6500 34 1.3
P Height, pads (PD) 102 4.0P Height, pads (PD) 102 4.0
K1 Clearance, tractor frame 450 18K1 Clearance, tractor frame 450 18
K2 Clearance, drum frame 450 18K2 Clearance, drum frame 450 18
