Machine description
4812163801.pdf2019-04-30
Electricity for Urea system

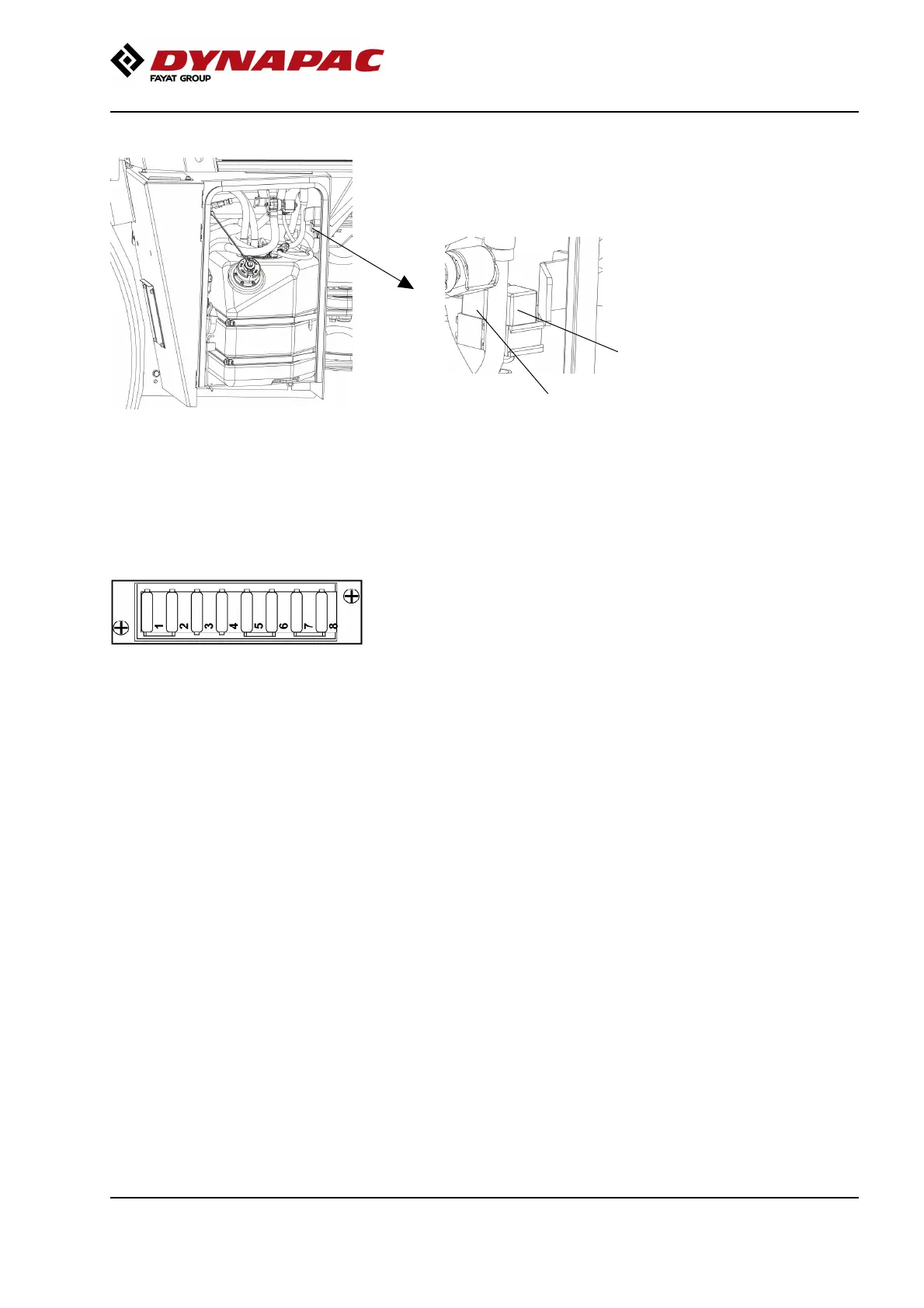

Fig. Cover, right-hand side
The relays (1 and 2) are located inside the door on the
right side of the roller.
1
2
1. Line heater relay (K36)
2. DEF supply relay (K37)
Fuses in cab
Fig. Cab roof fuse box (F7)
1. Interior lighting 10A1. Interior lighting 10A
2. Windscreen wiper/washers 10A2. Windscreen wiper/washers 10A
3. Cab fan 15A3. Cab fan 15A
4. Reserve4. Reserve
5. Reserve5. Reserve
6. Reserve6. Reserve
7. Reserve7. Reserve
8. Reserve8. Reserve
The electrical system in the cab has a separate fuse
box located on the front right side of the cab roof.
The figure shows fuse amperage and function.
All fuses are flat pin fuses.
